RF Switches
Review RF Switches RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MASW-000553-13220GIC RF SWITCH SP3T 70GHZ DIE |
3,062 |
|
Datasheet | - | Die | Bulk | Active | ISM | - | SP3T | 50MHz ~ 70GHz | 31dB | 0.8dB | 50GHz | - | - | - | - | 5V | -55°C ~ 125°C | - | - | Surface Mount | Die |
|
MASW-002102-13580WIC RF SWITCH SPDT 18GHZ DIE |
2,173 |
|
Datasheet | HMIC™ | Die | Tray | Active | ISM | - | SPDT | 2GHz ~ 18GHz | 40dB | 1.2dB | 18GHz | - | - | - | 50Ohm | - | -65°C ~ 125°C | - | - | - | Die |
|
|
MASW-007071-0001TRIC RF SWITCH SPDT 4GHZ 32QFN |
3,719 |
|
Datasheet | - | 32-PowerVFQFN | Tape & Reel (TR) | Active | General Purpose | Absorptive | SPDT | DC ~ 4GHz | 30dB (min) | 1.8dB (max) | 4GHz | 29dBm | 46dBm | - | 50Ohm | 4.5V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 32-PQFN (4x6) |
|
|
MASW-007073-000100IC RF SWITCH |
1,850 |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MASWCC0010IC RF SWITCH SP4T 4GHZ 36QFN |
2,606 |
|
Datasheet | - | 36-VFQFN Exposed Pad, CSP | Tube | Active | General Purpose | Absorptive | SP4T | 0Hz ~ 4GHz | 38dB (min) | 2.3dB (max) | 4GHz | 27dBm | 40dBm | - | 50Ohm | 4.5V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 36-PQFN, CSP (4x7) |
|

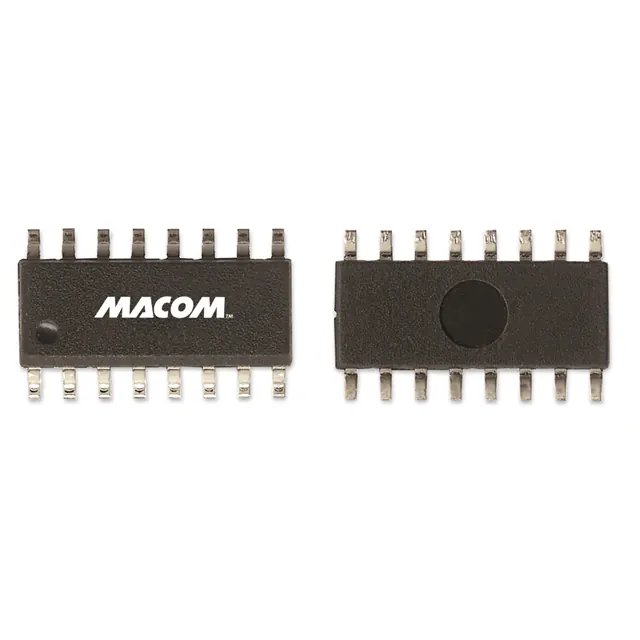

MASW-007072-000100IC RF SWITCH SPDT 3GHZ 16SOIC |
2,483 |
|
Datasheet | - | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | General Purpose | Absorptive | SPDT | 0Hz ~ 3GHz | 24dB | 1.2dB | 3GHz | 30dBm | 46dBm | - | 50Ohm | 4.5V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 16-SOIC |
|
|
MASW-007076-000100IC RF SWITCH SPST 3GHZ 24SOIC |
3,597 |
|
Datasheet | - | 24-SOIC (0.295", 7.50mm Width) | Bulk | Active | General Purpose | Absorptive | SPST | DC ~ 3GHz | 42dB | 1.8dB | 3GHz | 27dBm | 46dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 24-SOIC |
|
MASW-007074-000100IC RF SWITCH SP3T 3GHZ 24SOIC |
3,889 |
|
Datasheet | - | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | General Purpose | Absorptive | SP3T | 0Hz ~ 3GHz | 32dB | 2dB | 3GHz | 27dBm | 46dBm | - | 50Ohm | 4.5V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 24-SOIC |
|
MASW-007071-000100IC RF SWITCH SPDT 4GHZ 32QFN |
4,069 |
|
Datasheet | - | 32-PowerVFQFN | Tube | Active | General Purpose | Absorptive | SPDT | 0Hz ~ 4GHz | 30dB (min) | 1.8dB (max) | 4GHz | 29dBm | 46dBm | - | 50Ohm | 4.5V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 32-PQFN (4x6) |
|
MASW-004103-13650PIC RF SWITCH SP4T 20GHZ |
2,417 |
|
Datasheet | - | Module | Tape & Reel (TR) | Active | - | - | SP4T | 50MHz ~ 20GHz | 32dB | 1.2dB | 20GHz | - | 64dBm | - | 50Ohm | - | -65°C ~ 125°C | - | - | - | - |
Frequently Asked Questions
What are RF Switches components used for?
RF Switches components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Switches part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Switches parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
