RF Shields
Explore RF Shields parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Height - Overall | Length - Overall | Width - Overall | Ventilation | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS263-20SRF SHIELD 0.780"X1.035" SOLDER |
2,473 |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Shield, 1-Piece | 0.319" (8.10mm) | 1.035" (26.30mm) | 0.780" (19.80mm) | Non-Vented | Solder |
|
|
36905266SWE-SHC SHIELDING CABINET 26.21 X |
172 |
|
Datasheet | WE-SHC | Tape & Reel (TR) | Active | Cover | 0.200" (5.08mm) | - | - | Vent Holes in Pattern | Snap Fit |
|
|
MS473-10FRF SHIELD 0.917"X1.862" SOLDER |
1,382 |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Frame | 0.209" (5.30mm) | 1.862" (47.30mm) | 0.917" (23.30mm) | - | Solder |
|
|
MS434-10SRF SHIELD 1.118"X1.709" SOLDER |
889 |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Shield, 1-Piece | 0.130" (3.30mm) | 1.709" (43.40mm) | 1.118" (28.40mm) | Non-Vented | Solder |
|
|
MS473-10SRF SHIELD 0.917"X1.862" SOLDER |
703 |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Shield, 1-Piece | 0.209" (5.30mm) | 1.862" (47.30mm) | 0.917" (23.30mm) | Non-Vented | Solder |
|
|
MS410-10CRF SHIELD 1.063X1.638" SNAP FIT |
461 |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Cover | 0.122" (3.10mm) | 1.638" (41.60mm) | 1.063" (27.00mm) | Non-Vented | Snap Fit |
|
|
MS270-10SRF SHIELD 0.787"X1.063" SOLDER |
442 |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Shield, 1-Piece | 0.236" (6.00mm) | 1.063" (27.00mm) | 0.787" (20.00mm) | Non-Vented | Solder |
|
|
MS270-10FRF SHIELD 0.787"X1.063" SOLDER |
382 |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Frame | 0.236" (6.00mm) | 1.063" (27.00mm) | 0.787" (20.00mm) | - | Solder |
|
|
MS593-10FRF SHIELD 0.811"X2.335" SOLDER |
402 |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Frame | 0.118" (3.00mm) | 2.335" (59.30mm) | 0.811" (20.60mm) | - | Solder |
|

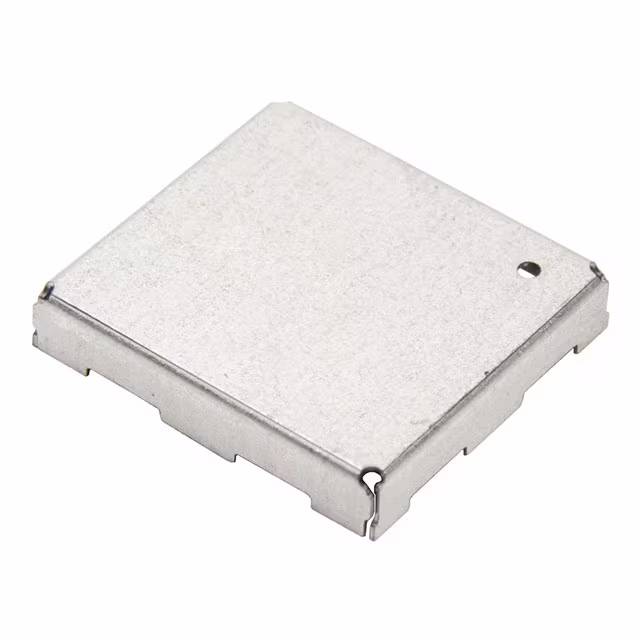

SMS-301RF SHIELD 0.5" X 0.538" SMD |
5,200 |
|
Datasheet | - | Tape & Reel (TR) | Active | Cover | 0.100" (2.54mm) | 0.538" (13.67mm) | 0.500" (12.70mm) | Vented | Surface Mount |
|
|
MS453-10SRF SHIELD 0.638"X1.783" SOLDER |
1,263 |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Shield, 1-Piece | 0.236" (6.00mm) | 1.783" (45.30mm) | 0.638" (16.20mm) | Non-Vented | Solder |
|
|
MS353-10SRF SHIELD 0.787"X1.390" SOLDER |
1,169 |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Shield, 1-Piece | 0.252" (6.40mm) | 1.390" (35.30mm) | 0.787" (20.00mm) | Non-Vented | Solder |
|
|
MS353-10FRF SHIELD 0.787"X1.390" SOLDER |
922 |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Frame | 0.252" (6.40mm) | 1.390" (35.30mm) | 0.787" (20.00mm) | - | Solder |
|
|
MS483-10SRF SHIELD 1.744"X1.902" SOLDER |
816 |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Shield, 1-Piece | 0.157" (4.00mm) | 1.902" (48.30mm) | 1.744" (44.30mm) | Non-Vented | Solder |
|
|
MS260-10SRF SHIELD 0.906"X1.024" SOLDER |
589 |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Shield, 1-Piece | 0.307" (7.80mm) | 1.024" (26.00mm) | 0.906" (23.00mm) | Non-Vented | Solder |
|
MS631-10CRF SHIELD 1.413X2.500" SNAP FIT |
959 |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Cover | 0.098" (2.50mm) | 2.500" (63.50mm) | 1.413" (35.90mm) | Non-Vented | Snap Fit |
|
|
MS323-30SRF SHIELD 0.937"X1.272" SOLDER |
925 |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Shield, 1-Piece | 0.354" (9.00mm) | 1.272" (32.30mm) | 0.937" (23.80mm) | Non-Vented | Solder |
|
|
MS513-10CRF SHIELD 1.067X2.043" SNAP FIT |
853 |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Cover | 0.138" (3.50mm) | 2.043" (51.90mm) | 1.067" (27.10mm) | Non-Vented | Snap Fit |
|
|
MS382-10CRF SHIELD 1.335X1.527" SNAP FIT |
379 |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Cover | 0.118" (3.00mm) | 1.527" (38.80mm) | 1.335" (33.90mm) | Non-Vented | Snap Fit |
|
|
MS293-20SRF SHIELD 0.642"X1.154" SOLDER |
363 |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Shield, 1-Piece | 0.382" (9.70mm) | 1.154" (29.30mm) | 0.642" (16.30mm) | Non-Vented | Solder |
Frequently Asked Questions
What are RF Shields components used for?
RF Shields components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Shields part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Shields parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
