RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Y4066RF ANT 418MHZ YAGI N FEM BRKT MT |
2,848 |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 418MHz | 406MHz ~ 430MHz | Yagi, 6-Element | 1 | 1.5 | - | 10.2dBd | - | - | N Type Female | - | - | - | Bracket Mount | 44.000" (111.76cm) | - |
|
|
6GK58956ML000AA0IRC ANTENNA ANT895-6ML |
1,180 |
|
Datasheet | - | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | - | - | 3dBi | - | - | N Type Female | IP67 | - | - | Magnetic | 2.008" (51.00mm) | GPS |
|

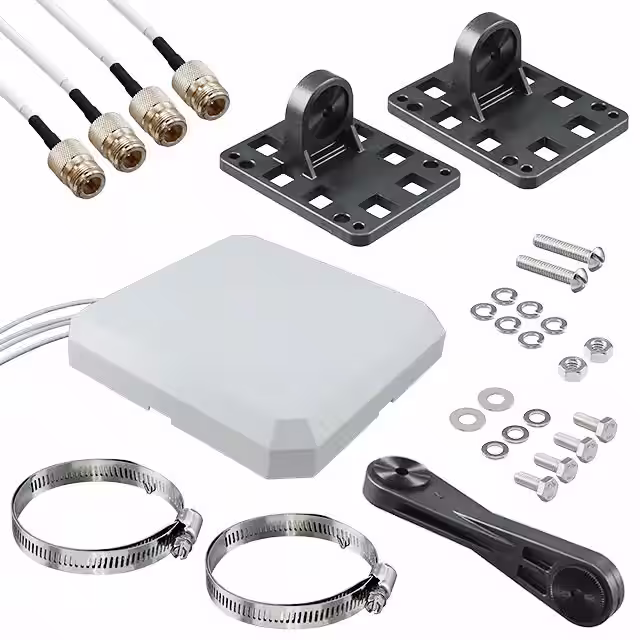

PDQ24496-91NFRF ANT 2.4/5.4GHZ PANEL N 91CM |
4,356 |
|
Datasheet | - | Bulk | Active | WiFi | Wide Band | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.95GHz | Panel | 2 | 2 | - | 6.4dBi | - | - | N Type Female | IP67 | - | - | Bracket Mount | 1.614" (41.00mm) | Wi-Fi |
|
|
HG2414DP-3NFANTPANEL 2.4GHZ 14DBI |
1,243 |
|
Datasheet | HG | Bag | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Panel | 1 | 1.5 | - | 14dBi | 10 W | - | N Type Female (3) | - | - | - | Mast Mount | 0.980" (24.89mm) | 802.11b/g/n, Wi-Fi, WiMax, WLAN |
|
|
FMANOM1051ANTENNA TYPE N JACK 423 MHZ-443 |
4,145 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 423MHz ~ 443MHz | Whip, Straight | 1 | 1.5 | - | 8dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 23.600" (599.44mm) | General Purpose |
|
|
FMANLP1012ANTENNA TYPE N JACK 698 MHZ-4.2 |
3,999 |
|
Datasheet | - | Bag | Active | Cellular, WiFi | Wide Band | 2.449GHz | 698MHz ~ 4.2GHz | Panel | 1 | 1.7 | - | 11dBi | 100 W | Cable - 200mm | N Type Female | - | - | - | Bracket Mount | 16.100" (408.94mm) | 3G, 4G, 5G, 802.11a/b/g/n/ac/ad/ah/ax, CBRS, GSM, IoT, LoRa, LPWAN, LTE-M, M2M, NB-IoT, Wi-Fi, WLAN |
|
|
FMANKIT1011ANTENNA KIT 8 DBI 20 FT LOW LOSS |
2,558 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 914MHz | 900MHz ~ 928MHz | Whip, Straight | 1 | 1.6 | - | 8dBi | 50 W | Cable - 6.09m | N Type Female | - | - | - | Bracket Mount | 57.300" (145.54cm) | IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M |
|
SA24-90-17-WBRF ANT 2.4GHZ PANEL N FEM BRKT |
3,793 |
|
Datasheet | - | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.3GHz ~ 2.7GHz | Panel | 1 | 1.5 | - | 17dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 2.520" (64.00mm) | Wi-Fi, WiMax™ |
|
|
GPS-17751GNSS MULTI-BAND L1/L2 SURVEYING |
2,293 |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.238GHz, 1.585GHz | 1.198GHz ~ 1.278GHz, 1.555GHz ~ 1.615GHz | Dome | 2 | 2 | - | 5dBi, 5dBi | - | LNA | TNC Female | IP67 | - | - | Screw Mount | 2.185" (55.50mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
|
Y4303RF ANT 440MHZ YAGI N FEM BRKT MT |
3,085 |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 440MHz | 430MHz ~ 450MHz | Yagi, 3-Element | 1 | 1.5 | - | 7.1dBd | - | - | N Type Female | - | - | - | Bracket Mount | 20.157" (512.00mm) | - |
|
|
MA931.W.A.LBICGH.001GUARDIAN MA931.W 6-IN-1 ADHESIVE |
3,546 |
|
Datasheet | Guardian | Box | Active | Cellular, Navigation, WiFi | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.575.42GHz,1.561098GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 3.45GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.563GH, 1.574GHz ~ 1.575GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz | Module | 12 | 2, 3 | 10dB | 3.18dBi, 3.6dBi, 2.14dBi, 3dBi, 1.98dBi, 3.01dBi, 3.98dBi, 4.37dBi, 4.37dBi, 4.35dBi, 3.7dBi, 4.49dBi, 4.84dBi | - | Cable - 1m, LNA, Filter | RP-SMA Male | IP67 | - | - | Adhesive | 0.787" (20.00mm) | Beidou, DCS, Galileo, GLONASS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
|
|
PAL90209H-FNFRF ANT 915MHZ PANEL N FEM CHASS |
3,475 |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Panel | 1 | 1.3 | - | 9dBic | 10 W | - | N Type Female | IP67 | - | - | Chassis Mount | 1.320" (33.53mm) | - |
|
|
1399.32.00151399.32.0015 |
1,740 |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 2.192GHz, 3.75GHz, 4.75GHz, 5.575GHz | 1.695GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.5GHz ~ 5GHz, 5.15GHz ~ 6GHz | Module | 4 | 1.5 | - | 4.5dBi, 4.5dBi, 6dBi, 6.5dBi | - | - | N Type Female (2) | - | - | - | Chassis Mount | 1.260" (32.00mm) | General Purpose |
|
|
SA24-120-16-WBRF ANT 2.4GHZ PANEL N FEM BRKT |
1,273 |
|
Datasheet | - | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.3GHz ~ 2.7GHz | Panel | 1 | 1.5 | - | 16dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 2.520" (64.00mm) | Wi-Fi, WiMax™ |
|
|
PCTHPDLTEWIFI-SF-1MANTENNA, MULTIBAND, DUAL LTE-MSM |
4,146 |
|
Datasheet | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FMANFP1028ANTENNA TNC PLUG 902 MHZ-928 MHZ |
3,913 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Panel | 1 | 1.3 | - | 10dBi | 20 W | Cable - 2m | RP-TNC Male | - | - | - | Connector Mount | 1.180" (29.97mm) | General Purpose |
|
|
FMANKIT1031ANTENNA KIT 6 DBI 20 FT LOW LOSS |
2,128 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 850MHz | 824MHz ~ 876MHz | Whip, Straight | 1 | 1.5 | - | 6dBi | 100 W | Cable - 6.09m | N Type Female | - | - | - | Bracket Mount | 22.200" (563.88mm) | IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M |
|
|
GPSTMG-HR-26NMSCLGPS TIMING ANT, 26 DB, HR, RED C |
1,899 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GPS-TMG-HR-26NMSCLGPS TIMING ANT, 26 DB, HR, RED C |
2,113 |
|
Datasheet | GPS-TMG-HR-26N | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 1.5 | - | 3.5dBic | - | LNA | N Type Female | - | - | - | Bracket Mount | 5.000" (127.00mm) | GNSS, GPS |
|
|
HG245806U-4RSPANTOMNI 2.4/5GHZ 6DBI |
3,870 |
|
Datasheet | HG | Bag | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | - | Dome | 2 | - | - | 6dBi, 6dBi | - | - | RP-SMA | - | - | - | Bracket Mount | 4.000" (101.60mm) | 802.11a/b/g/n/ac, ISM, UNII |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
