RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-418-CW-RHRF ANT 418MHZ WHIP STR RP-SMA ML |
534 |
|
Datasheet | RH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 413MHz ~ 423MHz | Whip, Straight | 1 | 1.9 | - | -6.7dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.008" (51.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
TG.19.0112RF ANT 892MHZ/1.9GHZ WHIP RA SMA |
147 |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Whip, Right Angle | 2 | 2.3 | -10dB | 0dBi, 1.2dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 0.307" (7.80mm) | CDMA, GSM |
|
ANT-2.4-CW-HW-SMARF ANT 2.4GHZ WHIP STR SMA MALE |
452 |
|
Datasheet | HW | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.3GHz ~ 2.6GHz | Whip, Straight | 1 | 2 | - | 3.2dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.724" (120.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
MIKROE-3372WIFI RUBBER ANTENNA |
248 |
|
Datasheet | - | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.5 | - | 9dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 11.614" (295.00mm) | Wi-Fi |
|
MIKROE-3371LTE RUBBER ANTENNA |
224 |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 800MHz, 900MHz, 1.8GHz, 2.1GHz, 2.6GHz | 700MHz ~ 2.7GHz | Whip, Tilt | 5 | 3 | - | 5dBi | 20 W | - | SMA Male | - | - | - | Connector Mount | 8.268" (210.00mm) | 3G, 4G, LTE |
|
FXUWB10.01.0100CULTRA WIDE BAND FLEX ANTENNA 3.1 |
655 |
|
Datasheet | - | Bag | Active | - | SHF (f > 4GHz) | 4.05GHz, 7.1GHz, 9.25GHz | 3.1GHz ~ 5GHz, 6GHz ~ 8.2GHz, 8.2GHz ~ 10.3GHz | FlexPIFA | 3 | 1.8, 2.2, 3 | - | 4.8dBi, 5.9dBi, 7.1dBi | 10 W | Cable - 100mm | SMA Male | - | - | - | Surface Mount | 0.004" (0.10mm) | UWB |
|
X9001248-4GMSMB3000L4G/CELLULAR MAGNET MOUNT EXTERNA |
1,875 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Straight | 2 | - | -5.8dB, -5.2dB | -0.5dBi, -0.2dBi | - | Cable - 3m | SMA Male | IP65 | - | - | Magnetic | 3.228" (82.00mm) | 2G, 3G, LoRa, LTE Cat 1, LTE-M, M2M, NB-IoT, SigFox |
|
DBA6927C1-FSMAMRF ANT 698-960MHZ/1.71-2.7GHZ |
3,216 |
|
Datasheet | - | Bulk | Active | Cellular, WiFi | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Blade, Tilt | 2 | 2.5 | - | 0.5dBi, 2.2dBi | 3 W | - | SMA Male | - | - | - | Connector Mount | 9.016" (229.00mm) | AWS, GSM, LTE, PCS, UMTS, WiMax™ |
|
ANT-5GWWS5-SMARF ANT 617MHZ-6GHZ 5G TILT SMA |
257 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.9475GHz, 2.495GHz, 3.75GHz, 4.7GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Blade, Tilt | 10 | 1.7, 1.9, 2, 2.1, 2.3, 2.4, 2.5, 2.8, 4.5 | - | 1.4dBi, 1.1dBi, 1.1dBi, 2.3dBi, 2.8dBi, 8.5dBi, 9.9dBi, 5.4dBi, 4dBi, 5.1dBi | 30 W | - | SMA Male | - | - | - | Connector Mount | 7.130" (181.10mm) | 2G, 3G, 4G, 5G, LTE |
|

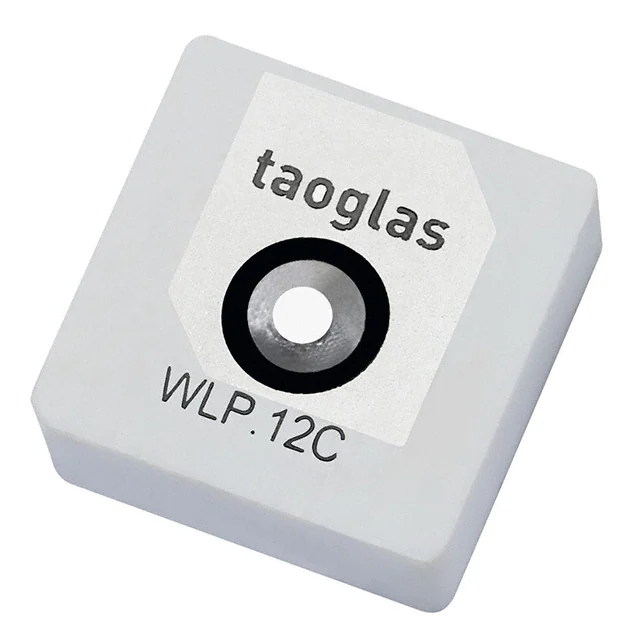

WLP.4958.12.4.A.02RF ANT 5.4GHZ CER PATCH PIN SMD |
263 |
|
Datasheet | - | Tray | Active | 802.15.4, WiFi | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.825GHz | Ceramic Patch | 1 | 1.5 | - | 6dBic | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | WLAN, Zigbee™ |
|
ANT-2.4-CW-HW-TRF ANT 2.4GHZ WHIP STR RP-SMA ML |
475 |
|
Datasheet | HWT-T | Bag | Active | Bluetooth | UHF (2GHz ~ 3GHz) | 2.475GHz | 2.35GHz ~ 2.6GHz | Whip, Straight | 1 | 2 | - | 3.2dBi | - | - | RP-SMA Female | - | - | - | Connector Mount | 4.724" (120.00mm) | General Purpose |
|
AFAG3030-SG3ANTENNA GNSS FLEX 100MM IPEX |
2,507 |
|
Datasheet | AFAG | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.585GHz | 1.55GHz ~ 1.62GHz | PCB Trace | 1 | 2.5 | - | 2dBi ~ 3dBi | 3 W | Cable - 100mm | I-PEX | - | - | - | Adhesive | 0.008" (0.20mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
ANT-916-CW-QW-SMARF ANT 916MHZ WHIP STR SMA MALE |
195 |
|
Datasheet | CW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 800MHz, 900MHz, 915MHz | 865MHz ~ 965MHz | Whip, Straight | 1 | 1.9 | - | 1.8dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.150" (80.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-DB1-VDP-RPSRF ANT 892MHZ/1.85GHZ FLAT BAR |
451 |
|
Datasheet | VDP | Bulk | Active | - | Wide Band | 892MHz, 1.85GHz, 2.45GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 2.4GHz ~ 2.48GHz | Flat Bar | 3 | 1.5, 1.9, 1.9 | - | -1.8dBi, -1.7dBi, -1.3dBi | - | Cable - 3m | RP-SMA Male | - | - | - | Adhesive | 0.177" (4.50mm) | - |
|
|
ST1326-30-001-ARF ANTENNA STICK SMA PLUG WIDE B |
403 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 825MHz, 1.945GHz, 2.495GHz, 4.575GHz | 690MHz ~ 960MHz, 1.72GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5.85GHz | Whip, Straight | 4 | - | - | 5.1dBi, 3.9dBi, 4dBi, 3.2dBi | 2 W | - | SMA | - | - | - | Connector Mount | 5.945" (151.00mm) | 4G, LTE |
|
|
YG0035AAMAGGNSS L1&B1&G1 ACTIVE 3M SMAM |
521 |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz | - | Dome | 2 | 2 | - | 1.5dBi, 1.5dBi | - | Cable - 3m, LNA | SMA Male | IP64 | - | - | Magnetic | 0.673" (17.10mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
APAMSJ-137RF ANT 5GHZ WHIP STR SMA MALE |
275 |
|
Datasheet | APAMS | Bulk | Active | WiFi | SHF (f > 4GHz) | 5GHz | 4.9GHz ~ 5.9GHz | Whip, Straight | 1 | 3 | - | 5dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.732" (44.00mm) | WLAN |
|
ANT-W63-MON-SMARF ANT WIFI6/6E HINGED WHIP SMA |
657 |
|
Datasheet | MON | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt/Swivel | 3 | 2.4, 2.3, 2 | -7.7dB, -8.1dB, -9.5dB | 3.2dBi, 4.2dBi, 3.4dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 2.835" (72.00mm) | 802.11, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi6, Wi-Fi6E, WLAN, ZigBee |
|
ANT-2.4-PW-QW-UFLRF ANT 2.4GHZ WHIP STR CAB PAN |
963 |
|
Datasheet | PW | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.6GHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | Cable - 216mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 4.134" (105.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
GW.15.2113RF ANT 2.4GHZ WHIP TILT SMA MALE |
1,862 |
|
Datasheet | - | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.8 | - | 2dBi | 1 W | - | SMA Male | IP65 | - | - | Connector Mount | 4.272" (108.50mm) | Bluetooth, WLAN |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
