RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

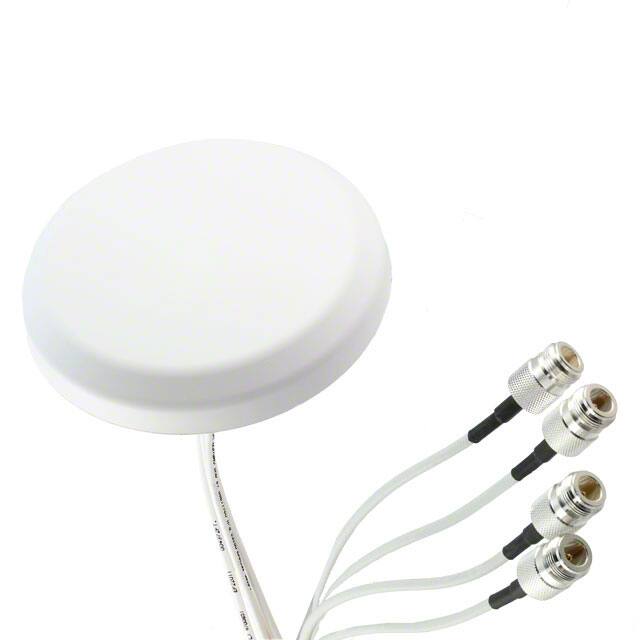

CMQ23496-91NFRF ANT 2.5/5.4GHZ DOME CAB 91MM |
4,083 |
|
Datasheet | - | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.5GHz, 5.4GHz | 2.3GHz ~ 2.7GHz, 4.9GHz ~ 5.95GHz | Dome | 2 | 1.8 | - | 6.3dBi | 10 W | Cable - 91mm | N Type Female (4) | - | - | - | Panel Mount | 1.260" (32.00mm) | WLAN |
|
CMD69273-B30NFOMNI DBAND 300MM NF |
4,698 |
|
Datasheet | - | Bulk | Active | Cellular, WiFi | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.3GHz, 2.4GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Module | 8 | 2 | - | - | - | Cable - 305mm | N Type Female | - | - | - | Panel Mount | 1.713" (43.50mm) | LTE, WiMax™, WLAN |
|
|
HG2458MGRD-RSPANTMAGMNT 2.4/5GHZ |
2,242 |
|
Datasheet | HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.441GHz, 5.525GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.9GHz | Whip, Straight | 2 | 2 | - | 3dBi, 5dBi | - | Cable - 1.524m | RP-SMA | - | - | - | Magnetic | 10.100" (256.54mm) | 802.11a/b/g/n, Bluetooth, ISM, Wi-Fi, WiMax |
|
|
S9025PLRTN902-928MHZ 5DBI LH FIXED RP-TNCF |
4,114 |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
S8240BRF ANT 860MHZ WHIP STR BRKT MT |
4,844 |
|
Datasheet | - | Bulk | Obsolete | WiFi | UHF (300MHz ~ 1GHz) | 860MHz | 824MHz ~ 896MHz | Whip, Straight | 1 | 1.5 | - | 0dBd | 5 W | Cable - 432mm | N Type Female | - | - | - | Bracket Mount | 17.520" (445.00mm) | WiMax™ |
|
GPS-14987GPS/GNSS EMBEDDED ANTENNA SMA 1M |
2,878 |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.586GHz | 1.558GHz ~ 1.615GHz | Ceramic Patch | 3 | - | - | 4dB | - | Cable - 1m, LNA | SMA | - | - | - | Surface Mount | 0.354" (9.00mm) | Beidou, GLONASS, GNSS, GPS |
|
|
CLS69273P-30NFRF ANT 700MHZ/850MHZ MODULE CAB |
2,858 |
|
Datasheet | - | Bulk | Active | Cellular, WiFi | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz | 698MHz ~ 960MHz, 1.695GHz ~ 2.7GHz | Module | 8 | 1.8, 1.6, 1.7, 1.9, 1.9, 1.9, 1.7, 1.5, 1.3 | - | 3dBi, 3dBi, 4.1dBi, 5.6dBi, 7dBi, 7dBi, 6.7dBi, 7.3dBi | 50 W | Cable - 305mm | N Type Female | - | - | - | Panel Mount | 1.870" (47.50mm) | DCS, GSM, LTE, UMTS, WiMax™ |
|
|
MMC/P3EMPLANT MAG MT WHP ENC 4DB 824-185 |
4,657 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.92GHz | 824MHz ~ 960MHz, 1.85GHz ~ 1.99GHz | Whip, Straight | 2 | - | -10dB | 4dBi | 7 W | Cable - 304.8mm | MPL | - | - | - | Magnetic | 5.000" (127.00mm) | - |
|
|
MMC/P3EFMEANT MAG MT WHP ENC 4DB 824-185 |
1,713 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.92GHz | 824MHz ~ 960MHz, 1.85GHz ~ 1.99GHz | Whip, Straight | 2 | - | -10dB | 4dBi | 7 W | Cable - 304.8mm | FME | - | - | - | Magnetic | 5.000" (127.00mm) | - |
|
|
MMC/P3ETNCANT MAG MT WHP ENC 4DB 824-185 |
1,593 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.92GHz | 824MHz ~ 960MHz, 1.85GHz ~ 1.99GHz | Whip, Straight | 2 | - | -10dB | 4dBi | 7 W | Cable - 304.8mm | TNC | - | - | - | Magnetic | 5.000" (127.00mm) | - |
|
|
YA9-13RF ANT 900MHZ YAGI CAB BRKT 10" |
1,828 |
|
Datasheet | NLOS | Bulk | Active | WiFi | UHF (300MHz ~ 1GHz) | 900MHz | 860MHz ~ 960MHz | Yagi, 15-Element | 1 | 1.5 | - | 13dBi | 100 W | Cable - 457mm | N Type Female | - | - | - | Bracket Mount | 57.000" (144.78cm) | WiMax™ |
|
|
NMO150BHWANT HW COIL-WHP 2.4DB 144-174 |
3,361 |
|
Datasheet | - | Bag | Active | - | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | - | -10dB | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 51.500" (130.81cm) | - |
|
|
FMMAROM1006ANTENNA UHF JACK 0.0245 MHZ-0.02 |
2,320 |
|
Datasheet | - | Bag | Active | General ISM | VHF (f < 300MHz) | 27MHz | 24.5MHz ~ 29.5MHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | UHF Female | - | - | - | Bracket Mount | 0.056" (1.43mm) | General Purpose |
|
|
LCMAROM100624.5 - 29.5 MHZ OMNI MARINE ANTE |
4,518 |
|
Datasheet | - | Bulk | Active | General ISM | VHF (f < 300MHz) | 27MHz | 24.5MHz ~ 29.5MHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | UHF Female | IP67 | - | - | Bracket Mount | 0.056" (1.43mm) | General Purpose |
|
|
NMO420CHWANT HW COIL-WHP 5.5DB 420-440 |
2,631 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 430MHz | 420MHz ~ 440MHz | Whip, Straight | 1 | - | -10dB | 5.5dBi | 200 W | - | UHF | - | - | - | Magnetic | 35.500" (901.70mm) | - |
|
|
NMO406CHWANT HW COIL-WHP 5.5DB 406-440 |
2,602 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 413MHz | 406MHz ~ 420MHz | Whip, Straight | 1 | - | -10dB | 5.5dBi | 200 W | - | UHF | - | - | - | Magnetic | 35.500" (901.70mm) | - |
|
|
1324.19.00021324.19.0002 |
4,118 |
|
Datasheet | - | Bulk | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.3GHz ~ 2.5GHz | Module | 1 | 1.5 | - | 8.5dBi | - | - | SMA Female | - | - | - | Chassis Mount | 3.976" (101.00mm) | 802.11b/g, WiMax, WLAN |
|
|
8111D-HR-5M-QMAGPS/GLONASS/QZSS/GALILEO HIGH RE |
3,783 |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.584GHz | 1.561GHz ~ 1.608GHz | Module | 1 | 1.5 | - | 3dBic | - | Cable - 5m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | - | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
FMANLP1011ANTENNA TYPE N JACK 5.725 MHZ-5. |
1,563 |
|
Datasheet | - | Bag | Active | Cellular, WiFi | SHF (f > 4GHz) | 5.787GHz | 5.725GHz ~ 5.85GHz | Panel | 1 | 1.5 | - | 16dBi | 100 W | Cable - 231.14mm | N Type Female | - | - | - | Bracket Mount | 15.800" (401.32mm) | 5G, 802.11a/n/ac/ah/ax, IoT, LoRa, LPWAN, LTE-M, M2M, NB-IoT, Wi-Fi, WLAN |
|
|
S24493TS36RSMRF ANT 2.4/5.4GHZ PANEL CAB 36" |
3,468 |
|
Datasheet | - | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Panel | 2 | 2 | - | 3dBi, 4dBi | 2 W | Cable - 914mm | RP-SMA Male | - | - | - | Bracket Mount | 0.866" (22.00mm) | Wi-Fi, WLAN |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
