RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GPSDM06ANT BLK GPS DIR MNT 17' RG174 |
1,756 |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Dome | 1 | - | -10dB | 5dBi, 28dBi | - | Cable - 431.8mm | SMB | - | - | - | - | 0.070" (1.78mm) | GPS |
|
TRA8063PRF ANT 836MHZ DOME N FEM PAN MT |
3,773 |
|
Datasheet | Phantom® | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 836MHz | 806MHz ~ 866MHz | Dome | 1 | 2 | - | 3dBi | 150 W | - | N Type Female | - | - | - | Panel Mount | 2.700" (68.58mm) | GSM |
|
CFS60383P-30D43FRF ANT PANEL DIN FEMALE PAN MT |
4,596 |
|
Datasheet | CBRS | Bulk | Active | - | Wide Band | - | - | Panel | 5 | 1.8 | - | 6.8dBi | 50 W | - | 4.3/10 - Female | - | - | - | Panel Mount | 0.299" (7.60mm) | - |
|
CFSA69383P-30D43FRF ANT 829MHZ/1.45GHZ FLAT PNL N |
2,661 |
|
Datasheet | CBRS | Bulk | Active | Cellular, WiFi | Wide Band | 829MHz, 1.45GHz, 2.75GHz | 698MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 3.8GHz | Flat Panel | 3 | 2 | - | 5.8dBi | 50 W | - | N Type Female | - | - | - | Panel Mount | 0.299" (7.60mm) | GSM, LTE, WiMax™ |
|
|
FM51224ANTENNA 4.3-10 JACK 617 MHZ-6 GH |
2,517 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 788.5MHz, 1.45GHz, 2.195GHz, 3.55GHz, 5.45GHz | 617MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | Dome | 5 | 1.8 | - | 2.2dBi, 3.5dBi, 4.5dBi, 6dBi, 6dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | 4.3/10 - Female | - | - | - | Ceiling Mount | 0.710" (18.03mm) | 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
|
|
HG2409MGRD-RTPANTRUBBER DUCK 2.4GHZ MAGMNT |
3,602 |
|
Datasheet | HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.5 | - | 9dBi | 50 W | Cable - 1.524m | RP-TNC | - | - | - | Magnetic | 16.600" (421.64mm) | 802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
RE905U-TMANTOMNI 800-900MHZ 5DBI |
1,460 |
|
Datasheet | RE | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 900MHz | - | Whip, Straight | 1 | - | - | 5dBi | - | Cable - 1.2192m | TNC | - | - | - | Magnetic | 7.200" (182.88mm) | GSM, ISM, LoRa, LPWAN |
|
|
HG-PCGM01-03FJANTGPS/CELLULAR/3G/LTE |
3,495 |
|
Datasheet | HG | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HG2458MGRD-RTPANTMAGMNT 2.4/5GHZ |
4,097 |
|
Datasheet | HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.441GHz, 5.525GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.9GHz | Whip, Straight | 2 | 2 | - | 3dBi, 5dBi | - | Cable - 127mm | RP-TNC | - | - | - | Magnetic | 10.100" (256.54mm) | 802.11a/b/g/n, Bluetooth, ISM, Wi-Fi, WiMax |
|

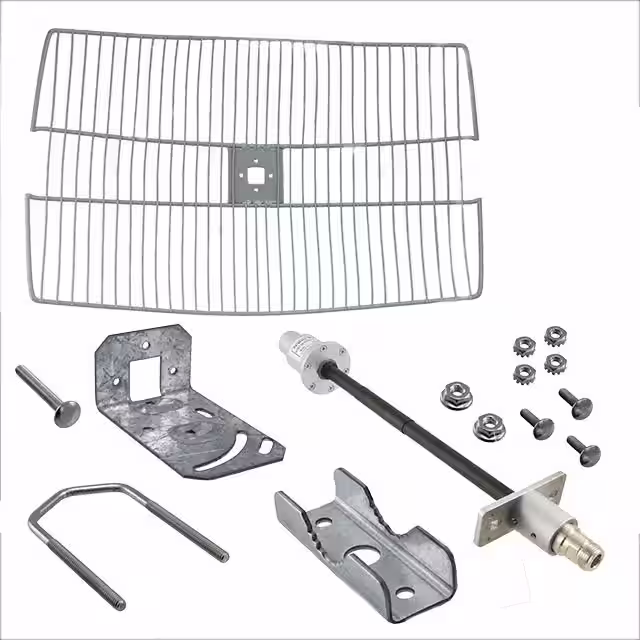

GD57-25RF ANT 5.7GHZ GRID N FEM BRKT MT |
4,999 |
|
Datasheet | - | Bulk | Obsolete | WiFi | SHF (f > 4GHz) | 5.7GHz | 5.47GHz ~ 5.725GHz | Parabolic Grid | 1 | 1.5 | - | 25dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 24.000" (609.60mm) | WiMax™, WLAN |
|
SG103N-2450RF ANT 2.4GHZ WHIP STR N FEM |
3,703 |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 8.5dBi | - | - | N Type Female | - | - | - | Connector Mount | 23.622" (600.00mm) | - |
|
WM.80.B.305111RF ANT 169MHZ WHIP STR SMA MALE |
2,520 |
|
Datasheet | Cyclops | Box | Active | - | VHF (f < 300MHz) | 169MHz | - | Whip, Straight | 1 | - | - | 0dBi | 50 W | - | SMA Male | IP67 | - | - | Bracket Mount | 10.945" (278.00mm) | - |
|
|
OSCAR42B/X/NTYPEF/S/S/194G/LTE OMNI ANTENNA 1/4DBI GAIN |
4,492 |
|
Datasheet | OSCAR 42B | Bulk | Active | Cellular | Wide Band | 830MHz, 2.2GHz | 700MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Whip, Straight | 2 | 3.7 | - | 1dBi, 4dBi | - | - | N Type Female | - | - | - | Base Mount | 11.811" (300.00mm) | 2G, 3G, 4G, GPRS |
|
3997D-HRRF ANT 1.575GHZ MODULE MCX SCREW |
1,900 |
|
Datasheet | - | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Module | 1 | 1.9 | - | 3dBic, -2dBic | - | LNA, Filter | MCX | - | - | - | Stud, Through Hole | 0.528" (13.42mm) | 2G, 3G, 5G, Cellular, GNSS, GPS, LTE |
|
|
HG110TEL-BNCANT 0 DBI TELESCOPIC PORTABLE AN |
3,023 |
|
Datasheet | HG | Bag | Active | General ISM | VHF (f < 300MHz) | 146MHz | 118MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 0dBi | 10 W | - | BNC | - | - | - | Connector Mount | 8.400" (213.36mm) | General Purpose |
|
WAN05RSPRF ANT 2.4GHZ WHIP TILT RP-SMA |
4,415 |
|
Datasheet | - | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Tilt | 1 | - | - | 9dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | - | - |
|
|
FMANLP1009ANTENNA TYPE N JACK 2.3 MHZ-2.5 |
4,009 |
|
Datasheet | - | Bag | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.3GHz ~ 2.5GHz | Panel | 1 | 1.5 | - | 10dBi | 100 W | Cable - 300mm | N Type Female | - | - | - | Bracket Mount | 5.900" (149.86mm) | 3G, 4G, 5G, 802.11a/b/g/n/ac/ad/ah/ax, CMDA, IoT, LoRa, LPWAN, LTE, LTE-M, M2M, NB-IoT, Wi-Fi |
|
|
FMANLP1008ANTENNA TYPE N JACK 1.92 MHZ-2.1 |
1,798 |
|
Datasheet | - | Bag | Active | Cellular, WiFi | Wide Band | 2.045GHz | 1.92GHz ~ 2.17GHz | Panel | 1 | 1.5 | - | 10dBi | 100 W | Cable - 238.76mm | N Type Female | - | - | - | Bracket Mount | 5.900" (149.86mm) | 3G, 4G, 5G, CMDA, GSM, IoT, LoRa, LPWAN, LTE, LTE-M, M2M, NB-IoT, Wi-Fi |
|
|
3917D-230CM-TNC3917, 230 CM RG-174 SIZE, TNC MA |
3,964 |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Module | 1 | - | - | 3dBic | - | Cable - 230mm, LNA, Filter | SMA Male | IP67 | - | - | Magnetic, Screw | 0.535" (13.60mm) | GPS |
|
|
CRS150RF ANT 162MHZ WHIP STR UHF FEM |
1,429 |
|
Datasheet | - | Bulk | Obsolete | - | VHF (f < 300MHz) | 162MHz | 150MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 2dBi | - | - | UHF Female | - | - | - | Bracket Mount | 44.882" (114.00cm) | - |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
