RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B4503SRF ANT 460MHZ WHIP STR NMO BASE |
3,155 |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 2 | - | 3dBi | - | - | NMO | - | - | - | Base Mount | 13.000" (330.20mm) | - |
|
2108855-1ACTIVE ANT.,SMA,5M,L1+G1 & L2+L5 |
3,821 |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.209GHz, 1.5845GHz | 1.164GHz ~ 1.255GHz, 1.559GHz ~ 1.61GHz | Flat Patch | 2 | 1.3 | - | 22.4dBic ~ 31.3dBic, 25.8dBic ~ 26.7dBic | - | LNA, Filter | RP-SMA Female | - | - | - | Magnetic | 0.886" (22.50mm) | GNSS |
|
|
MWV1322HDBASE LOADED-WB FIELD TUNE VHFUHF |
4,638 |
|
Datasheet | MWV | Bag | Active | - | VHF (f < 300MHz) | 153MHz | 132MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 1dBi, 2.4dBi | 150 W | - | - | - | - | - | Base Mount | 48.000" (121.92cm) | - |
|
|
BB8965CNRF ANT 933MHZ WHIP STR NMO BASE |
2,730 |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 933MHz | 896MHz ~ 970MHz | Whip, Straight | 1 | - | - | 5dBi | - | - | NMO | IP67 | - | - | Base Mount | - | - |
|
|
MLBDC4700S47-50,UNITY,DC GND,W/SPR,CHR |
2,736 |
|
Datasheet | MLB | Bulk | Active | General ISM | VHF (f < 300MHz) | 48.5MHz | 47MHz ~ 50MHz | Whip, Straight | 1 | 1.5 | - | 1dBi | 200 W | - | - | - | - | - | Threaded | 52.000" (132.10cm) | General Purpose |
|
|
MLBDC3700S37-40,UNITY,DC GND,W/SPR,CHR |
4,488 |
|
Datasheet | MLB | Bulk | Active | General ISM | VHF (f < 300MHz) | 38.5MHz | 37MHz ~ 40MHz | Whip, Straight | 1 | 1.5 | - | 1dBi | 200 W | - | - | - | - | - | Threaded | 52.000" (132.10cm) | General Purpose |
|
|
B1323SRF ANT 153MHZ WHIP STR NMO BASE |
1,236 |
|
Datasheet | - | Bulk | Active | - | VHF (f < 300MHz) | 153MHz | 132MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 3dBi | - | - | NMO | IP67 | - | - | Base Mount | 59.000" (149.86cm) | - |
|
|
FMAN51165ANTENNA SMA JACK 880 MHZ-960 MHZ |
3,713 |
|
Datasheet | - | Bag | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TLS.20.1F21RF ANT 450MHZ WHIP STR N FEM PAN |
1,859 |
|
Datasheet | Shockwave | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 450MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | - | -3dB | -1.8dBi | 100 W | - | N Type Female | IP67, IP69K | - | - | Panel Mount | 3.128" (79.45mm) | CDMA |
|
|
MUF4505NGPSBASE LOADED -NO GROUND PLANE UHF |
1,157 |
|
Datasheet | MUF NGP | Bag | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 1.5 | - | 5dBi | 200 W | - | - | - | - | - | Magnetic | 33.000" (838.20mm) | - |
|
DA-915-01SLEEVE DIPOLE ANTENNA |
3,210 |
|
Datasheet | - | Box | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | - | 1 | - | - | 2.5dBi | 500 mW | - | - | - | - | - | Connector Mount | - | - |
|
|
FM51RD1032ANTENNA SMA PLUG 617 MHZ-5.85 GH |
3,578 |
|
Datasheet | - | Bag | Active | Bluetooth, Cellular, WiFi | Wide Band | 3.233GHz | 617MHz ~ 5.85GHz | Whip, Tilt | 1 | 3.5 | - | 2dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Male | - | - | - | Connector Mount | 5.300" (134.62mm) | 4G, 5G, Bluetooth, IoT, LTE, Wi-Fi, Zigbee™ |
|
|
8161D-HRGNSS, HR, 26DB, EMBEDDED, 15CM, |
3,259 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

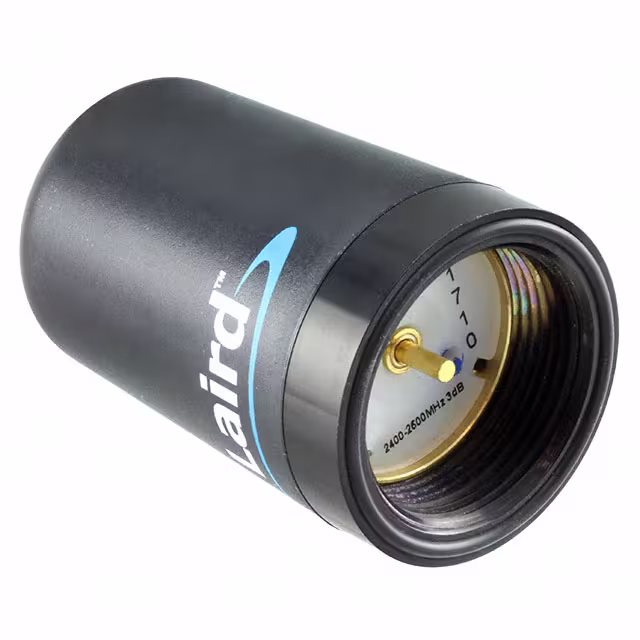

TRAB24003NRF ANT 2.4GHZ DOME NMO BASE 2.7" |
4,562 |
|
Datasheet | Phantom® | Bulk | Obsolete | Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 2 | - | 3dBi | 100 W | - | NMO | - | - | - | Base Mount | 2.300" (58.42mm) | GSM, Wi-Fi |
|
|
LCSMA1007-50PK2400 - 2500 MHZ 2.3 DBI, STAMPED |
4,036 |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | - | 2.3dBi | 1 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Surface Mount | 0.070" (1.78mm) | 802.11b/g/n, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
LCSMA1000-50PK2400 - 2500 MHZ 2 DBI, STAMPED M |
1,491 |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | - | 2dBi | 1 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Surface Mount | 0.010" (0.25mm) | 802.11a/b/g/n/ac, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
LCSMA1005-50PK2400 - 2500 & 5150 - 5825 MHZ 2 |
2,350 |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.487GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz | Stamped Metal | 2 | 2 | - | 2dBi, 3dBi | 1 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Surface Mount | 0.100" (2.54mm) | 802.11a/b/g/n/ac, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
LCSMA1002-50PK2400 - 2500 MHZ 2 DBI, STAMPED M |
2,278 |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | - | 2dBi | 1 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Surface Mount | 0.160" (4.06mm) | 802.11b/g/n, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
LCSMA1004-50PK2400 - 2500 MHZ 2 DBI, STAMPED M |
3,341 |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | - | 2dBi | 1 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Surface Mount | 0.085" (2.16mm) | 802.11b/g/n, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
3917D-3M-SMC3917, 3M RG-174, SMC PLUG |
4,870 |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Module | 1 | - | - | 3dBic | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic, Screw | 0.535" (13.60mm) | GPS |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
