RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AN_W415MASWELL WIFI ANTENNA HIGH GAIN |
4,609 |
|
Datasheet | - | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.44GHz | 2.4GHz ~ 2.4835GHz | Whip, Tilt | 1 | 2 | - | 7dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 10.000" (254.00mm) | Wi-Fi | |
|
FMANRBD1030ANTENNA SMA JACK 400 MHZ-470 MHZ |
3,988 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 435MHz | 400MHz ~ 470MHz | Whip, Straight | 1 | 1.5 | - | 2.5dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Connector Mount | 3.100" (78.74mm) | General Purpose |
|
|
LCANRBD1015136 - 174 MHZ, RUBBER DUCK ANTEN |
1,112 |
|
Datasheet | LCAN | Bulk | Active | General ISM | VHF (f < 300MHz) | 155MHz | 136MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 1.8dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | TNC Male | - | - | - | Connector Mount | 6.100" (154.94mm) | General Purpose |
|
|
SPHL10FTANT SP HELIC 1-4W TUNABLE 1-4- |
4,600 |
|
Datasheet | - | Bag | Active | - | VHF (f < 300MHz) | 178.5MHz | 136MHz ~ 221MHz | Helical | 1 | - | - | - | - | - | MX | - | - | - | Connector Mount | 8.000" (203.20mm) | - |
|
|
HG2405RD-1-RSPANT 2.4GHZ 5.5DBI RP SMA |
2,662 |
|
Datasheet | HG | Bag | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | 2 | - | 4.52dBi | 10 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | RP-SMA Male | - | - | - | Connector Mount | 7.717" (196.00mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
FM51RD1020ANTENNA SMA PLUG 2.4 MHZ-2.5 GHZ |
2,510 |
|
Datasheet | - | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 2dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | RP-SMA Male | - | - | - | Connector Mount | 4.315" (109.60mm) | 802.11b/g/n/x, Bluetooth, IoT, ISM, Wi-Fi, WLAN |
|
EXC450SMRF ANT 460MHZ WHIP STR SMA MALE |
3,565 |
|
Datasheet | EXC | Bulk | Active | Bluetooth, WiFi | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 1.5 | - | - | 50 W | - | SMA Male | - | - | - | Connector Mount | 6.900" (175.26mm) | Bluetooth, Wi-Fi |
|
|
BGMNCPGM, 12 FT 58U, CR N, BLK |
1,296 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

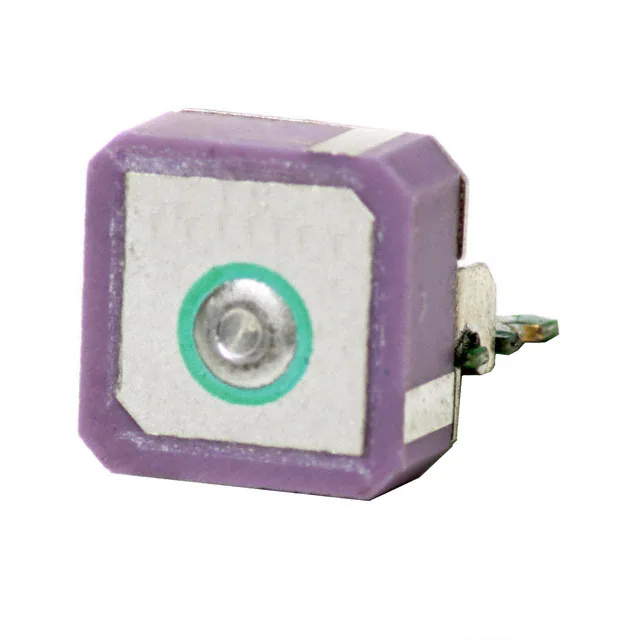

AP.10C.01RF ANT 1.575GHZ CER PATCH SLD |
2,784 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 2 | - | -3dBic | - | LNA | Solder | - | - | - | Surface Mount | 0.177" (4.50mm) | GPS |
|

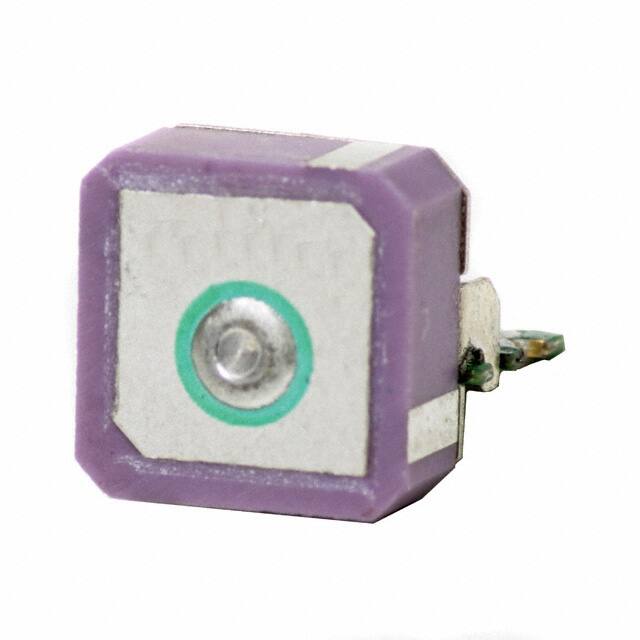

AP.10D.01RF ANT 1.575GHZ CER PATCH SLD |
1,035 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | -3dBic | - | LNA | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|
|
318020068RF ANT 5.75GHZ DOME SMA MALE |
3,823 |
|
Datasheet | - | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.75GHz | 2.4GHz ~ 2.5GHz, 5.7GHz ~ 5.8GHz | Dome | 2 | 2 | - | 5dBi, 5dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 1.378" (35.00mm) | General Purpose |
|
|
MUF4502BASE LOADED ISM ANTENNAS |
3,010 |
|
Datasheet | MUF | Bag | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 1.5 | - | 1dBi, 2.4dBi | 200 W | - | - | - | - | - | Base Mount | 17.000" (431.80mm) | - |
|
GPSIM15RF ANT 1.575GHZ MOD CAB CHAS MT |
2,580 |
|
Datasheet | - | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | - | - | 2.5dBi | - | Cable - 1.5m | SMA Male | - | - | - | Chassis Mount | 0.250" (6.35mm) | GPS |
|
TANGO3/3M/SMAM/S/S/31RF ANT 900MHZ/1.8GHZ WHIP STR |
2,873 |
|
Datasheet | - | Bulk | Active | - | Wide Band | 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Straight | - | 2 | - | 3dBi | - | - | SMA Male | - | - | - | Through Hole | 2.992" (76.00mm) | - |
|
EXD470MXRF ANT 491MHZ WHIP STR MX CONN |
1,625 |
|
Datasheet | EXD | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 491MHz | 470MHz ~ 512MHz | Whip, Straight | 1 | 1.5 | - | - | - | - | MX | - | - | - | Connector Mount | 3.600" (91.44mm) | - |
|
PE512162DBI PCB ANT 860-960MHZ UMCX |
3,180 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 910MHz | 860MHz ~ 960MHz | PCB Trace | 1 | 3 | - | 2dBi | - | Cable - 76.2mm | U.FL (UMCX), I-PEX | - | - | - | Surface Mount | 0.060" (1.52mm) | LPWAN, ISM |
|
|
HGV-4907UANTOMNI 4.9GHZ 7DBI |
2,506 |
|
Datasheet | HGV | Bag | Active | WiFi | SHF (f > 4GHz) | 4.95GHz | 4.9GHz ~ 5GHz | Whip, Straight | 1 | 2 | - | 7dBi | 100 W | - | N Type Female | - | - | - | Ceiling Mount, Wall Mount | 14.000" (355.60mm) | 802.11a, Wi-Fi, WLAN |
|
|
HG2402RDR-RSPANTRUBBER DUCK 2.4GHZ 2DBI |
2,658 |
|
Datasheet | HG | Bag | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 2dBi | - | - | RP-SMA | - | - | - | Connector Mount, Magnetic | 3.130" (79.50mm) | 802.11a/b/g/n, ISM, Wi-Fi, WLAN |
|
BB-ACH2-AT-DP003-GRF ANT 2.4GHZ WHIP TILT RP-SMA |
4,770 |
|
Datasheet | AirborneM2M™ | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Tilt | 1 | - | - | 5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 8.189" (208.00mm) | - |
|
|
ANT4050JB01BGN25AANT GNSS+L2+L STACK |
2,875 |
|
Datasheet | 4050 | Box | Active | Navigation | Wide Band | 1.176GHz, 1.2276GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 5 | 3 | - | 3dBic, 0.57dBic, 2.96dBic, 3.69dBic, 1.71dBic | - | Cable - 100mm, LNA, Filter | I-PEX | - | - | - | Connector Mount | 0.520" (13.20mm) | GNSS |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
