RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECHO11/0.1M/IPEX/S/S/12RF ANT 2.4GHZ PCB TRACE IPEX SMD |
2,373 |
|
Datasheet | ECHO 11 | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.6 | - | 2.6dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|
YE0027AAEXTERNAL CELLULAR ANTENNA |
4,794 |
|
Datasheet | - | Bag | Active | Cellular | UHF (2GHz ~ 3GHz) | 2.8495GHz | 699MHz ~ 5GHz | Whip, Straight | 1 | 5 | - | 2dBi | - | - | SMA Male | IP55 | - | - | Magnetic | 8.701" (221.00mm) | 5G |
|
ANT-433WPIG-2SMARF ANT 433MHZ WHIP STR SMA MALE |
3,855 |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | 2 | - | 2dBi | - | Cable - 200mm | SMA Male | - | - | - | Panel Mount | 2.362" (60.00mm) | General Purpose |
|
PC81.07.0100A.DBRF ANT 869MHZ PCB TRACE IPEXI |
3,890 |
|
Datasheet | TheStripe™ | Bag | Active | - | UHF (300MHz ~ 1GHz) | 869MHz | 868MHz ~ 870MHz | PCB Trace | 1 | 2 | -10dB | - | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.307" (7.80mm) | - |
|
110991765INDOOR ANTENNA KIT/860-930MHZ/3D |
4,133 |
|
Datasheet | - | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 895MHz | 860MHz ~ 930MHz | Whip, Straight | 1 | 2.2 | - | 3dBi | - | Cable - 1m | RP-SMA Male | IP65 | - | - | Connector Mount | 11.614" (295.00mm) | LoRa |
|
710399RF ANT 739MHZ BLADE SMA MALE ADH |
2,887 |
|
Datasheet | SmartBlade | Box | Active | Cellular | Wide Band | 739MHz, 875MHz, 1.4685GHz, 1.94GHz, 2.445GHz, 3.6GHz | 698MHz ~ 780MHz, 790MHz ~ 960MHz, 1.427GHz ~ 1.51GHz, 1.71GHz ~ 2.17GHz, 2.2GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz | Blade | 6 | 2, 2.2, 3 | - | 1.5dBi, 2.5dBi, 3dBi, 4.5dBi, 5.5dBi, 2.5dBi | 10 W | Cable - 500mm | SMA Male | IP65 | - | - | Adhesive | 0.173" (4.40mm) | 2G, 3G, 4G, 5G, LTE |
|
MIKE1A/2.5M/FMEF/S/S/20RF ANT 850MHZ/900MHZ WHIP STR |
4,399 |
|
Datasheet | MIKE 1A | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Straight | 5 | 1.5 | - | 3dBi | - | - | FME Female | - | - | - | Magnetic | 1.339" (34.00mm) | GPRS, GSM, UMTS |
|
FXP810.09.0100CRF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
1,766 |
|
Datasheet | Freedom | Bag | Not For New Designs | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Flat Patch | 2 | 1.7 | - | 2.4dBi, 5.1dBi | 2 W | Cable - 100mm | MMCX Male | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi |
|

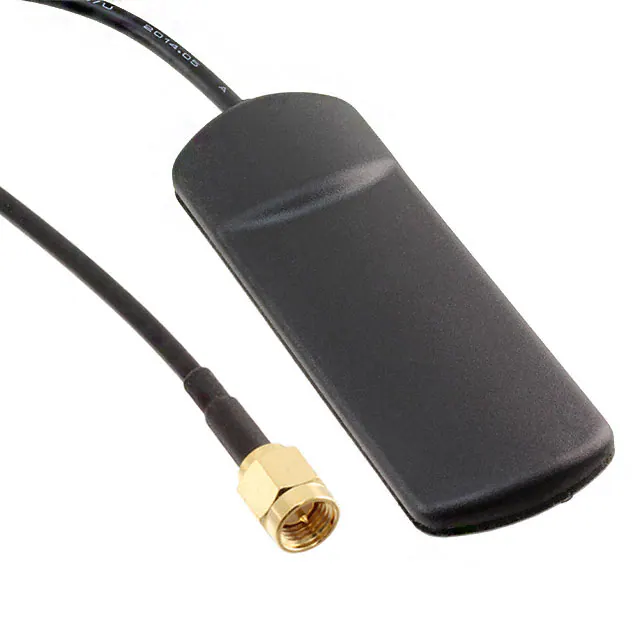

ALPHA3A/3M/SMAM/S/S/26RF ANT 850MHZ/868MHZ BLADE SMA |
3,168 |
|
Datasheet | ALPHA 3A | Bulk | Active | 802.15.4, Bluetooth, Cellular, WiFi | Wide Band | 850MHz, 868MHz, 900MHz, 915MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | - | Blade | 8 | 2 | - | 3dBi | - | - | SMA Male | - | - | - | Adhesive | 0.098" (2.50mm) | Bluetooth, GPRS, GSM, UMTS, WLAN, Zigbee™ |
|
MIKE1B/0.5M/SMAM/S/S/20RF ANT 850/868MHZ WHIP STR SMA |
3,765 |
|
Datasheet | MIKE 1B | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 868MHz, 900MHz, 1.8GHz, 1.9GHz | - | Whip, Straight | 5 | 1.5 | - | 3.5dBi | - | - | SMA Male | - | - | - | Magnetic | 1.181" (30.00mm) | GPRS, GSM |
|
ANT-GPS-P20-SMARF ANT 1.575GHZ CER PATCH 2.5M |
1,542 |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 1.5 | - | 2dB | - | LNA | SMA Male | - | - | - | Surface Mount | 0.315" (8.00mm) | GPS |
|
IS.TBCONF.WIFI.2.4ANTENNA WIFI 2.4GHZ |
1,167 |
|
Datasheet | - | Box | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Right Angle | 1 | - | - | - | - | - | SMA | - | - | - | Connector Mount | 3.346" (85.00mm) | Wi-Fi |
|
1004112-B002ANTENNA ASSY, EXTERNAL LTE TNC |
1,205 |
|
Datasheet | - | Bag | Active | 802.15.4, Cellular | Wide Band | 825MHz, 1.955GHz, 2.6GHz | 690MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.5GHz ~ 2.7GHz | Whip, Tilt | 3 | 2.5 | - | 1.18dBi, 4.5dBi, 4dBi | 5 W | - | TNC Male | - | - | - | Connector Mount | 8.941" (227.10mm) | LTE, LoRa, LPWAN, Sigfox |
|
MIKE1A/5M/SMAM/S/S/20RF ANT 850/900MHZ WHIP STR SMA |
1,946 |
|
Datasheet | MIKE 1A | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Straight | 5 | 1.5 | - | 3dBi | - | - | SMA Male | - | - | - | Magnetic | 1.339" (34.00mm) | GPRS, GSM, UMTS |
|
IN24-5RD-RSMARF ANT 2.4GHZ WHIP TILT RP-SMA |
4,403 |
|
Datasheet | Rubber Duck | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.485GHz | Whip, Tilt | 1 | 1.5 | - | 5.5dBi | 10 W | - | RP-SMA Male | - | - | - | Connector Mount | 8.071" (205.00mm) | WLAN |
|
2600130083WIRL-ACCE HYDRA-I ANTENNA 868/91 |
1,066 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 868MHz ~ 928MHz | Whip, Straight | 1 | 2.5 | - | 0.9dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 7.047" (179.00mm) | ISM |
|
TA-24B-A-L01LTE TERMINAL ANTENNA |
1,268 |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 761MHz, 892MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz | 698MHz, 824MHz, 1.71GHz, 1.85GHz, 1.92GHz, 2.3GHz ~ 824MHz, 960MHz, 1.88GHz, 1.99GHz, 2.17GHz, 2.69GHz | Whip, Right Angle | 6 | 7.28, 7.28, 2, 3, 3, 3.5 | -2.4dB, -2.4dB, -10dB, -6dB, -6dB, -5dB | 3.85dBi, 2.59dBi, 4.17dBi, 4.31dBi, 4.31dBi, 3.28dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.890" (48.00mm) | LTE |
|
|
QWFTB120RF ANT 544MHZ WHIP STR NMO 24" |
3,135 |
|
Datasheet | - | Bulk | Active | - | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | 544MHz | 118MHz ~ 970MHz | Whip, Straight | 1 | - | - | 0dB | - | - | NMO | - | - | - | Base Mount | 24.000" (609.60mm) | - |
|
ANT-WD-A-RF-0305RF ANT 2.4/5GHZ BLADE RP-SMA FEM |
2,946 |
|
Datasheet | - | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | Blade, Tilt | 2 | 2 | - | 5dBi | - | - | RP-SMA Female | - | - | - | Connector Mount | 6.299" (160.00mm) | Wi-Fi |
|
ISMP.915.35.6.A.02ISM 915MHZ PATCH ANTENNA (35*35* |
1,399 |
|
Datasheet | - | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | - | Ceramic Patch | 1 | - | -10dB | 2.51dBi | - | - | Pin | - | - | - | Adhesive | 0.236" (6.00mm) | ISM, LoRa, Sigfox |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
