RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EW-21B-AC-W01EXTERNAL WIFI SCREW MOUNT EXTERN |
4,328 |
|
Datasheet | - | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Module | 1 | 2 | -10dB | 5.28dBi, 6.22dBi, 6.43dBi | - | Cable - 1.5m | RP-SMA Male | IPX7 | - | - | Adhesive | 0.846" (21.50mm) | Wi-Fi |
|
H2MA301D100100LTE MIMO EXTERNAL ANTENNA |
4,333 |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.35GHz, 2.585GHz, 3.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz | Flat Patch | 5 | 3, 5 | - | 1.1dBi, 1.2dBi, 1.4dBi, 1.5dBi, 2.4dBi, 3.1dBi, 3.2dBi | - | Cable - 2m | SMA Male | IP67 | - | - | Adhesive | 0.669" (17.00mm) | 4G, LTE |
|
H2MA003D100100GPS L1+L5 EXTERNAL ANTENNA |
4,806 |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz | - | Module | 2 | 2 | - | 2.3dBi, 3dBi | - | Cable - 2m, LNA | SMA Male | IP67 | - | - | Adhesive | 0.669" (17.00mm) | GPS |
|
H2MA703F104100ACTIVE ANTENNA HB80DF; GPS(L1+L5 |
1,982 |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Module | 4 | - | -10dB | 3.1dBi, 1.5dBi, 1.4dBi, 2dBi | - | Cable - 3m | - | - | - | - | Surface Mount | 1.000" (25.40mm) | BeiDou, Galileo, GLONASS, GPS, QZSS |
|
MT-4B-AC-BL032-IN-1 COMBO EXTERNAL ANTENNA |
3,964 |
|
Datasheet | MT-4B | Bulk | Obsolete | Cellular, Navigation | Wide Band | 761MHz, 892MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz | 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Module | 9 | 2 | -10dB | 0.15dBi, -2.17dBi, 1.21dBi, 1.21dBi, 1.44dBi, 2.52dBi, 2.71dBi, 2.71dBi, 7.93dBi | - | Cable - 5m | SMA Male | - | - | - | Screw Mount | 0.787" (20.00mm) | DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS |
|
MT-4B-AS-BL033-IN-1 COMBO EXTERNAL ANTENNA |
2,139 |
|
Datasheet | - | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 761MHz, 892MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.495GHz, 3.55GHz, 5.8GHz | 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Module | 12 | 2, 3 | -6dB, -10dB | 3.62dBi, 4.24dBi, 1.21dBi, 1.21dBi, 1.44dBi, 4.77dBi, 4.77dBi, 4.31dBi, 6.44dBi, 7.23dBi, 7.87dBi, 7.12dBi, -0.78dBi, 6.97dBi, 4.89dBi, 4.46dBi, 3.19dBi | - | Cable - 3m | SMA Male | - | - | - | Adhesive, Magnetic | 0.622" (15.80mm) | DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
|
H2MA305D1011005IN1 EXTERNAL ANTENNA GNSS + LTE |
4,968 |
|
Datasheet | - | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.35GHz, 2.442GHz, 2.59GHz, 3.6GHz, 5.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.484GHz, 2.49GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 10 | 2, 3, 5 | - | 1.1dBi, 1.2dBi, 1.4dBi, 1.5dBi, 1.8dBi, 2dBi, 2.4dBi, 2.5dBi, 2.6dBi, 3.1dBi, 3.2dBi | - | Cable - 2m, LNA | SMA Male | IP67 | - | - | Adhesive | 0.669" (17.00mm) | Beidou, Galileo, GLONASS, GPS, GNSS, LTE, Wi-Fi |
|
EG-16W-AC-B04EXTERNAL ONE PORT GNSS ANTENNA |
4,053 |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.598GHz ~ 1.606GHz | Module | 3 | 2 | - | -0.5dBic, 2dBic, 0.6dBic | - | Cable - 5m, LNA | BNC, GT5, MCX, SMA, SMB, SMC, TNC | IP67 | - | - | Threaded | 3.071" (78.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
MT-9B-AC-BLW01EXTERNAL ONE PORT GNSS ANTENNA |
2,281 |
|
Datasheet | EG-16W | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Dome | 3 | 2 | - | -0.5dBic, 2dBic, 0.6dBic | - | Cable - 5m, LNA | BNC, GT5, MCX, SMA, SMB, SMC, TNC | IP67 | - | - | Panel Mount | 3.071" (78.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

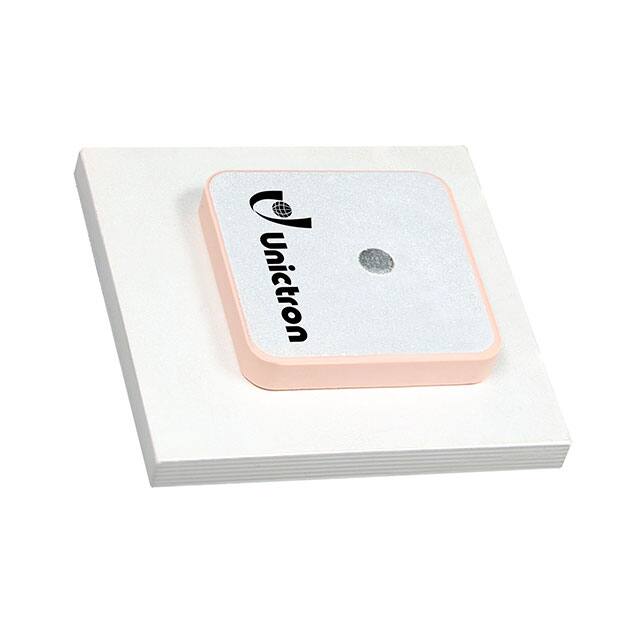

H2P1361A2B0100GPS L1+L2 STACK CERAMIC PATCH |
4,724 |
|
Datasheet | - | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.575GHz | - | Ceramic Patch | 2 | 2 | - | 3.8dBi, 5.3dBi | - | - | Pin | - | - | - | Adhesive | 0.315" (8.00mm) | GPS |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
