RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-W63RPC1-50RF ANT WIFI 6GHZ FLEX ADHES 50MM |
1,348 |
|
Datasheet | W63RPC | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Rigid Patch | 3 | 1.8, 2.1, 1.6 | -10.9dB, -9dB, -12.7dB | 3.7dBi, 6.1dBi, 5.9dBi | 5 W | Cable - 50mm | Solder | - | - | - | Adhesive | 0.051" (1.30mm) | 802.11, 802.15.4, Bluetooth, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|
ANT-2.4-FPC-SF200M4ANT 2.4 FPC 25X20 200 CBL MHF4 |
1,652 |
|
Datasheet | ANT-2.4-FPC-SF | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.9 | - | 3.9dBi | 2 W | Cable - 200mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
ANT-2.4-FPC-SH200M4ANT 2.4 FPC 25X20 200 CBL MHF4 |
4,117 |
|
Datasheet | ANT-2.4-FPC-SH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.4 | - | 4dBi | 2 W | Cable - 200mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
ANT-GNFPC-SHL1200M4RF ANT GNSS FPC L1 200MM MHF4 |
2,093 |
|
Datasheet | ANT-GNFPC-SHL1 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Flat Patch | 4 | 1.6, 1.9 | - | 3.2dBi, 3.2dBi, 2.6dBi, 2.6dBi | 2 W | Cable - 200mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
ANT-W63-FPC-SAH150M4ANT WIFI6/6E FPC SQR 150MM MHF4 |
3,139 |
|
Datasheet | ANT-W63-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 2.4, 3.4 | - | 0.6dBi, 7.2dBi, 6.3dBi | 2 W | Cable - 150mm | I-PEX MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/ac/ax, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee™ |
|
|
ANT-GNFPC-SHL150UFRF ANT GNSS FPC L1 50MM UFL |
2,153 |
|
Datasheet | ANT-GNFPC-SHL1 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Flat Patch | 4 | 1.6, 1.9 | - | 3.2dBi, 3.2dBi, 2.6dBi, 2.6dBi | 2 W | Cable - 50mm | MHF1, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
ANT-916-PMBRF ANT 916MHZ WHIP RA SCREW-MT |
4,931 |
|
Datasheet | PMB | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 916MHz | 902MHz ~ 928MHz | Whip, Right Angle | 1 | 2 | - | - | - | - | Screw-Mount | - | - | - | Panel Mount | 3.543" (90.00mm) | - |
|
|
ANT-GNFPC-SHL150M4RF ANT GNSS FPC L1 50MM MHF4 |
1,917 |
|
Datasheet | ANT-GNFPC-SHL1 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Flat Patch | 4 | 1.6, 1.9 | - | 3.2dBi, 3.2dBi, 2.6dBi, 2.6dBi | 2 W | Cable - 50mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

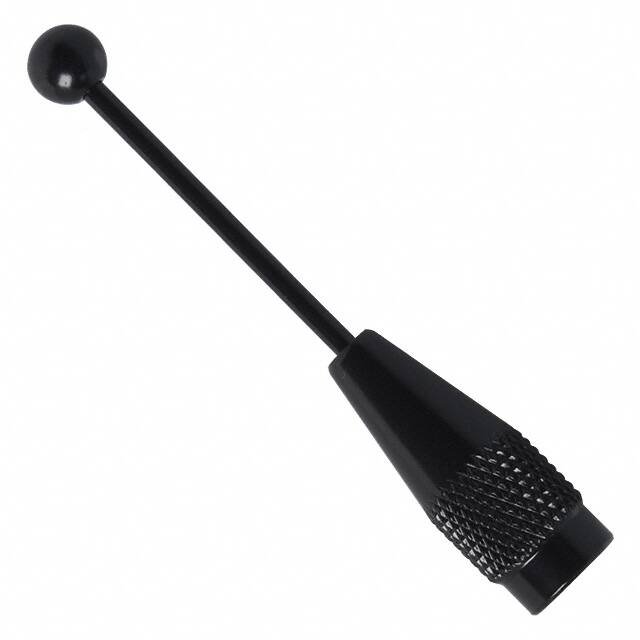

ANT-ELE-S01-010RF ANT 892MHZ/1.85GHZ WHIP STR |
2,382 |
|
Datasheet | MAG | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Whip, Straight | 2 | 1.5 | - | -3.9dBi, -1.5dBi | - | - | M5 | - | - | - | Magnetic | 2.382" (60.50mm) | - |
|
|
ANT-W63RPC1-200RF ANT WIFI 6GHZ FLEX ADHE 200MM |
1,239 |
|
Datasheet | W63RPC | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Rigid Patch | 3 | 1.8, 2.1, 1.6 | -10.9dB, -9dB, -12.7dB | 3.7dBi, 6.1dBi, 5.9dBi | 5 W | Cable - 200mm | Solder | - | - | - | Adhesive | 0.051" (1.30mm) | 802.11, 802.15.4, Bluetooth, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
