RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-5GW-FPC-LH100M4ANT 5G FPC 120X20 100MM MHF4 |
929 |
|
Datasheet | ANT-5GW-FPC-LH | Bag | Active | Cellular | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.947GHz, 2.495GHz, 3.75GHz, 4.7GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Flat Patch | 9 | 1.6, 1.7, 1.8, 1.9, 2, 2.5, 2.7, 4.7 | - | 5dBi, 5dBi, 5.5dBi, 6dBi, 5.2dBi, 5.1dBi, 7dBi, 6.2dBi, 6.8dBi | 2 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 2G, 3G, 4G, 5G, LTE |
|
ANT-ELE-S01-006RF ANT 892MHZ/1.795GHZ WHIP STR |
239 |
|
Datasheet | MAG | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | Whip, Straight | 2 | 1.5 | - | 0.5dBi, 3.7dBi | - | - | M5 | - | - | - | Magnetic | 9.180" (233.17mm) | - |
|
|
ANT-GNFPC-SHL1100M4RF ANT GNSS FPC L1 100MM MHF4 |
794 |
|
Datasheet | ANT-GNFPC-SHL1 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Flat Patch | 4 | 1.6, 1.9 | - | 3.2dBi, 3.2dBi, 2.6dBi, 2.6dBi | 2 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
ANT-2.4-FPC-SAH50M4ANT 2.4 FPC 12X8 50MM CBL MHF4 |
936 |
|
Datasheet | ANT-2.4-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 4.1 | - | 0.1dBi | 2 W | Cable - 50mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
ANT-2.4-FPC-SAH100M4ANT 2.4 FPC 12X8 100 CBL MHF4 |
961 |
|
Datasheet | ANT-2.4-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 4.1 | - | 0.1dBi | 2 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
ANT-W63-FPC-SAH100UFANT WIFI6/6E FPC SQR 100MM UFL |
1,941 |
|
Datasheet | ANT-W63-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 2.4, 3.4 | - | 0.6dBi, 7.2dBi, 6.3dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/-c/ax, Bluetooth, ISM, U-NII, Wi-Fi, Zigbee™ |
|
|
ANT-2.4-FPC-SAH100UFANT 2.4 FPC 12X8 100MM CBL UFL |
639 |
|
Datasheet | ANT-2.4-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 4.1 | - | 0.1dBi | 2 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
ANT-868-CW-RCSRF ANT 868MHZ WHIP RA RP-SMA MAL |
102 |
|
Datasheet | RCS | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 850MHz ~ 880MHz | Whip, Right Angle | 1 | 2 | - | 3.6dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.106" (53.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|

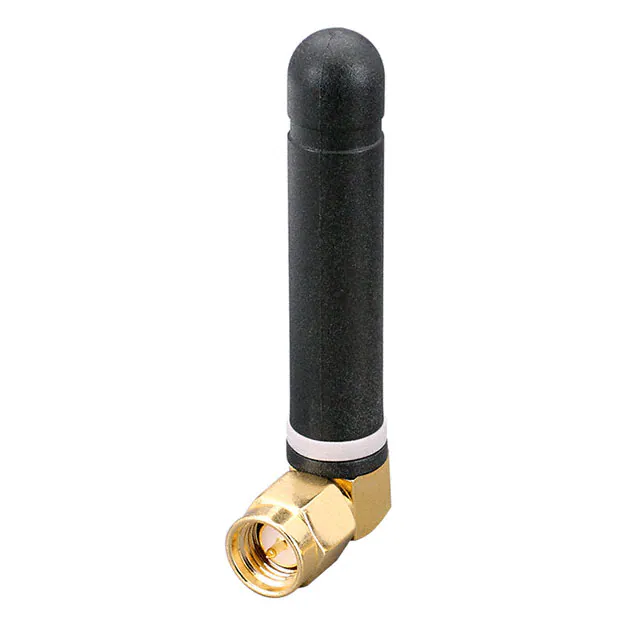

ANT-868-CW-RAH-SMARF ANT 868MHZ WHIP RA SMA MALE |
1,088 |
|
Datasheet | RAH | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 833MHz ~ 903MHz | Whip, Right Angle | 1 | 1.9 | - | 0.6dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.850" (47.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-5GMWP1-SMARF ANT 3.3GHZ-5.0GHZ 5G TILT SMA |
743 |
|
Datasheet | SMA | Bulk | Active | Cellular, Navigation | Wide Band | 3.625GHz, 3.95GHz, 4.965GHz | 3.55GHz ~ 3.7GHz, 3.7GHz ~ 4.2GHz, 4.94GHz ~ 4.99GHz | Whip, Tilt | 3 | 1.7, 2.2, 1.4 | - | 4.9dBi, 4.7dBi, 3.2dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 7.677" (195.00mm) | 5G, GPRS, LTE |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
