RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-2823599-2RF ANT 829MHZ/2.2GHZ DOME SMA |
4,537 |
|
Datasheet | - | Bulk | Obsolete | Cellular, WiFi | Wide Band | 829MHz, 2.2GHz, 5.4GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | Dome | 3 | 2.5 | - | 5dBi | 50 W | - | SMA | IP66 | - | - | Panel Mount | 2.441" (62.00mm) | LTE, WLAN |
|

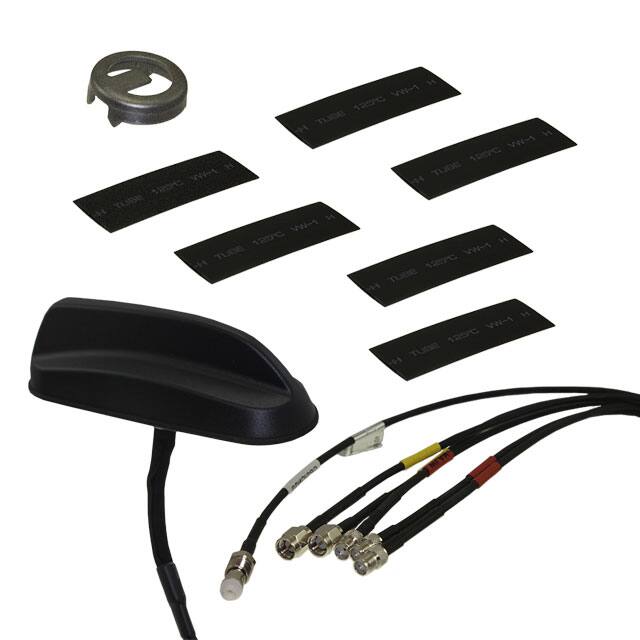

2332157-4MULTI FUNCTION MIMO ANTENNA 2G/3 |
3,956 |
|
Datasheet | - | Bulk | Obsolete | Cellular, Navigation | Wide Band | 829MHz, 1.587GHz, 1.94GHz, 2.4GHz, 3.15GHz, 5.45GHz | 698MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | Dome | 6 | 2 | - | 2dBi, 4dBi, 5dBi, 6dBi | 25 W | Cable - 300mm, LNA | FME, SMA | IP66 | - | - | Panel Mount | 1.969" (50.00mm) | 2G, 3G, 4G, Beidou, Galileo, GNSS, GPS, WLAN |
|
1-2823593-1RF ANT 829MHZ MODULE N FEM SMD |
2,514 |
|
Datasheet | - | Bulk | Obsolete | Cellular, Navigation, WiFi | UHF (300MHz ~ 1GHz) | 829MHz | 698MHz ~ 960MHz | Module | 1 | - | - | - | - | - | N Type Female | - | - | - | Surface Mount | 4.528" (115.00mm) | GPS, GSM, WiMax™, WLAN |
|
1-2823592-1RF ANT 829MHZ MOD N FEM TH |
2,577 |
|
Datasheet | - | Bulk | Obsolete | Cellular, Navigation, WiFi | UHF (300MHz ~ 1GHz) | 829MHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.61GHz, 1.71GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | Module | 1 | - | - | - | - | - | N Type Female, TNC Female | - | - | - | Through Hole | 4.055" (103.00mm) | GPS, GSM, WiMax™, WLAN |
|
1513431-2RF ANT 2.4GHZ PCB TRACE SLDR SMD |
1,428 |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | PCB Trace | 1 | 2 | - | 0dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.79mm) | Bluetooth, WLAN, Zigbee™ |
|
2118059-1RF ANT 3GHZ FLT PATCH U.FL 350MM |
4,457 |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), UHF (3GHz ~ 4GHz) | 3GHz | 2.3GHz ~ 3.8GHz | Flat Patch | 1 | 3 | - | 4dBi | 3 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.012" (0.30mm) | Bluetooth, WLAN, Zigbee™ |
|
1513349-2RF ANT 2.4GHZ PCB TRACE SLDR SMD |
3,037 |
|
Datasheet | - | Bulk | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | PCB Trace | 1 | 2 | - | 0dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | Bluetooth, WLAN, Zigbee™ |
|
2118788-1ASSY DUAL BAND WIFI 2.4/5GHZ PCB |
2,356 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | Chip | 2 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.169" (4.28mm) | General Purpose |
|
|
1513433-1RF ANT 1.9GHZ CHIP SOLDER SMD |
3,603 |
|
Datasheet | - | Bulk | Active | - | UHF (1GHz ~ 2GHz) | 1.9GHz | 1.85GHz ~ 1.99GHz | Chip | 1 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | - |
|
|
2108965-5FPC ANT, MHF 4L, 50MM, UWB 6~8.5 |
2,027 |
|
Datasheet | - | Bag | Active | Ultra Wide Band | Wide Band | 7.2GHz | 6GHz ~ 8.5GHz | Flat Patch | 1 | 2 | - | 4.2dBi | 10 W | Cable - 50mm | MHF4L | - | - | - | Adhesive | 0.006" (0.15mm) | UWB |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
