RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DP-1900RF ANT 1.9GHZ PRECISION SMA FEM |
4,620 |
|
Datasheet | DP | Bulk | Active | Cellular | UHF (1GHz ~ 2GHz) | 1.9GHz | 1.85GHz ~ 1.91GHz | Precision | 1 | - | - | - | - | - | SMA Female | - | - | - | Connector Mount | - | CDMA, GSM, PCS |
|
|
DP-2000RF ANT 2GHZ PRECISION SMA FEM |
1,556 |
|
Datasheet | DP | Bulk | Active | Cellular | UHF (1GHz ~ 2GHz) | 2GHz | 1.92GHz ~ 1.98GHz | Precision | 1 | - | - | - | - | - | SMA Female | - | - | - | Connector Mount | - | WCDMA |
|
|
DP-2400RF ANT 2.4GHZ PRECISION SMA FEM |
4,922 |
|
Datasheet | DP | Bulk | Active | Bluetooth | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | Precision | 1 | - | - | - | - | - | SMA Female | - | - | - | Connector Mount | - | Bluetooth |
|
HRN-0118RF ANT HORN N FEM BRKT MT |
4,687 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | - | Wide Band | - | 1GHz ~ 18GHz | Horn | 1 | 1.5 | - | - | 500 W | - | N Type Female | - | - | - | Bracket Mount | 5.709" (145.00mm) | - |
|
HLP-3003CRF ANT LOG PERIODIC N FEM CHASS |
1,331 |
|
Datasheet | - | Bulk | Obsolete | - | Wide Band | - | 30MHz ~ 3GHz | Log Periodic | 1 | 2 | - | 6dBi | 100 W | - | N Type Female | - | - | - | Chassis Mount | 27.165" (690.00mm) | - |
|
PBA-2030RF ANT 160MHZ BICONICAL N FEM |
2,110 |
|
Datasheet | - | Bulk | Active | - | VHF (f < 300MHz) | 160MHz | 20MHz ~ 300MHz | Biconical | 1 | 2.5 | - | - | 100 W | - | N Type Female | - | - | - | Bracket Mount | 28.346" (720.00mm) | - |
|
MBA-2060RF ANT BICONICAL SMA ML BRKT MT |
4,116 |
|
Datasheet | MB | Bulk | Active | - | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | - | 20MHz ~ 600MHz | Biconical | 1 | 2.5 | - | - | - | - | SMA Male | - | - | - | Bracket Mount | 10.827" (275.00mm) | - |
|
HBA-2030RF ANT 160MHZ BICONICAL CONN |
2,969 |
|
Datasheet | - | Bulk | Active | - | VHF (f < 300MHz) | 160MHz | 20MHz ~ 300MHz | Biconical | 1 | 2.5 | - | - | 3500 W | - | 7/16 Female | - | - | - | Bracket Mount | 54.331" (138.00cm) | - |
|
ANT8030-2R4-01ARF ANT 2.4GHZ CHIP SOLDER SMD |
1,784 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | -15dB | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, WLAN |
|

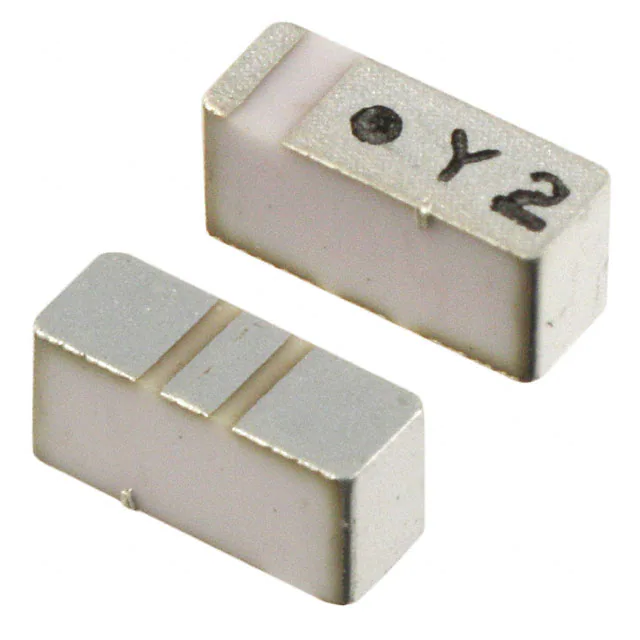

ANT040015CCS2442MA1RF ANT 2.4GHZ CHIP SOLDER SMD |
3,477 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.485GHz | Chip | 1 | 3.5 | - | 2.32dBi | - | - | Solder | - | - | - | Surface Mount | 0.073" (1.85mm) | - |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
