RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3520B039ANTENNA DVB-H PLANAR PWB 2.4GHX |
3,056 |
|
Datasheet | DVB-H Planar PWB | Tape & Reel (TR) | Obsolete | - | UHF (300MHz ~ 1GHz) | 610MHz | 470MHz ~ 750MHz | Blade | 1 | - | -3dB | -3.5dBi, -4.5dBi | - | - | MMCX | - | - | - | Connector Mount | 0.118" (3.00mm) | General Purpose |
|
|
W1047RF ANT 894MHZ WHIP TILT 6.6" |
3,970 |
|
Datasheet | - | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 894MHz | 860MHz ~ 928MHz | Whip, Tilt | 1 | 2 | - | 1dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.819" (198.60mm) | - |
|
|
W1095KRPANTENNA 2.4-2.5GHZ SMA STUB |
3,795 |
|
Datasheet | External Stubby | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | 2.5 | -7dB | 1dBi | - | - | RP-SMA Male | IP65 | - | - | Connector Mount | 1.890" (48.00mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
|
W3325ANTENNA 791-960MHZ |
1,881 |
|
Datasheet | Domino | Box | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 875.5MHz | 791MHz ~ 960MHz | Chip | 1 | - | 5dB | 1.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | ISM, LTE |
|
|
W3312G0200ANTENNA ISM 868/915MHZ W/ COAX F |
2,767 |
|
Datasheet | - | Box | Active | General ISM | UHF (300MHz ~ 1GHz) | 895.5MHz | 863MHz ~ 928MHz | PCB Trace | 1 | - | -8dB | 0.8dBi | - | Cable - 200mm | SMA Male | - | - | - | Adhesive | 2.953" (75.00mm) | ISM |
|

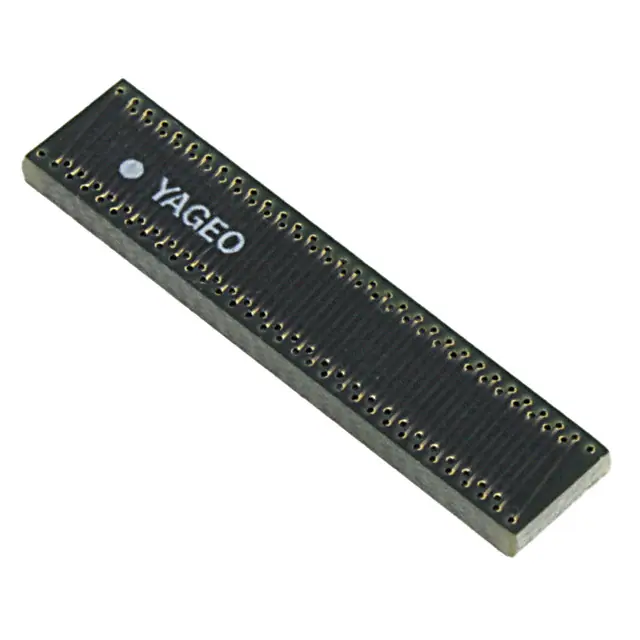

ANT2405F001R0169ARF ANT 169MHZ CHIP SOLDER SMD |
1,911 |
|
Datasheet | 2405 | Tape & Reel (TR) | Active | - | VHF (f < 300MHz) | 169MHz | 168MHz ~ 179MHz | Chip | 1 | - | -18dB | - | - | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | - |
|
|
W6102B0150ANTENNA INFRASTRUCT |
3,552 |
|
Datasheet | * | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
W320725X25X4MMGPS/GLONASS/BEIDOU PIN |
1,206 |
|
Datasheet | Ceramic Patch | Bulk | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz,1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Ceramic Patch | 3 | - | -4dB | 1dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
W3907BD0350ANTENNA TE DIVERSITY |
3,274 |
|
Datasheet | Gemini | Box | Active | Cellular | Wide Band | 829MHz, 1.4694GHz, 1.5845GHz, 1.9475GHz, 2.5GHz, 3.5GHz | 698MHz ~ 960MHz, 1.4279GHz ~ 1.5109GHz, 1.559GHz ~ 1.61GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz | PCB Trace | 6 | - | -6dB, -7.5dB | 1dBi, 1.1dBi, 1.4dBi, 2.2dBi, 2dBi, 1.4dBi | 3 W | Cable - 350mm | I-PEX MHF4 | - | - | - | Surface Mount | - | 2G, 3G, 4G, LTE |
|

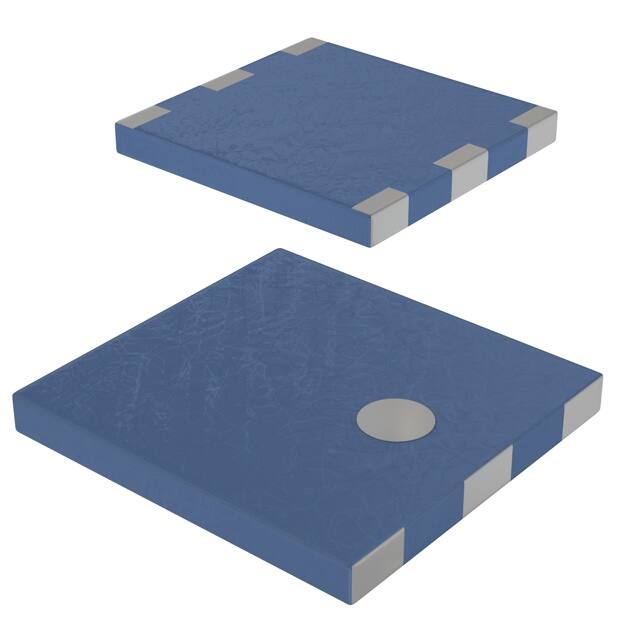

CAN4311117002521KANTENNA 802.11A/B DUAL BAND SMD |
1,835 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.2GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.25GHz | Chip | 2 | 2.5 | - | 0dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | - |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
