RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NMO900STAINLESS SPRING BASE / WHIP, EN |
4,621 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Whip, Straight | 1 | - | - | 5.6dBi | 200 W | - | NMO | - | - | - | Magnetic | 12.750" (323.85mm) | - |
|
W5010RF ANT 2.4GHZ WHIP STR RP-SMA ML |
4,626 |
|
Datasheet | - | Bulk | Active | 802.15.4 | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | -10dB | 1.5dBi | - | - | RP-SMA Male | IP65 | - | - | Connector Mount | 5.122" (130.09mm) | ZigBee™ |
|
GNSSMMSMAANT ACTIVE GNSS MAG MNT 3M SMA |
3,978 |
|
Datasheet | GNSS Active Antenna | Bag | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.5755GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.577GHz, 1.598GHz ~ 1.606GHz | Module | 3 | 2, 2.5 | - | 1dBic, 2.4dBic, 3.5dBic | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Magnetic | 0.571" (14.50mm) | Beidou, GLONASS, GNSS, GPS |
|
SLPT2400/5900DMNRF ANT 2.4/5.4GHZ WHIP STR N FEM |
2,866 |
|
Datasheet | Shadow | Bulk | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Dome | 2 | 2 | - | 5.5dBi | 10 W | - | N Type Female | IP67 | - | - | Connector Mount | 2.500" (63.50mm) | LTE, WLAN |
|
W3554K0153ANTENNA ASSEMBLY 6GHZ 153MM SMA |
2,247 |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi | Wide Band | 829MHz, 1.5GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.4GHz ~ 1.6GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | PCB Trace | 5 | - | -4dB, -3dB, -6dB, -5dB, -4dB | 1.9dBi, 2.5dBi, 3.2dBi, 3.3dBi, 3.5dBi | 5 W | Cable - 153mm | SMA Male | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, 5G, Bluetooth, GNSS, ISM, Wi-Fi, Zigbee™ |
|
|
W3554B0170ANTENNA ASSEMBLY 6GHZ 170MM U.FL |
2,853 |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi | Wide Band | 829MHz, 1.5GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.4GHz ~ 1.6GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | PCB Trace | 5 | - | -4dB, -3dB, -6dB, -5dB, -4dB | 1.9dBi, 2.5dBi, 3.2dBi, 3.3dBi, 3.5dBi | 5 W | Cable - 170mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, 5G, Bluetooth, GNSS, ISM, Wi-Fi, Zigbee™ |
|
KG3E825UDON GLASS, ENCLOSED, 3 DB, 806 - |
2,414 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 851MHz | 806MHz ~ 896MHz | Whip, Straight | 1 | - | - | 5.14dBi | 60 W | - | - | - | - | - | Magnetic | 13.000" (330.20mm) | - |
|
|
W3715RF ANT 2.45/5.425GHZ PCB TRACE |
2,628 |
|
Datasheet | Embedded Antenna | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.425GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | PCB Trace | 2 | 2 | - | 3.7dBi, 5.5dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.630" (16.00mm) | General Purpose |
|

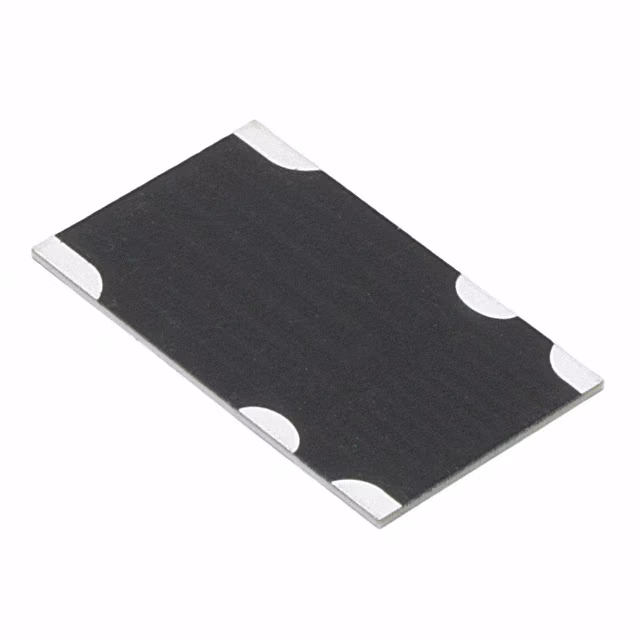

ANT2112A010B0918ARF ANT 900MHZ/1.8GHZ CHIP SLD |
1,068 |
|
Datasheet | 2112 | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.8GHz | 885MHz ~ 915MHz, 1.715GHz ~ 1.885GHz | Chip | 2 | - | -6.543dB, -9.217dB | 0.5dBi, 1dBi | 4 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | - |
|
|
ANT1212B00BT2400SRF ANT 2.45GHZ CER PATCH SLDR |
3,885 |
|
Datasheet | 1212 | Tray | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | 3 | - | 4dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | General Purpose |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
