RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3040RF ANT 2.1GHZ CHIP SOLDER SMD |
2,352 |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 2.1GHz | 1.92GHz ~ 2.17GHz | Chip | 1 | - | -10dB | 2.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | WCDMA |
|
|
W4120ER5000RF ANT 850MHZ/900MHZ FLAT BAR |
2,645 |
|
Datasheet | - | Bulk | Active | Cellular, Navigation | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz | 806MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.17GHz | Flat Bar | 6 | 2.5, 2.5, 2 | - | 0dBi | - | Cable - 5m, LNA | MCX (1), MMCX (1) | IP67 | - | - | Adhesive | 0.543" (13.80mm) | GPS, GSM |
|
|
W4120GL5000RF ANT 850MHZ/900MHZ FLAT BAR |
4,626 |
|
Datasheet | - | Bulk | Active | Cellular, Navigation | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz | 806MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.17GHz | Flat Bar | 6 | 2.5, 2.5, 2 | - | 0dBi | - | Cable - 5m, LNA | FME (1), SMA Male (1) | IP67 | - | - | Adhesive | 0.543" (13.80mm) | GPS, GSM |
|
W3538M0150RF ANT 892MHZ/1.9GHZ PCB 150MM |
4,589 |
|
Datasheet | - | Tray | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | - | -3dB, -6dB | 1.5dBi, 4.5dBi, 3.9dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.028" (0.70mm) | GSM, WCDMA |
|
|
W4150GG3000RF ANT 892MHZ/1.575GHZ PUCK 3M |
3,874 |
|
Datasheet | - | Tray | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.575GHz, 1.9GHz | 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz | Puck | 3 | 2.5, 2.5, 1.5 | - | 2dBi, 4dBi | - | LNA | SMA Male | - | - | - | Adhesive | 0.315" (8.00mm) | GPS, GSM |
|
|
W5005ANTENNA PENTA BAND RADOME MALE |
4,601 |
|
Datasheet | - | Tray | Active | General ISM | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 895MHz | 824MHz ~ 930MHz, 860MHz ~ 960MHz | - | 2 | - | -10dB | 1dBi | - | - | N Type Female | IP67 | - | - | Connector Mount | 8.465" (215.00mm) | ISM |
|
|
RO2404NMRF ANT 2.4GHZ WHIP STR N MALE |
1,722 |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.485GHz | Whip, Straight | 1 | 2 | - | 4dBi | 20 W | - | N Type Male | - | - | - | Connector Mount | 11.496" (292.00mm) | - |
|
|
SLPT698NMORF ANT 829MHZ WHIP STR NMO BASE |
1,593 |
|
Datasheet | Shadow | Bulk | Active | Cellular, WiFi | UHF (300MHz ~ 1GHz) | 829MHz | 698MHz ~ 960MHz | Dome | 1 | 2 | - | 4.5dBi | 10 W | - | NMO | IP67 | - | - | Base Mount | 3.000" (76.20mm) | LTE, WLAN |
|
|
W4120EG5000RF ANT 850MHZ/900MHZ FLAT BAR |
1,787 |
|
Datasheet | - | Bulk | Active | Cellular, Navigation | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz | 806MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.17GHz | Flat Bar | 6 | 2.5, 2.5, 2 | - | 0dBi | - | Cable - 5m, LNA | SMA Male (1), MMCX (1) | IP67 | - | - | Adhesive | 0.543" (13.80mm) | GPS, GSM |
|

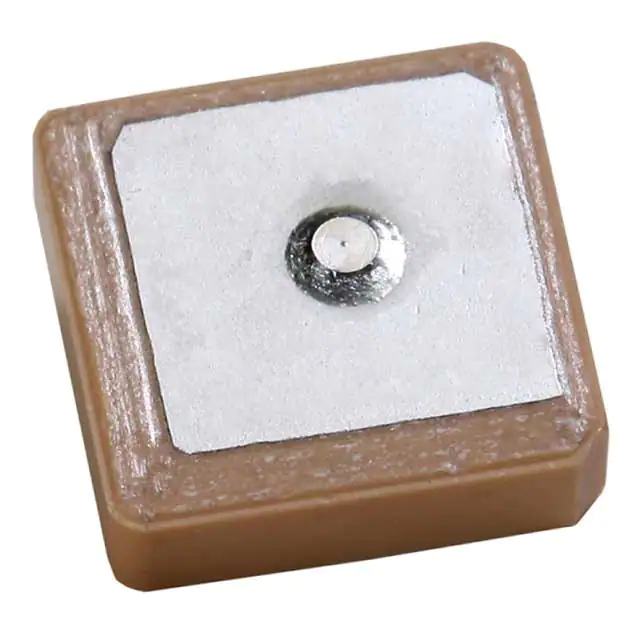

ANT1515B00FT1575SRF ANT 1.6GHZ CER PATCH PIN SMD |
1,551 |
|
Datasheet | 1515 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.576GHz ~ 1.584GHz | Ceramic Patch | 1 | 2 | -10dB | 1.5dBic | - | - | Pin | - | - | - | Surface Mount | 0.177" (4.50mm) | GPS |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
