RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TRPS-20INT-2458BRF ANT 1.5865GHZ DOME QMA MALE |
4,281 |
|
Datasheet | - | Box | Active | Navigation, WiFi | Wide Band | 1.5865GHz, 2.45GHz, 5.4GHz | 1.565GHz ~ 1.608GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Dome | 3 | 1.2, 1.4, 2 | - | -2dBic, 3dBic, 9.4dBi, 9.4dBi | 25 W | Cable - 5.1816m | QMA Male (2) | - | - | - | Panel Mount | 3.460" (87.88mm) | 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, ISM, LoRa, LPWAN, LTE, Wi-Fi |
|
MAT.500.AMAT.500.A 6IN1 INTEGRATED ANTENN |
2,764 |
|
Datasheet | - | Box | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.575GHz, 1.602GHz, 1.621GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 5.375GHz | 698MHz ~ 960MHz, 1.574GHz ~ 1.607GHz, 1.615GHz ~ 1.626GHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 4.9GHz ~ 5.85GHz | Ceramic Patch | 12 | 2, 2.2, 4 | - | 0.28dBi, 1.7dBi, 1.7dBi, 5.47dBi, 4.9dBi, 5.11dBi, 6.79dBi, 7.06dBi, 6.81dBi, 5.14dBi, 1.35dBi, 4.77dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 1.181" (30.00mm) | DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
|
PCTWSLMRRF ANT 155MHZ WHIP STR NMO |
3,344 |
|
Datasheet | PCTW | Tube | Active | Cellular | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | 155MHz, 450MHz, 829MHz | 136MHz ~ 174MHz, 380MHz ~ 520MHz, 698MHz ~ 960MHz | Whip, Straight | 3 | 2 | - | 1dBi | 160 W | - | NMO | IP56 | - | - | NMO Mount | 22.000" (558.80mm) | 2G, 3G, 5G, Cellular, LTE, LMR/TETRA/P25 |
|
MA106.C.LB.001RF ANT 892MHZ/1.94GHZ DOME SMA |
2,320 |
|
Datasheet | - | Bulk | Active | Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Dome | 2 | 3.5 | -25dB | 4dBi | 10 W | - | SMA Male | IP69K | - | - | Panel Mount | 1.122" (28.50mm) | GLONASS, GPS |
|
DTAD.01.A.50RF ANT 829MHZ/2.2GHZ PCB TRACE |
3,499 |
|
Datasheet | - | Box | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | PCB Trace | 2 | - | - | 2.5dBi | - | - | SMA Female | - | - | - | Adhesive | 0.197" (5.00mm) | LTE |
|
2108854-1ACTIVE ANT.,MHF,100MM,L1+G1 & L2 |
2,192 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.225GHz, 1.5845GHz | 1.194GHz ~ 1.255GHz, 1.559GHz ~ 1.61GHz | Flat Patch | 2 | 1.2 | - | 28.2dBic ~ 32.8dBic, 29.5dBic ~ 35.2dBic | - | LNA, Filter | RP-SMA Male | - | - | - | Adhesive | 0.709" (18.00mm) | GNSS |
|
CFD69383P1-30NFRF ANT FLAT PNL N TYP FML PNL MT |
2,704 |
|
Datasheet | - | Bulk | Active | Cellular, WiFi | Wide Band | - | - | Flat Panel | 3 | 2 | - | 6dBi | 50 W | Cable - 300mm | N Type Female | - | - | - | Panel Mount | 0.299" (7.60mm) | LTE, WiMax™ |
|

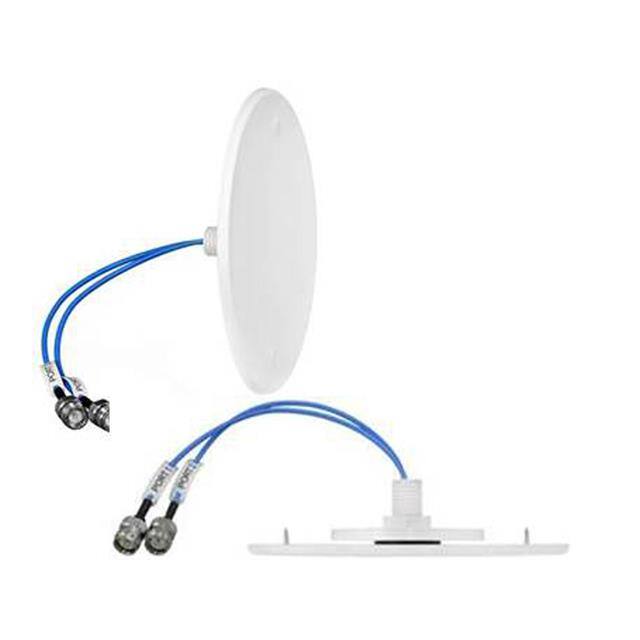

CFD69383P-30NFRF ANT FLAT PNL N TYP FML PNL MT |
2,121 |
|
Datasheet | - | Bulk | Active | Cellular, WiFi | Wide Band | - | - | Flat Panel | 3 | 2 | - | 6dBi | 50 W | Cable - 300mm | N Type Female | - | - | - | Panel Mount | 0.299" (7.60mm) | LTE, WiMax™ |
|
B1322WRF ANT 132MHZ WHIP STR NMO BASE |
1,436 |
|
Datasheet | - | Bulk | Active | - | VHF (f < 300MHz) | 132MHz | 132MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 2.4dB | 100 W | - | NMO | - | - | - | Base Mount | 40.157" (102.00cm) | - |
|
B3803WSRF ANT 450MHZ WHIP STR NMO BASE |
2,855 |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 450MHz | 380MHz ~ 520MHz | Whip, Straight | 1 | 2 | - | 3dBi | 200 W | - | NMO | - | - | - | Base Mount | 9.921" (252.00mm) | - |
|
OMB.8912.05F21RF ANT 850MHZ/900MHZ WHIP STR N |
4,171 |
|
Datasheet | Barracuda | Tube | Active | Cellular, General ISM | Wide Band | 850MHz, 900MHz, 1.8MHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 5 | 2 | - | 3.04dBi, 3.03dBi, 4.3dBi, 4.83dBi, 5.56dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 23.425" (595.00mm) | DCS, GSM, PCS, WCDMA |
|
DASUTWC500NFCLARITY WHITE ULTRA THIN CEILING |
2,839 |
|
Datasheet | - | Box | Active | Cellular, WiFi | Wide Band | 784MHz, 1.9475GHz, 2.5GHz | 608MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | 2 | - | 4dBi, 6dBi, 6dBi | 40 W | Cable - 500mm | N Type Female | - | - | - | Panel Mount | 0.331" (8.40mm) | LTE, Wi-Fi |
|
ARM32012DMRF ANT 829MHZ/1.582GHZ MOD PANEL |
3,928 |
|
Datasheet | ARMADILLO | Bulk | Active | Cellular, Navigation | Wide Band | 829MHz, 1.582GHz, 2.2GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz | Module | 3 | 2, 2.5 | - | 4.9dBi, 5.3dBi, 4.6dBi, 6.6dBi | - | Cable - 5.18m, LNA | SMA Male (3) | IP67 | - | - | Panel Mount | 1.772" (45.00mm) | GPS, LTE |
|
MA413.A.B.003RF ANT 829MHZ/1.94GHZ DOM SMA 1M |
1,705 |
|
Datasheet | - | Box | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Dome | 3 | 3 | - | 8dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 1.219" (30.95mm) | LTE |
|
ARM21011DMRF ANT 829MHZ/1.582GHZ MODULE |
1,943 |
|
Datasheet | ARMADILLO | Bulk | Active | - | Wide Band | 829MHz, 1.582GHz, 2.2GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz | Module | 2 | 2, 2.5 | - | 4.6dBi, 4.9dBi, 5.3dBi, 6.6dBi | - | Cable - 5.18m, LNA | SMA Male (2) | IP67 | - | - | Adhesive, Magnetic | 1.772" (45.00mm) | General Purpose |
|
CFD69383P-B30D43FRF ANT FLAT PANEL FML PANEL MT |
2,690 |
|
Datasheet | CBRS | Bulk | Active | Cellular, WiFi | Wide Band | - | - | Flat Panel | 3 | 2 | - | 6dBi | 50 W | Cable - 300mm | 4.3/10 - Female | - | - | - | Panel Mount | 0.299" (7.60mm) | LTE, WiMax™ |
|
TRAT1500RF ANT 159MHZ DOME NMO BASE 2.3" |
3,816 |
|
Datasheet | Phantom® | Bulk | Active | - | VHF (f < 300MHz) | 159MHz | 150MHz ~ 168MHz | Dome | 1 | - | - | 0dBi | 60 W | - | NMO | - | - | - | Base Mount | 3.500" (88.90mm) | - |
|
TRAT1560RF ANT 164MHZ DOME NMO BASE 2.3" |
2,011 |
|
Datasheet | Phantom® | Bulk | Active | - | VHF (f < 300MHz) | 164MHz | 156MHz ~ 172MHz | Dome | 1 | - | - | 0dBi | 60 W | - | NMO | - | - | - | Base Mount | 3.500" (88.90mm) | - |
|
MFB4603RF ANT 465MHZ WHIP STR N TYPE |
1,478 |
|
Datasheet | MFB | Tube | Active | General ISM | UHF (300MHz ~ 1GHz) | 465MHz | 460MHz ~ 470MHz | Whip, Straight | 1 | 1.5 | - | 3dB | 250 W | - | N Type Male | - | - | - | Pole Mount | 51.000" (129.54cm) | ISM, LoRa, LPWAN |
|
710657RF ANT RUGGED 3 IN 1 |
1,606 |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
