RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WMLPV700RF ANT 740-870MHZ WHT/CHROME |
3,861 |
|
Datasheet | Trooper | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NMOQSPECSTAINLESS, SPEC BASE / WHIP, UNI |
3,889 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 548MHz | 136MHz ~ 960MHz | Whip, Straight | 1 | 1 | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 22.000" (558.80mm) | - |
|
TANGO52/2.0M/SMAM/S/S/17450MHZ 79MM LENGTH PANEL MOUNT A |
3,353 |
|
Datasheet | TANGO 52 | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 450MHz | 400MHz ~ 480MHz | Whip, Straight | 1 | 1.5 | - | 2dBi | 50 W | Cable - 2m | SMA Male | - | - | - | Bracket Mount, Panel Mount | 3.110" (79.00mm) | ISM |
|

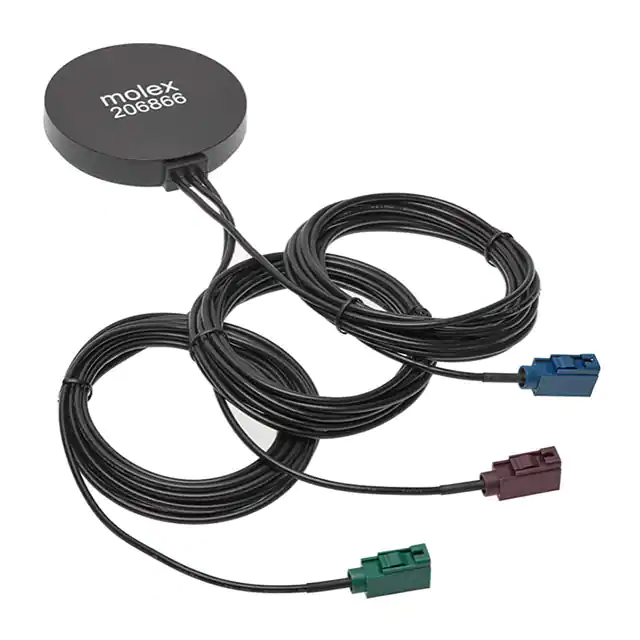

2068663000RF ANT 892MHZ/1.58GHZ SMB ADH |
4,333 |
|
Datasheet | 206866 | Box | Active | Bluetooth, Cellular, Navigation, WiFi | Wide Band | 892MHz, 1.58GHz, 2.2GHz, 2.44GHz | 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.48GHz | - | 4 | 3, 2 | -10dB, -6dB | -0.5dBi, 3dBi, 0dBi, -2.7dBi | - | Cable - 3m | SMB, Fakra | IP66 | - | - | Adhesive | 0.591" (15.00mm) | Bluetooth, Cellular, GPS, Wi-Fi |
|
LPTNGP600/71DMNANT DIPOLE 4G 5G 6E N-FEMALE BLK |
1,697 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 788.5MHz, 2.205GHz, 3.75GHz, 4.7GHz, 5.537GHz, 6.562GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 6GHz ~ 7.125GHz | Dome | 6 | 2, 3.5 | - | -1.6dBi, 2.6dBi, 3.8dBi, 2.9dBi, 2.8dBi, 3.4dBi | 60 W | - | N Type Female | IP67 | - | - | Panel Mount | 3.850" (97.80mm) | General Purpose |
|
NMOQSPEC800BSPEC BASE / WHIP, UNITY, 806 - 8 |
2,904 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 851MHz | 806MHz ~ 896MHz | Whip, Straight | 1 | - | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 4.000" (101.60mm) | - |
|
|
LPTNGPDC600/71DMNANT DIPOLE 4G 5G 6E N-FEMALE BLK |
3,495 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 788.5MHz, 2.205GHz, 3.75GHz, 4.7GHz, 5.537GHz, 6.562GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 6GHz ~ 7.125GHz | Dome | 6 | 2, 3.5 | - | -1.7dBi, 2.6dBi, 4.2dBi, 3dBi, 3.4dBi, 3.7dBi | 10 W | - | N Type Female | IP67 | - | - | Panel Mount | 3.850" (97.80mm) | General Purpose |
|
AGPS26MMMSMARF ANT 1.575GHZ MODULE SMA MAGN |
1,289 |
|
Datasheet | AGPS26 | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 2 | - | 5dBic | - | Cable - 5.1816m, LNA, Filter | SMA | - | - | - | Magnetic | 0.547" (13.90mm) | GNSS, GPS |
.jpg "2108844-1")
|
2108844-1CERAMIC ANT., SMD, L1+G1 & L2+L5 |
3,947 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Flat Patch | 2 | 1.3, 1.4 | - | 5.4dBic, 6dBic | - | - | - | - | - | - | Adhesive | 0.512" (13.00mm) | GNSS |
|
|
ANT-19078EB56RF ANT, CABLE 1:4G/3G/2GCABLE 2: |
3,119 |
|
Datasheet | - | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.495GHz | 698MHz ~ 960MHz, 1.598GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Module | 5 | 2, 3 | -6dB, -15dB | -0.5dBi, 2.5dBi, 0.4dBi, 0.3dBi, 0.9dBi, 0.4dBi, 3dBi, 0.6dBi, 3.2dBi | 5 W | Cable - 3m, Filter | - | - | - | - | Magnetic | 0.564" (14.32mm) | 2G, 3G, 4G, Galileo, GLONASS, GPS |
|
0600-00048RF ANT 915MHZ WHIP TILT U.FL PAN |
2,692 |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | Whip, Tilt | 1 | - | - | 2dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | - | - |
MAXMFT(S).jpg "BMAX7633S")
|
BMAX7633SRF ANT 815MHZ WHIP STR NMO MNT |
2,445 |
|
Datasheet | MAX BASE | Bag | Active | General ISM, WiFi | UHF (300MHz ~ 1GHz) | 815MHz | 760MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 100 W | - | - | - | - | - | NMO Mount | 14.000" (355.60mm) | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LTE, Wi-Fi |
|
|
BMLPV430MULTIBAND LOW PROFILE ANTENNA |
3,629 |
|
Datasheet | MLPV | Bag | Active | - | Wide Band | 5.4GHz | 4.9GHz ~ 5.9GHz | Dome | 1 | 1.5:1 | - | 4dBi | 150 W | - | - | IP67 | - | - | Panel Mount | 1.791" (45.50mm) | 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, LTE, Wi-Fi |
|
UTRA4502S3NW-001RF ANT 481MHZ DOME NMO BASE MT |
3,158 |
|
Datasheet | Ultra Phantom® | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 481MHz | 450MHz ~ 512MHz | Dome | 1 | 2.5 | - | 4.1dBi | - | - | NMO | IP67 | - | - | Base Mount | 3.409" (86.60mm) | - |
|
SLPT806DMNRF ANT 850/900MHZ WHIP STR N FEM |
2,454 |
|
Datasheet | Shadow | Bulk | Active | Cellular, WiFi | UHF (300MHz ~ 1GHz) | 850MHz, 900MHz | 806MHz ~ 960MHz | Dome | 1 | 2 | - | 4.5dBi | 10 W | - | N Type Female | IP67 | - | - | Panel Mount | 3.000" (76.20mm) | LTE, WLAN |
|
AEARBD048014-SG3RF ANT 1561/1575/1602MHZ DOME |
2,208 |
|
Datasheet | AEAR | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.610GHz | Puck | 1 | 2 | - | 5.78dBi, 4.27dBi, 5.65dBi | - | Cable - 5m, LNA | SMA | - | - | - | Magnetic | 0.551" (14.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
AGGBP.SL.35A.07.0060AGPS/GLONASS/GALILEO/BEIDOU PATCH |
2,603 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | - | 2.79dBi, 2.23dBi, 1.32dBi | - | Cable - 60mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.315" (8.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
AGPS26MMMCRF ANT 1.575GHZ MODULE SMA MAGN |
4,034 |
|
Datasheet | AGPS26 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 2 | - | 5dBic | - | Cable - 431.8mm, LNA | SMA | - | - | - | Magnetic | 0.547" (13.90mm) | GPS |
|
|
H2M1W011129900ANTENNA MODULE NB80DG; GPS(L1+L5 |
1,473 |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz | - | Ceramic Patch | 2 | - | -10dB | 2.6dBi, 4.6dBi | - | Cable - 74mm, LNA | I-PEX, MHF | - | - | - | Surface Mount | 0.476" (12.10mm) | GPS |
|
|
LPT450/512NMORF ANT 481MHZ WHIP STR NMO BASE |
1,359 |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 481MHz | 450MHz ~ 512MHz | Whip, Straight | 1 | 2.3 | - | 4.6dBi | 100 W | - | NMO | IP67 | - | - | Base Mount | 3.539" (89.90mm) | - |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
