RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GL125-DLTEMIMOCOACH II -PERMANENT MOUNT |
1,633 |
|
Datasheet | Coach™ II | Box | Active | - | Wide Band | 1.22GHz, 1.5575GHz | 1.15GHz ~ 1.29GHz, 1.5GHz ~ 1.615GHz | Module | 2 | 2:1 | - | 28dBi | 25 W | LNA, Filter | - | IP67 | - | - | - | 3.622" (92.00mm) | BeiDou, Bluetooth, Cellular, Galileo, GLONASS, GNSS, GPS, Wi-Fi |
|
|
GL125-DLTEMIMO-SMCOACH II 5G CELLULAR GNSS MULTI |
2,833 |
|
Datasheet | Coach™ II | Box | Active | Cellular, Navigation, WiFi | Wide Band | 649MHz, 750MHz, 892MHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.6GHz, 5.4125GHz | 600MHz ~ 698MHz, 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.5GHz, 2.4GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.925GHz | Module | 1 | 3 | - | 5.1dBi | 25 W | Filter | SMA | IP67 | - | - | Stud | 3.622" (92.00mm) | BeiDou, Bluetooth, Cellular, Galileo, GLONASS, GNSS, GPS, Wi-Fi |
|
BOA2177RF ANT 219.5MHZ WHIP N TYP F BRK |
4,564 |
|
Datasheet | - | Tube | Active | - | VHF (f < 300MHz) | 219.5MHz | 217MHz ~ 222MHz | Whip, Straight | 1 | 2 | - | 7.1dBi | 250 W | - | N Type Female | - | - | - | Bracket Mount | 150.984" (383.50cm) | - |
|
|
MHO5GFR1NF5G FR1 600MHZ-6GHZ OMNI ANTENNA |
4,600 |
|
Datasheet | - | Box | Active | Cellular | Wide Band | 628.5MHz, 768MHz, 928MHz, 1.855GHz, 2.2GHz, 2.55GHz, 3.75GHz, 5.412GHz | 617MHz ~ 640MHz, 640MHz ~ 896MHz, 896MHz ~ 960MHz, 1.71GHz ~ 2GHz, 2GHz ~ 2.4GHz, 2.4GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 5.925GHz | Whip, Straight | 8 | 2.5, 2.7, 3, 3.1, 3.5, 4.5 | - | 1.81dBi, 2.38dBi, 1.81dBi, 3.43dBi, 3.68dBi, 3.17dBi, 5.87dBi, 4.33dBi | 25 W | - | N Type Female | IP67 | - | - | Bracket Mount | 10.500" (266.70mm) | 5G |
|
|
GNSS-L1256-40TNCRF ANT GNSS 40DB PRECIS TNCF LP |
1,150 |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.22GHz, 1.5575GHz | 1.15GHz ~ 1.3GHz, 1.5GHz ~ 1.615GHz | Dome | 2 | 2 | - | 3dBic, 3dBic | - | LNA | TNC Female | IP67 | - | - | Bracket Mount, Through Hole | 1.575" (40.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
MCMI24583RPSMARF ANT 4.15GHZ MOD RP-SMA CEILNG |
1,263 |
|
Datasheet | - | Box | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 4.15GHz | 2.3GHz ~ 6GHz | Module | 1 | 2 | - | 3.5dBic | 10 W | - | RP-SMA | - | - | - | Ceiling Mount | 0.181" (4.60mm) | Bluetooth, Wi-Fi |
|
ST-CA7002700-PTNFRF ANT MULT-BAND CEILING MT OMNI |
4,658 |
|
Datasheet | * | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
GNSS4GSMRF ANT 829MHZ MOD SMA M STUD/TH |
3,631 |
|
Datasheet | - | Bulk | Obsolete | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Module | 2 | 2 | - | 5dBi | - | Cable - 5m, LNA | SMA Male (2) | IP67 | - | - | Stud, Through Hole | 5.906" (150.00mm) | 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, ISM, LoRa, LPWAN, LTE, Wi-Fi |
|
|

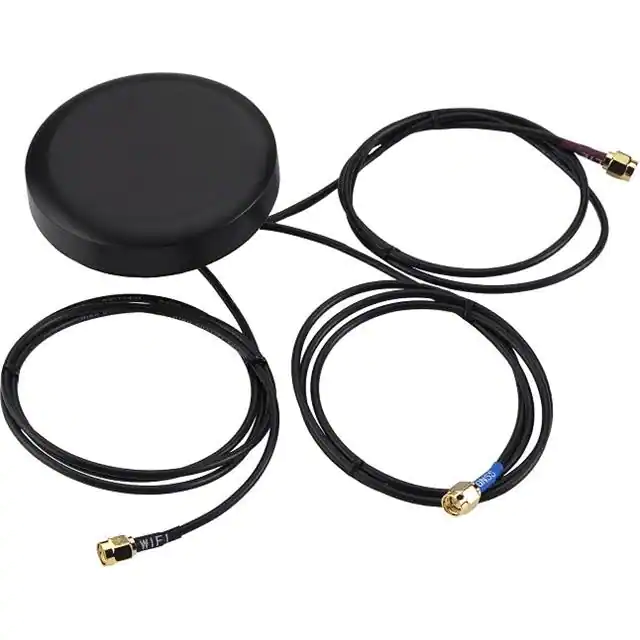

GNSS4GBTSMRF ANT 829MHZ MOD RP-SMA M STUD |
2,904 |
|
Datasheet | - | Bulk | Obsolete | Cellular, Navigation, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 1.575GHz, 1.596GHz, 1.602GHz, 2.205GHz, 2.44GHz | 698MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.7GHz, 2.4GHz ~ 2.4835GHz | Module | 5 | 2 | - | 5dBi, 5dBic, 3dBi | - | Cable - 5m, LNA | RP-SMA Male (1), SMA Male (2) | IP67 | - | - | Stud, Through Hole | 5.906" (150.00mm) | 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, ISM, LoRa, LPWAN, LTE, Wi-Fi |
|
3971D-HRRF ANT 1.575GHZ DOME TNC BRKT MT |
3,489 |
|
Datasheet | - | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | - | - | 3dBic, -2dBic | - | LNA, Filter | TNC | IP67 | - | - | Bracket Mount, Through Hole | 0.827" (21.00mm) | GNSS, GPS |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
