RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

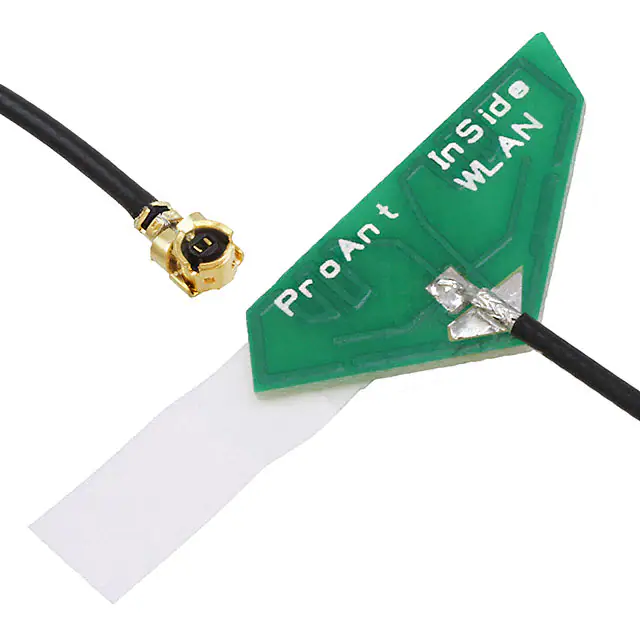

PRO-IS-299RF ANT 2.4GHZ/5.5GHZ PCB TRACE |
260 |
|
Datasheet | Embedded Antenna | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 3 | - | 3dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|
AEACAC054010-S915RF ANT 915MHZ WHIP STR SMA ML |
278 |
|
Datasheet | AEAC | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 880MHz ~ 950MHz | Whip, Straight | 1 | 3 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.807" (45.90mm) | ISM, LoRa, LPWAN, Sigfox |
|
AEMF1005X-HLTE 5G WIDEBAND EXTERNAL RA WHIP |
937 |
|
Datasheet | AEMF | Bag | Active | Cellular/LTE | Wide Band | 788.5MHz, 2.05GHz, 3.85GHz, 5.2GHz | 617MHz ~ 6GHz | Whip, Tilt | 4 | 3 | - | 0.1dBi, 3.6dBi, 5.1dBi, 4.8dBi | 5 W | Swivel Connetor | RP-SMA Male, SMA Male | - | - | - | Connector Mount | 6.811" (173.00mm) | 5G, LTE-M, Cat M, Cat M1, NB-IoT, IOT, CBRS |
|
AFC8513U4GS-0100SRF ANT 5G/4G/LTE/NBIOT/GNSS FLEX |
558 |
|
Datasheet | AFC | Bulk | Active | Cellular, Navigation, WiFi | UHF (2GHz ~ 3GHz) | 2.349GHz | 698MHz ~ 4GHz | Flat Patch | 1 | 3 | - | 5dBi | 5 W | Cable - 100mm | I-PEX | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, GSM, LTE, Wi-Fi |
|
AEACAC195013-S868RF ANT 868MHZ WHIP TILT SMA ML |
244 |
|
Datasheet | AEAC | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 837MHz ~ 884MHz | Whip, Tilt | 1 | 2.5 | - | 3dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.677" (195.00mm) | ISM, LoRa, LPWAN, Sigfox |
|
AFAG3030-SG3ANTENNA GNSS FLEX 100MM IPEX |
2,507 |
|
Datasheet | AFAG | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.585GHz | 1.55GHz ~ 1.62GHz | PCB Trace | 1 | 2.5 | - | 2dBi ~ 3dBi | 3 W | Cable - 100mm | I-PEX | - | - | - | Adhesive | 0.008" (0.20mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

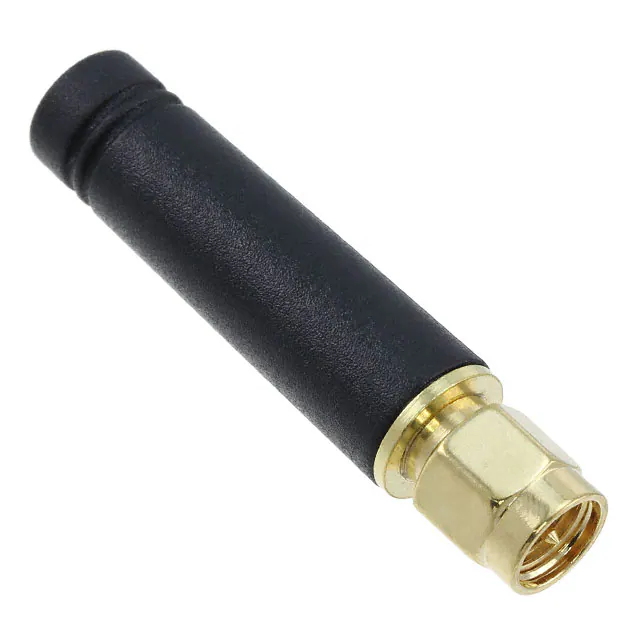

APAMSJ-137RF ANT 5GHZ WHIP STR SMA MALE |
275 |
|
Datasheet | APAMS | Bulk | Active | WiFi | SHF (f > 4GHz) | 5GHz | 4.9GHz ~ 5.9GHz | Whip, Straight | 1 | 3 | - | 5dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.732" (44.00mm) | WLAN |
|
AEACAC195013-S915RF ANT 915MHZ WHIP TILT SMA ML |
337 |
|
Datasheet | AEAC | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 903MHz ~ 928MHz | Whip, Tilt | 1 | 2.5 | - | 3dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.677" (195.00mm) | ISM, LoRa, LPWAN, Sigfox |
|
APARM2508S-SGL2L5RF ANT GPS L1+L2+L5 STACK PATCH |
1,313 |
|
Datasheet | APARM | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz | 1.164GHz ~ 1.188GHz, 1.574GHz ~ 1.576GHz | Ceramic Patch | 2 | 1.8 | - | 3.8dBi, -0.3dBi, -0.5dBi | - | - | Pin | - | - | - | Surface Mount | 0.315" (8.00mm) | GPS |
|
APAMP-128RF ANT 1.575GHZ DOME SMA ML MAG |
189 |
|
Datasheet | APAMP | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Dome | 1 | 1.5 | - | 3.5dBic | - | - | SMA Male | - | - | - | Magnetic | 0.531" (13.50mm) | GPS |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
