RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMCA52-2R510G-S1F-T4RF ANT 2.5GHZ CHIP SOLDER SMD |
3,933 |
|
Datasheet | AMCA | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.5GHz | 2.41GHz ~ 2.61GHz | Chip | 1 | 2 | - | 2.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | WiMax™, WLAN |
|

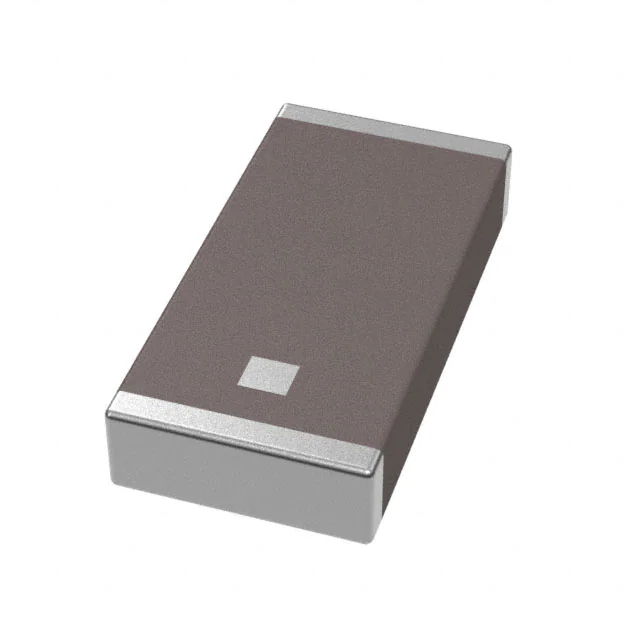

ACAG0301-15752450-TRF ANT 1.575GHZ/2.4GHZ CHIP SLD |
8,624 |
|
Datasheet | ACAG | Tape & Reel (TR) | Active | Bluetooth, General ISM, Navigation, WiFi | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.575GHz, 2.4GHz | 1.565GHz ~ 1.585GHz, 2.4GHz ~ 2.5GHz | Chip | 2 | - | - | 1.21dBi, 3.18dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, GPS, ISM, Wi-Fi |
|
APAE1575R1340ABDD6-TRF ANT 1.575GHZ CER PATCH PIN |
981 |
|
Datasheet | APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.584GHz ~ 1.588GHz | Ceramic Patch | 1 | 1.5 | -15dB | - | - | - | Pin | - | - | - | Adhesive | 0.185" (4.70mm) | GPS |
|
ACR1004GCGNSS+GPS(L5) MULTIBAND CHIP ANT |
1,952 |
|
Datasheet | ACR | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.602GHz | 1.166GHz ~ 1.186GHz, 1.561GHz ~ 1.61GHz | Chip | 4 | - | -12dB | 1.9dBi, 2.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
ACR2005I4RF ANT 433/450- 470MHZ CHIP SMD |
1,938 |
|
Datasheet | - | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz, 450MHz, 470MHz | - | Chip | 3 | - | - | 0.3dBi, -0.3dBi, -0.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | ISM, LoRa, LPWAN, Sigfox |
|
APAKN0904-S1575-TRF ANT COMPACT GPS PATCH |
892 |
|
Datasheet | APAK | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | - | -10dB | 0.5dBi | - | - | - | - | - | - | Surface Mount | 0.157" (4.00mm) | GNSS, GPS |
|
APRA1804G3ZRF ANT 1561/1575/1602MHZ CER PAT |
288 |
|
Datasheet | APRA | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Chip | 3 | - | -20dB | 2dBi, 4dBi, 3dBi | - | - | Solder | - | Automotive | AEC-Q200 | Surface Mount | 0.157" (4.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
APAKN1304-C2G-TRF ANT 1.575/1.602GHZ CER PATCH |
2,000 |
|
Datasheet | APAK | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | - | -10dB, -10dB | 2.4dBi, 2.6dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Galileo, GLONASS, GNSS, GPS |
|
ACAR4008-S6984G/LTE CERAMIC CHIP ANT |
2,882 |
|
Datasheet | ACAR | Tape & Reel (TR) | Active | Cellular | Wide Band | 830MHz, 1.94GHz, 2.6GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Chip | 3 | 4 | - | -0.16dBi, -1.55dBi, 0.1dBi, 0.33dBi, 1.75dBi, 2.27dBi, 2.74dBi, 2.75dBi, 3.79dBi, 4.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | 2G, 3G, 4G, GSM, LTE |
|
ACAJ-110-TRF ANT 868MHZ/915MHZ CHIP SLD |
2,694 |
|
Datasheet | ACAJ | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | - | Chip | 2 | 3 | - | -2.5dBi, -2.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | ISM |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
