RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEWAN137-15SFWR137 GAIN HRN 5.85-8.2GHZ 15DBI |
1,582 |
|
Datasheet | - | Case | Active | WiFi | Wide Band | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | SMA Female | - | - | - | Waveguide Mount | 2.669" (67.80mm) | General Purpose |
|
|
PEWAN075-15ELNFWR75 GAIN HRN 10-15GHZ 15DBI |
4,421 |
|
Datasheet | - | Tape & Box (TB) | Active | - | Wide Band | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.4 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.122" (28.50mm) | General Purpose |
|

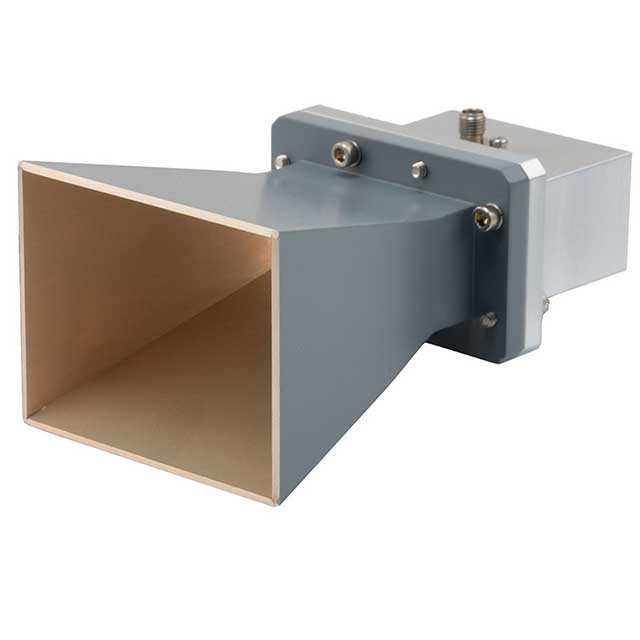

PEWAN187-10SFWR187 GAIN HORN 3.95-5.85GHZ 10D |
2,866 |
|
Datasheet | - | Case | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | SMA Female | - | - | - | Waveguide Flange Mount | 5.206" (132.23mm) | - |
|
|
PEWAN159-15SFWR159 GAIN HRN 4.9-7.05GHZ 15DBI |
4,062 |
|
Datasheet | - | Tape & Box (TB) | Active | - | Wide Band | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 3.101" (78.77mm) | General Purpose |
|
|
PE9860B-10WR-159 Waveguide Standard Gain H |
3,216 |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 4.990" (126.75mm) | General Purpose |
|
PEWAN187-15NFWR187 GAIN HORN 3.95-5.85GHZ 15D |
1,888 |
|
Datasheet | - | Case | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | N Type Female | - | - | - | Waveguide Flange Mount | 8.258" (209.75mm) | - |
|
|
PEWAN112-15SFWR112 GAIN HRN 7.05-10GHZ 15DBI |
2,603 |
|
Datasheet | - | Tape & Box (TB) | Active | - | Wide Band | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 2.188" (55.58mm) | General Purpose |
|

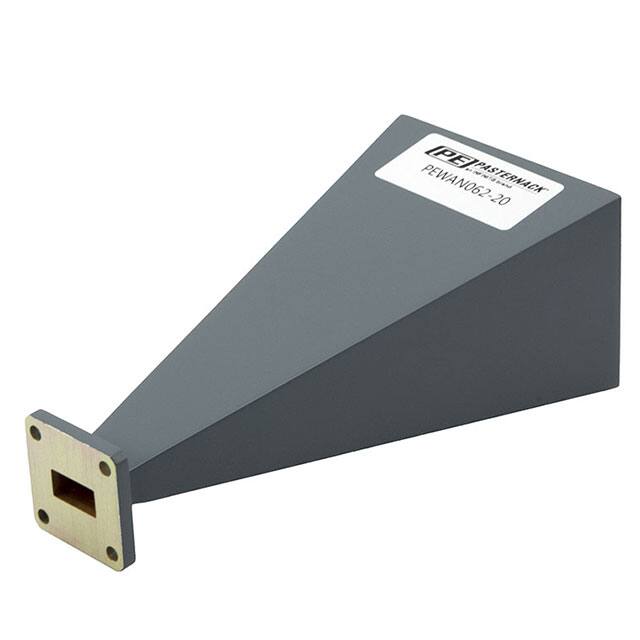

PEWAN062-20WR62 GAIN HORN 12.4-18GHZ 20DBI |
1,917 |
|
Datasheet | - | Bulk | Active | Waveguide | Ku Band (12GHz ~ 18GHz) | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PE9856B-10WR-90 Waveguide Standard Gain Ho |
2,932 |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 2.010" (51.05mm) | General Purpose |
|
PEWAN187-15WR187 GAIN HORN 3.95-5.85GHZ 15D |
3,841 |
|
Datasheet | - | Bulk | Active | Waveguide | C Band (4GHz ~ 8GHz) | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
