RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEWAN1128WR-15 Waveguide Probe Antenna Op |
2,340 |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 62.5GHz | 50GHz ~ 75GHz | Horn | 1 | - | - | 6.5dBi | - | - | - | - | - | - | Waveguide Mount | 1.500" (38.10mm) | General Purpose |
|
PEWAN042-15WR42 GAIN HORN 18-26.5GHZ 15DBI |
3,717 |
|
Datasheet | - | Bulk | Active | Waveguide | K Band (18GHz ~ 27GHz) | 22.6GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PE9859B-15WR-137 Waveguide Standard Gain H |
3,161 |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 6.890" (175.00mm) | General Purpose |
|
|
PE9858B-10WR-112 Waveguide Standard Gain H |
3,464 |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 2.550" (64.77mm) | General Purpose |
|
|
PE51123Portable Antenna Operates From 2 |
4,591 |
|
Datasheet | - | Retail Package | Active | - | Wide Band | 2.35GHz | 2.2GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 6dBi | 50 W | - | N Type Male | - | - | - | Connector Mount | 18.200" (462.28mm) | - |
|
|
PEANOM1142S-band Omni Antenna 2 GHz to 2.5 |
4,376 |
|
Datasheet | - | Retail Package | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.25GHz | 2GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 5dBi | 20 W | - | - | IP65 | - | - | Connector Mount | 13.470" (342.13mm) | General Purpose |
|

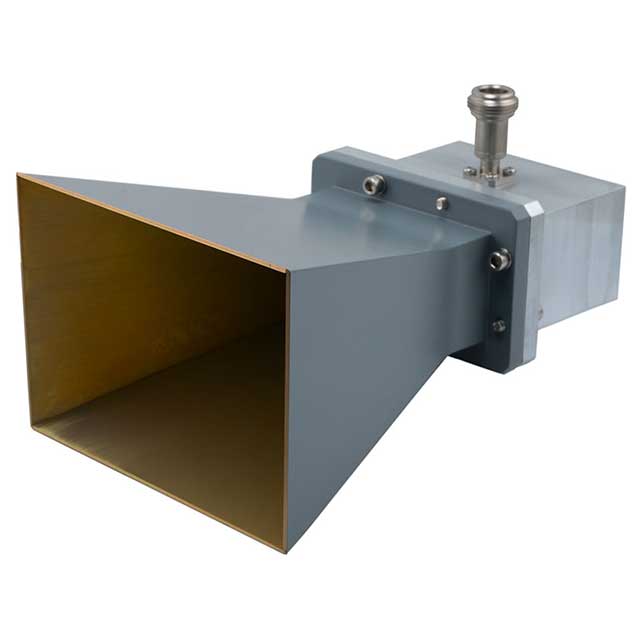

PEWAN229-10NFWR229 GAIN HRN 3.3-4.9GHZ 10DBI |
4,705 |
|
Datasheet | - | Case | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.1GHz | 3.3GHz ~ 4.9GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | N Type Female | - | - | - | Waveguide Flange Mount | 6.314" (160.38mm) | - |
|
|
PEWAN051-10SFWR51 GAIN HRN 15-22GHZ 10DBI |
1,859 |
|
Datasheet | - | Tape & Box (TB) | Active | - | Wide Band | 18.5GHz | 15GHz ~ 22GHz | Horn | 1 | 1.25 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.310" (33.27mm) | General Purpose |
|
|
PEWAN1124WR-6 Waveguide Probe Antenna Ope |
3,170 |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 140GHz | 110GHz ~ 170GHz | Horn | 1 | 2 | - | 6.5dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
|
PEWAN090-15WR90 GAIN HORN 8.2-12.4GHZ 15DBI |
2,775 |
|
Datasheet | - | Bulk | Active | Waveguide | X Band (8GHz ~ 12GHz) | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
