RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEANGPS1007GPS Active Antenna, 1597 MHz to |
2,660 |
|
Datasheet | - | Retail Package | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.602GHz | 1.597GHz ~ 1.607GHz | Module | 1 | 2.5 | - | 10dBi | - | - | SMA Male | IP67 | - | - | - | 1.750" (44.45mm) | Galileo, GLONASS, GNSS, GPS |
|
|
PE51YA10064.9-5.8 GHz 17 dBi Dual Polarity |
2,228 |
|
Datasheet | - | Retail Package | Active | Cellular, WiFi | Wide Band | 5.38GHz | 4.9GHz ~ 5.85GHz | Yagi | 1 | 1.5 | - | 17dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 13.900" (353.06mm) | 802.11a/n, Wi-Fi, WiMax, WLAN |
|
|
PE51028Fixed Antenna Operates From 902 |
3,972 |
|
Datasheet | - | Retail Package | Active | - | Wide Band | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 2 | - | 5dBi | - | - | N Type Female | - | - | - | Connector Mount | 0.967" (24.55mm) | - |
|
|
PEANGPS1001ANT 1.17-1.61GHz, 37.5 DBI, SMA |
4,752 |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.222GHz, 1.565GHz | 1.166GHz ~ 1.278GHz, 1.52GHz ~ 1.61GHz | Whip, Straight | 3 | 2 | - | 39dBi, 40dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 3.250" (82.55mm) | Galileo, GLONASS, GNSS, GPS |
|

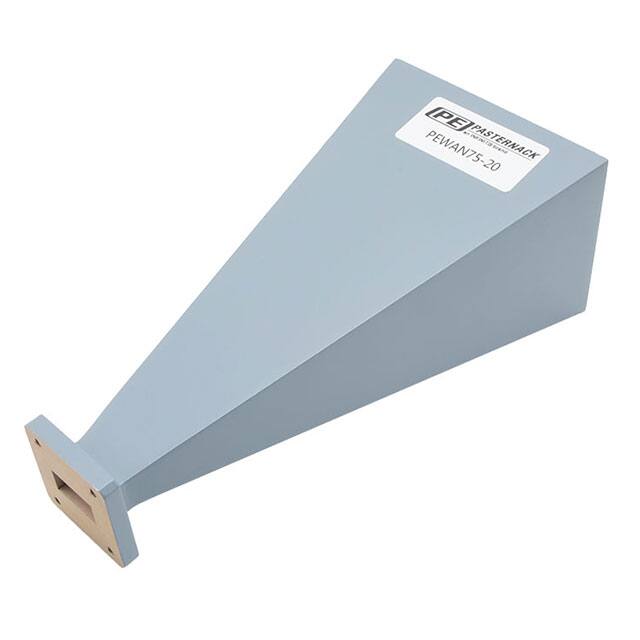

PEWAN075-20WR75 GAIN HORN 10-15GHZ 20DBI |
3,246 |
|
Datasheet | - | Bulk | Active | Waveguide | X-Ku Band (8GHz ~ 18GHz) | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PEWAN075-20ELNFWR75 GAIN HRN 10-15GHZ 20DBI |
2,242 |
|
Datasheet | - | Tape & Box (TB) | Active | - | Wide Band | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.4 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 2.721" (69.11mm) | General Purpose |
|
|
PESMA10002400-2500 MHz, 2 dBi, Stamped Me |
2,000 |
|
Datasheet | - | Retail Package | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | - | 2dBi | 1 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Surface Mount | 1.140" (28.96mm) | 802.11a/b/g/n/ac, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
PESMA10022400-2500 MHz, 2 dBi, Stamped Me |
2,000 |
|
Datasheet | - | Retail Package | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | - | 2dBi | 1 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Surface Mount | 1.220" (31.00mm) | 802.11a/b/g/n/ac, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
PESMA10042400-2500 MHz, 2 dBi, Stamped Me |
2,000 |
|
Datasheet | - | Retail Package | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | - | 2dBi | 1 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Surface Mount | 0.940" (23.88mm) | 802.11a/b/g/n/ac, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
PESMA10052400-2500/ 5150-5825 MHz, 2/3 dB |
2,000 |
|
Datasheet | - | Retail Package | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.487GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz | Stamped Metal | 2 | 2 | - | 2dBi, 3dBi | 1 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Surface Mount | 1.190" (30.23mm) | 802.11a/b/g/n/ac, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
