RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

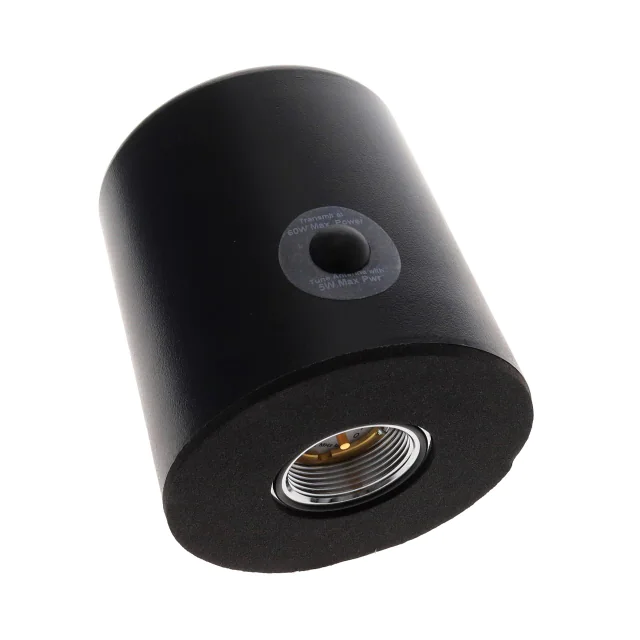

TRABT1560RF ANT 164MHZ DOME NMO BASE 2.3" |
1,939 |
|
Datasheet | Phantom® | Bulk | Active | - | VHF (f < 300MHz) | 164MHz | 156MHz ~ 172MHz | Dome | 1 | - | - | 0dBi | 60 W | - | NMO | - | - | - | Base Mount | 3.500" (88.90mm) | - |
|
FG4700RF ANT 480MHZ WHIP STR N FEM |
1,546 |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 480MHz | 470MHz ~ 490MHz | Whip, Straight | 1 | 2 | - | 0dBd | 200 W | - | N Type Female | - | - | - | Bracket Mount | 20.000" (508.00mm) | - |
|
GPSPSMMSMA/CRF ANT GPS PLUS BLK MSMA |
3,482 |
|
Datasheet | * | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CMS38606P-30NFRF ANT 450MHZ/700MHZ DOME PNL MT |
3,493 |
|
Datasheet | CBRS | Bulk | Active | Cellular | Wide Band | 450MHz, 700MHz, 850MHz, 1.4GHz, 2.4GHz, 5GHz | 380MHz ~ 960MHz, 1.395GHz ~ 6GHz | Dome | 7 | 2.8, 1.7, 1.9, 1.4, 1.6, 1.9, 1.6 | - | 3.1dBi, 2.7dBi, 2.9dBi, 5.4dBi, 6.1dBi, 7dBi, 6.1dBi | 50 W | Cable - 305mm | N Type Female | IP67 | - | - | Panel Mount | 11.732" (298.00mm) | LTE |
|
AP-M2M2-CC-M-S22-BL-10ANTENNA PLUS M2MAX V2 MIMO ANTEN |
2,287 |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Module | 2 | - | - | 3dBi, 6dBi | - | Cable - 3.05m | SMA Male | IP67 | - | - | Magnetic | 2.185" (55.50mm) | LTE |
|
BB1360WSRF ANT 155MHZ WHIP STR NMO MAG |
3,784 |
|
Datasheet | - | Bulk | Active | - | VHF (f < 300MHz) | 155MHz | 136MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 4dBi | 100 W | - | NMO | - | - | - | Magnetic, Trunk | 19.500" (495.30mm) | - |
|
B1322WSRF ANT 132MHZ WHIP STR NMO BASE |
1,151 |
|
Datasheet | - | Bulk | Active | - | VHF (f < 300MHz) | 132MHz | 132MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 2.4dB | 100 W | - | NMO | - | - | - | Base Mount | 40.157" (102.00cm) | - |
|
GPSPSMMSMA/-NCGPS+, STUD |
2,060 |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
S8960BANT OMNI 2DBI STICK N FEMALE |
2,850 |
|
Datasheet | S8xxxB | Bulk | Active | WiFi | UHF (300MHz ~ 1GHz) | 928MHz | 896MHz ~ 960MHz | Whip, Straight | 1 | 1.5 | - | - | - | - | N Type Female | - | - | - | Bracket Mount | 17.500" (444.50mm) | WiMax™ |
|
BSA150CRADIAL BASE / WHIP, 3 DB, 144 - |
3,648 |
|
Datasheet | - | Box | Active | - | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | - | - | 2.5dBi | 200 W | - | - | - | - | - | Magnetic | 51.732" (131.40cm) | - |
|
VPJ69595B-92VC1ANTENNA AUTO 5 PORT |
1,940 |
|
Datasheet | VPJ | Box | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.165GHz, 2.45GHz, 2.66GHz, 5.4GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.62GHz, 2.4GHz ~ 2.5GHz, 2.62GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz | Module | 8 | 3.1 | - | 5dBi | 5 W | Cable - 914mm, LNA | SMA Male (3), RP-SMA Male (2) | IP67 | - | - | Adhesive | 0.575" (14.60mm) | 2G, 3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, ISM, LTE, Wi-Fi |
|
PSQ24495-91RSMRF ANT 2.4GHZ/5.4GHZ FLAT PNL |
4,400 |
|
Datasheet | - | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Flat Panel | 2 | 2 | - | 7.7dB | 10 W | - | RP-SMA | IP67 | - | - | Bracket Mount | 1.575" (40.00mm) | Wi-Fi |
|
33-HC610E-28EMBEDDED IRIDIUM, ACTIVE |
2,723 |
|
Datasheet | - | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.62125GHz | 1.616GHz ~ 1.6265GHz | Helical | 1 | 1.8 | - | 3.7dBic | - | LNA, Filter | MCX Female | IP67 | - | - | Panel Mount | 1.524" (38.70mm) | Iridium® |
|
BMOY4705RF ANT 491MHZ YAGI N TYPE F POLE |
2,634 |
|
Datasheet | BMOY | Box | Active | - | UHF (300MHz ~ 1GHz) | 491MHz | 470MHz ~ 512MHz | Yagi, 5-Element | 1 | 1.5 | - | 9dBd | 150 W | - | N Type Female | - | - | - | Pole Mount | 34.000" (863.60mm) | ISM, LoRa, LPWAN |
|
MFB9155RF ANT 915MHZ WHIP STR N TYPE M |
3,261 |
|
Datasheet | MFB | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | - | - | 5dB | 150 W | Cable - 609.6mm | N Type Male | - | - | - | Bracket Mount | 50.748" (128.90cm) | - |
|
CFD69383P-30D43FRF ANT FLAT PANEL FML PANEL MT |
4,188 |
|
Datasheet | CBRS | Bulk | Active | Cellular, WiFi | Wide Band | - | - | Flat Panel | 3 | 2 | - | 6dBi | 50 W | Cable - 300mm | 4.3/10 - Female | - | - | - | Panel Mount | 0.299" (7.60mm) | LTE, WiMax™ |
|
VFD69383W2NNN-518RANT LOW PROFILE 2-PORT SHARKFIN |
3,980 |
|
Datasheet | - | Bulk | Active | Cellular, General ISM | Wide Band | 752MHz, 859MHz, 920MHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.6GHz, 3.55GHz | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.69GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.18GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz | Dome | 9 | 2 | - | 0.2dBi, 1dBi, 1.5dBi, 3.6dBi, 3.5dBi, 2.9dBi, 3.2dBi, 4dBi, 5.1dBi | 10 W | Cable - 5.18m | SMA Male | IP67 | - | - | Panel Mount | 1.890" (48.00mm) | 3G, 4G, 5G, ISM, LTE |
|
|
MYA1505KNRF ANT 162MHZ YAGI S0239 BRKT |
3,048 |
|
Datasheet | MYA | Tube | Active | - | VHF (f < 300MHz) | 162MHz | 150MHz ~ 174MHz | Yagi, 5-Element | 1 | 1.5 | - | 9.2dBi | 250 W | - | SO239 | - | - | - | Bracket Mount | 72.000" (182.88cm) | - |
|
|
MYA1506KRF ANT 162MHZ YAGI S0239 BRKT |
1,111 |
|
Datasheet | MYA | Tube | Active | - | VHF (f < 300MHz) | 162MHz | 150MHz ~ 174MHz | Yagi, 6-Element | 1 | 1.5 | - | 10.2dBi | 250 W | - | SO239 | - | - | - | Bracket Mount | 103.937" (264.00cm) | - |
|
MIKROE-4480GNSS ACTIVE EXTERNAL ANTENNA |
4,728 |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.223GHz, 1.5825GHz | 1.197GHz ~ 1.249GHz, 1.559GHz ~ 1.606GHz | Module | 2 | 2 | - | 2dBic, 3.5dBic | - | Cable - 5m, LNA, Filter | SMA Male | - | - | - | Magnetic | 0.886" (22.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
