RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YBS00A1AACERAMIC ANTENNA,GNSS,L1/L5 |
4,721 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.585GHz | 1.166GHz ~ 1.186GHz, 1.559GHz ~ 1.606GHz | Ceramic Patch | 2 | 2 | - | 3.55dBi, 3.55dBi | - | LNA, Filter | I-PEX-1 | - | - | - | Chassis Mount | 0.543" (13.80mm) | BeiDou, Galileo, GLONASS, GNSS,GPS, LTE |
|
NMOQBBASE / WHIP, UNITY, 136 - 512 MH |
2,449 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 324MHz | 136MHz ~ 512MHz | Whip, Straight | 1 | 1 | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 23.000" (584.20mm) | - |
|
PCTMI2458-RPCRF ANT 2.45GHZ WHIP STR RP-TNC |
1,235 |
|
Datasheet | PCTMI | Box | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.535GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.92GHz | Whip, Straight | 2 | 2 | - | 3dBi, 5dBi | 5 W | - | RP-TNC | IPX7 | - | - | Panel Mount | 3.260" (82.80mm) | Bluetooth, Wi-Fi |
|
WRL-18153MULTI-BAND 4G/3G/2G MONOPOLE ANT |
2,891 |
|
Datasheet | - | Bulk | Active | Cellular, Navigation | Wide Band | 764MHz, 892MHz, 1.795GHz, 1.92GHz, 1.94GHz, 2.35GHz, 2.59GHz, 3.55GHz | 704MHz ~ 824MHz, 824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Whip, Tilt/Swivel | 8 | - | - | 1.4dBi, 2.9dBi, 3.5dBi, 3.7dBi, 2.9dBi, 3.4dBi, 2.6dBi, 5.9dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 2.835" (72.00mm) | 2G, 3G, 4G, 5G, Cellular, GSM, LTE, NB-IOT |
|
MHB5800RF ANT 159MHZ WHIP STR BASE MNT |
4,407 |
|
Datasheet | MHB | Bag | Active | - | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 200 W | - | - | - | - | - | Base Mount | - | - |
|
710211RF ANT 875MHZ MOD SMA M SCREW |
4,930 |
|
Datasheet | SmartDisc | Box | Active | Cellular | Wide Band | 875MHz, 2.2GHz | 790MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Module | 2 | 3 | - | 2.15dBi, 3.15dBi | 10 W | Cable - 2.5m | SMA Male | IP67 | - | - | Screw Mount | 1.024" (26.00mm) | 2G, 3G, 4G, NB-IoT |
|
SPWH15FTWHIP - STANDARD - 1/4 WAVE, FIEL |
2,058 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 456MHz | 400MHz ~ 512MHz | Whip, Straight | 1 | - | - | - | - | - | BNC | - | - | - | Connector Mount | 6.000" (152.40mm) | - |
|
MWB1320RF ANT 322MHZ WHIP STR NMO MNT |
3,336 |
|
Datasheet | MWB | Bag | Active | - | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | 322MHz | 132MHz ~ 512MHz | Whip, Straight | 1 | 2 | - | 1dBi | 150 W | - | - | - | - | - | NMO Mount | 22.000" (558.80mm) | TETRA/P25 |
|
BMLPV700RF ANT 2.2GHZ DOME PANEL MNT |
2,429 |
|
Datasheet | MLPV | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.2GHz | 1.7GHz ~ 2.7GHz | Dome | 1 | 2 | - | 4dBi | 100 W | - | - | IP67 | - | - | Panel Mount | 1.791" (45.50mm) | - |
MAXMFT(S).jpg "BMAXC233805")
|
BMAXC233805RF ANT 3.05GHZ WHIP STR NMO MNT |
1,862 |
|
Datasheet | MAX BASE | Bulk | Active | General ISM, WiFi | UHF (3GHz ~ 4GHz) | 3.05GHz | 2.3GHz ~ 3.8GHz | Whip, Straight | 1 | 1.5 | - | 5dBi | 100 W | - | - | - | - | - | NMO Mount | 4.750" (120.65mm) | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LTE, Wi-Fi |
|

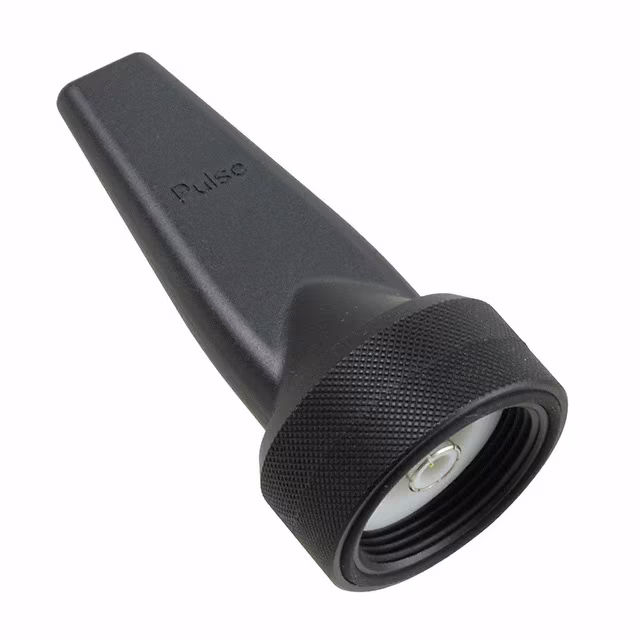

SLPT698/2170NMOHFRF ANT 829MHZ/1.9GHZ WHIP STR |
2,863 |
|
Datasheet | Shadow | Bulk | Active | Cellular, WiFi | Wide Band | 829MHz, 1.9GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz | Dome | 3 | 3, 2 | - | 4.5dBi, 5.6dBi, 4dBi | 10 W | - | NMO | IP67 | - | - | Base Mount | 3.000" (76.20mm) | LTE, WLAN |
|
MA204.A.LB.002RF ANT 1.5GHZ MODULE SMA ML ADH |
3,082 |
|
Datasheet | Stingray | Bag | Active | Cellular, Navigation | Wide Band | 1.5GHz | 800MHz ~ 2.2GHz | Module | 1 | 3, 2.5 | - | 28dB | - | LNA, Filter | SMA Male | IP65 | - | - | Adhesive | 0.425" (10.80mm) | CDMA, GPS, GSM, UMTS |
|
G420BNRF ANT 435MHZ WHIP STR BNC MALE |
3,523 |
|
Datasheet | G | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 435MHz | 420MHz ~ 450MHz | Whip, Straight | 1 | 1.5 | - | 2.5dB | 50 W | - | BNC Male | - | - | - | Connector Mount | 10.000" (254.00mm) | - |
|
BMLPV4900RF ANT 5.4GHZ DOME CONN MNT |
3,507 |
|
Datasheet | MLPV | Bag | Active | Bluetooth, General ISM, WiFi | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.9GHz | Dome | 1 | 1.5 | - | 4dBi | 150 W | - | - | IP67 | - | - | Connector Mount, NMO, Stud, Through Hole | 1.790" (45.47mm) | Bluetooth, ISM, LoRa, LPWAN, LMR/TETRA/P25, LTE, Wi-Fi |
|
|
BMLPV380RF ANT 395MHZ DOME PANEL MNT |
4,749 |
|
Datasheet | BMLPV | Bag | Active | - | UHF (300MHz ~ 1GHz) | 395MHz | 380MHz ~ 410MHz | Dome | 1 | 2 | - | 1dBi | 100 W | - | - | IP67 | - | - | Panel Mount | 3.380" (85.85mm) | - |
|
|
BMLPV450RF ANT 481MHZ DOME PANEL MNT |
3,598 |
|
Datasheet | BMLPV | Bag | Active | - | UHF (300MHz ~ 1GHz) | 481MHz | 450MHz ~ 512MHz | Dome | 1 | 2 | - | 1dBi | 100 W | - | - | IP67 | - | - | Panel Mount | 3.380" (85.85mm) | - |
|
HP5010ARF ANT 1.17645GZ CER PATCH PIN |
1,053 |
|
Datasheet | - | Tray | Not For New Designs | Cellular | Wide Band | 1.17645GHz, 1.2276GHz, 1.561GHz, 1.57542GHz, 1.602GHz | 1.176GHz ~ 1.2276GHz, 1.561GHz ~ 1.61GHz | Ceramic Patch | 6 | 2, 2, 2, 2, 2 | - | 3dBi, 3.7dBi, 3.6dBi, 3.7dBi, 4dBi | - | - | Pin | - | - | - | Adhesive | 0.413" (10.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
ANT-WS-AB-RM-05-200RF ANT 2.4GHZ WHIP STR RP-SMA ML |
1,053 |
|
Datasheet | - | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | 2 | - | 5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | - | Wi-Fi |
|
LPT698/2700DMNRF ANT 829MHZ/1.94GHZ DOME N |
1,436 |
|
Datasheet | - | Bag | Active | - | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Dome | 3 | 2.5, 2 | - | 3.1dBi, 4.4dBi, 5dBi | 10 W | - | N Type | IP67 | - | - | Connector Mount | - | General Purpose |
|
|
TFX257.AFLEXIBLE TRANSPARENT WI-FI ANT |
1,666 |
|
Datasheet | - | Bag | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | - | 4.59dBi, 3.58dBi, 2.04dBi | 2 W | Transparent | Fakra | - | - | - | Surface Mount | 0.020" (0.50mm) | Wi-Fi |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
