RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1461860200RF ANT 1.561/1.575GHZ FLAT 200MM |
847 |
|
Datasheet | 146186 | Bulk | Active | Navigation, WiFi | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz | 1.575GHz ~ 1.602GHz, 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz | Flat Patch | 5 | - | -10dB | 2.7dBi, 3.5dBi, 4.2dBi | 2 W | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | BeiDou, GLONASS, WiMax, WLAN, Wi-Fi |
|
21249801502.4GHZ ON FULL METAL CABL |
117 |
|
Datasheet | - | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | PCB Trace | 1 | - | -6dB | 3.6dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.138" (3.50mm) | Bluetooth, WirelessHART, Wi-Fi, Zigbee™ |
|
2144150001WI-FI/BLUETOOTH HINGED EXT ANTEN |
580 |
|
Datasheet | 214415 | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | -10dB | 5.3dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.268" (108.40mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
21406101502.4/5GHZ ON FULL METAL CABLED AN |
1,740 |
|
Datasheet | 214061 | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 1 | - | -6dB, -9dB | 3.8dBi, 6.4dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.138" (3.50mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
2144140011ISM/DSRC ANTENNA_HINGED_B_F |
1,029 |
|
Datasheet | 214414 | Tray | Active | General ISM | SHF (f > 4GHz) | 5.9GHz | 5.8GHz ~ 6GHz | Whip, Tilt | 1 | - | -10dB | 3.9dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.268" (108.40mm) | DSRC, ISM |
|
1052630003RF ANT 850MHZ/900MHZ FLAT 200MM |
385 |
|
Datasheet | 105263 | Tray | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2GHz, 2.6GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 6 | - | -7.5dB, -8dB, -8.5dB, -8.8dB, -9dB, -12dB | 1.3dBi, 1.7dBi, 2dBi, 2.2dBi, 3dBi | 2 W | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | GSM, LTE, UMTS |
|
2042870100RF ANT 433MHZ FLAT PATCH U.FL |
158 |
|
Datasheet | 204287 | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Flat Patch | 1 | - | -10dB | 0.8dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.098" (2.50mm) | ISM |
|
2161960001MOLEX LORA EXTERNAL ANTENNA_M |
1,930 |
|
Datasheet | 216196 | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 866MHz | 856MHz ~ 876MHz | Whip, Tilt | 1 | - | -11dB | 2.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.717" (196.00mm) | ISM, LoRa |
|

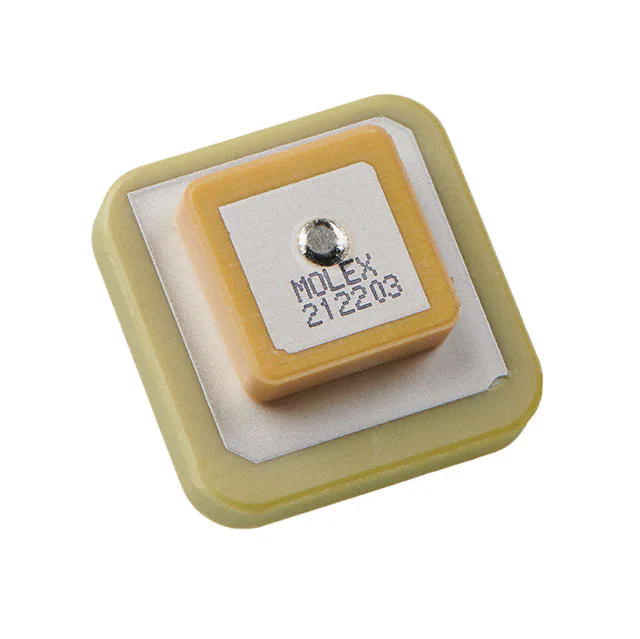

2122030001GPS L1/L5 25MM STACKED PATCH |
427 |
|
Datasheet | 212203 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz | 1.171GHz ~ 1.181GHz, 1.57GHz ~ 1.58GHz | Ceramic Patch | 2 | - | -20dB, -15dB | 3.1dBi, 4.9dBi | 2 W | - | - | - | - | - | Adhesive | 0.315" (8.00mm) | GNSS, GPS |
|
2116240001GPS L1/L5 & GLONASS 36MM STACKED |
201 |
|
Datasheet | 211624 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz, 1.602GHz | 1.171GHz ~ 1.181GHz, 1.57GHz ~ 1.58GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 3 | - | -10dB | 2.1dBi, 4.5dBi, 4.2dBi | - | - | Solder | - | - | - | Adhesive | 0.276" (7.00mm) | GLONASS, GPS |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
