RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JTT1596S18P4X1596MHZ PATCH ANTENNA, DIMENSION |
4,701 |
|
Datasheet | - | Active | - | UHF (1GHz ~ 2GHz) | 1.596GHz | 1.593GHz ~ 1.599GHz | Ceramic Patch | 1 | - | 15dB | -1dBi | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|
JLT1596S20P4X1596MHZ PATCH ANTENNA, DIMENSION |
3,272 |
|
Datasheet | - | Active | - | UHF (1GHz ~ 2GHz) | 1.596GHz | 1.593GHz ~ 1.599GHz | Ceramic Patch | 1 | - | 15dB | - | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|
JLTD1575-1602S25N4XGPS/GLONASS SMD PATCH ANTENNA, S |
1,258 |
|
Datasheet | - | Active | - | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | - | 10dB | - | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|
JTT1575S35P4XGPS PATCH ANTENNA, DIMENSION 35* |
4,533 |
|
Datasheet | - | Active | - | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | - | 15dB | 2dBi | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|
JTT1575S35P3XGPS PATCH ANTENNA, DIMENSION 35* |
3,227 |
|
Datasheet | - | Active | - | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | 3 | 15dB | 6.5dBi | - | - | Pin | - | - | - | Surface Mount | 0.118" (3.00mm) | - | |
|
JTTD1575-1602S35P4XGPS/GLONASS SMD PATCH ANTENNA, D |
4,011 |
|
Datasheet | - | Active | - | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.572GHz ~ 1.578GHz, 1.599GHz ~ 1.605GHz | Ceramic Patch | 2 | - | 15dB | 2dBi | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|
JTT915S25P4X915MHZ PATCH ANTENNA, DIMENSION |
1,193 |
|
Datasheet | - | Active | - | UHF (300MHz ~ 1GHz) | 903MHz | 900MHz ~ 906MHz | Ceramic Patch | 1 | - | 10dB | - | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|
JLT868S25P4X868MHZ PATCH ANTENNA, DIMENSION |
4,900 |
|
Datasheet | - | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 865MHz ~ 871MHz | Ceramic Patch | 1 | - | 15dB | - | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|
JLT868S50P9X868MHZ PATCH ANTENNA, DIMENSION |
2,665 |
|
Datasheet | - | Active | - | UHF (300MHz ~ 1GHz) | 866.5MHz | 863.5MHz ~ 869.5MHz | Ceramic Patch | 1 | - | 15dB | - | - | - | Pin | - | - | - | Surface Mount | 0.354" (9.00mm) | - | |
|

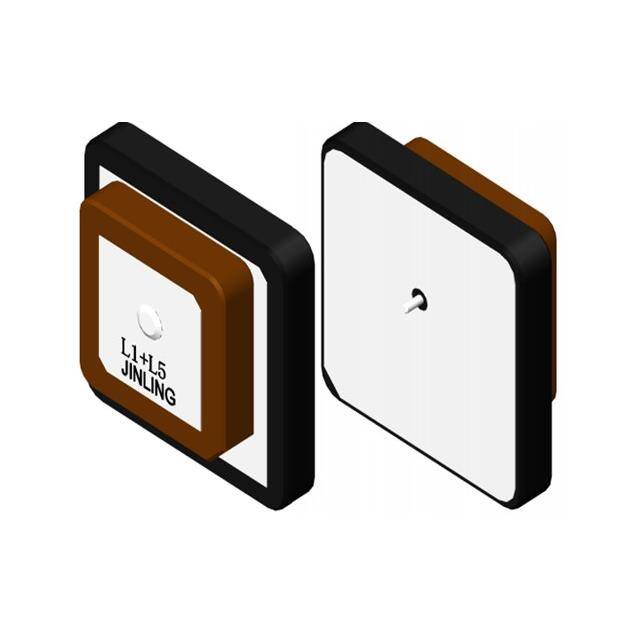

JLTD1176-1575S25-18P4-2XTWO LAYER GNSS PATCH ANTENNA |
3,645 |
|
Datasheet | - | Active | - | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz | 1.173GHz ~ 1.179GHz, 1.572GHz ~ 1.578GHz | Ceramic Patch | 2 | - | 10dB | - | - | - | Pin | - | - | - | Surface Mount | 0.236" (6.00mm) | - |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
