RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SZK-C-0W03WI-FI ANT 2.4-5GHZ FLAT PATCH IP |
500 |
|
Datasheet | AQUARII | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Flat Patch | 2 | 1.85, 1.9 | -10dB, -10dB | 1.85dBi, 5.5dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | WLAN |
|
21199691005.8-8.5GHZ AUTO FLEXIBLE ANTENNA |
693 |
|
Datasheet | 211996 | Tray | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 5.9GHz, 7GHz | 5.8GHz ~ 8.5GHz | Flat Patch | 2 | - | -10dB, -5dB | 5.5dBi, 6.4dBi | - | Cable - 100mm | MHF1 | - | - | - | Adhesive | 0.079" (2.00mm) | Bluetooth, UWB, Wi-Fi, Zigbee™ |
|
|
AN050201-01HRF ANT 433MHZ/868MHZ/5.8GHZ PCB |
233 |
|
Datasheet | AN050201 | Bulk | Active | General ISM, Lora | UHF (300MHz ~ 1GHz), SHF (f > 4GHz) | 433.93MHz, 866.50MHz, 5.5375GHz | 433.05MHz ~ 434.8MHz, 863MHz ~ 870MHz, 5.15GHz ~ 5.925GHz | PCB Trace | 3 | 1.93, 2.62, 3.57 | -10dB, -7dB, -5dB | -1dBi, 0.6dBi, 3.8dBi | 10 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Bracket | 0.039" (1.00mm) | IoT, ISM, LP-WAN, RFID, Smart Meters, WiFi 5 |
|
ANT-403-SPRF ANT 403MHZ CHIP SOLDER SMD |
1,815 |
|
Datasheet | Splatch® | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 403MHz | 400MHz ~ 405MHz | Chip | 1 | 1.9 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | MICS |
|
|
RAC00915-BBULK 900MHZ ANTENNA |
200 |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | Stamped Metal | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
|

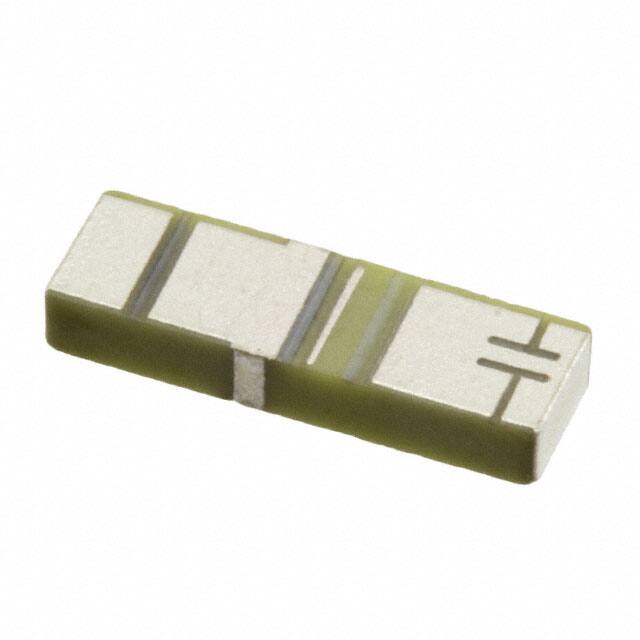

W3095RF ANT 1.575GHZ/1.602GHZ CHIP |
2,098 |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | Wide Band | 1.575GHz, 1.602GHz, 2.4GHz, 5.4GHz | 1.575GHz ~ 1.61GHz, 2.4GHz ~ 2.49GHz, 4.9GHz ~ 5.85GHz | Chip | 3 | 1.2 | - | 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | GLONASS, GPS |
|
|
RAC02456-BBULK 2.4GHZ/5GHZ/6GHZ TRI-BAND A |
200 |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz, 6GHz | - | Stamped Metal | 3 | - | - | - | - | - | - | - | - | - | - | - | - |
|
2118326-1RF ANT 5GHZ PCB TRACE U.FL ADH |
3,791 |
|
Datasheet | - | Bulk | Active | WiFi | SHF (f > 4GHz) | 5GHz | 4.9GHz ~ 5.875GHz | PCB Trace | 1 | 2.5 | - | 2.4dBi | 3 W | Cable - 120mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | Wi-Fi, WLAN |
|
|
ACG0502UUWB ANT 3.7GHZ- 4.2GHZ SMD CHIP |
2,972 |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | Wide Band | 3.95GHz | 3.7GHz ~ 4.2GHz | Chip | 1 | 2 | - | - | - | Filter | - | - | - | - | Surface Mount | 0.039" (1.00mm) | UWB |
|
SATPC-24A33AC5-UWB2RF ANT 6250-8250MHZ UWB CABLE |
498 |
|
Datasheet | - | Bulk | Active | WiFi | SHF (f > 4GHz) | 7.25GHz | 6.25GHz ~ 8.25GHz | PCB Trace | 1 | 2 | - | 5.1dBi | - | Cable - 100mm | - | - | - | - | Surface Mount | 0.010" (0.25mm) | 802.11a/b/g/-c |
|
RFMTA280715IMAB301RF ANT 2.4GHZ STAMPED MET IPEX |
765 |
|
Datasheet | - | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Stamped Metal | 1 | 2 | -10dB | 2.8dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.142" (3.60mm) | ISM |
|
2195630-1COAXIAL CABLF,RP-SMA |
2,102 |
|
Datasheet | - | Box | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | 2 | -10dB | 2dBi | - | - | - | - | - | - | Connector Mount | 4.252" (108.00mm) | Wi-Fi |
|
1513431-1RF ANT 2.4GHZ PCB TRACE SLDR SMD |
13,237 |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | PCB Trace | 1 | 2 | - | 0dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.79mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
A1001011AUTOMOTIVE GPS/GNSS ( ON/OFF GRO |
2,248 |
|
Datasheet | A | Tape & Reel (TR) | Active | General ISM, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 898MHz, 1.561GHz, 1.575GHz, 1.575GHz, 1.603GHz | 868MHz ~ 928MHz, 1.559GHz ~ 1.563GHz, 1.559GHz ~ 1.591GHz, 1.593GHz ~ 1.61GHz | Chip | 5 | 1.5, 2.5 | - | 1dBi, 0.96dBi, 0.87dBi, 0.96dBi, 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
SZK-C-2G19GNSS ANT FLAT PATCH IPEX |
200 |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.584GHz | 1.559GHz ~ 1.609GHz | Flat Patch | 1 | - | - | 2.79dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
2196110050WIFI 6E ANTENNA 50MM CABLE |
828 |
|
Datasheet | 219611 | Bag | Active | 802.15.4, Bluetooth | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | -10dB | 2.67dBi, 3.67dBi, 4.12dBi | 2 W | Cable - 50mm | MHF1 | - | - | - | Adhesive | 0.079" (2.00mm) | Bluetooth, Zigbee™ |
|
|
IBF-H040MPXB-W012ANT 2.4 FPC W. 120MM CABLE MHF1 |
1,999 |
|
Datasheet | H040 | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Flat Patch | 1 | 1.3 | -17.7dB | 3.1dBi | 1 W | Cable - 120mm | MHF, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, WiFi, ZigBee |
|
ATIFLTE-5717-80RF ANT 4G/LTE FLEX PCB 5717 80MM |
687 |
|
Datasheet | ATIFLTE | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 725MHz, 895MHz, 2.2GHz | 650MHz ~ 800MHz, 810MHz ~ 980MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 3 | 2.5 | - | 2dBi | - | Cable - 80mm | I-PEX | - | - | - | Adhesive | - | 4G, LTE |
|
ATIFLTE-3217RF ANT 4G/LTE FLEX PCB 3217 60MM |
279 |
|
Datasheet | ATIFLTE | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 725MHz, 895MHz, 2.2GHz | 650MHz ~ 800MHz, 810MHz ~ 980MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 3 | 2.5 | - | 2dBi | - | Cable - 60mm | I-PEX | - | - | - | Adhesive | - | 4G, LTE |
|
A5645HA5645H MICA 2.4 GHZ SMD HALOGEN |
91,894 |
|
Datasheet | Mica | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 1.8 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | 802.11a/b/g/n, Bluetooth, Wi-Fi, ZigBee™ |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
