RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSP69001299TRANTENNA PCB, IOT 35X9 |
5,598 |
|
Datasheet | - | Tape & Reel (TR) | Not For New Designs | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 1.94GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 2 | - | -2.5dB, -3dB | -2dBi, 1.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | Cellular, LTE Cat 1, LTE-M, NB-IoT, loRa, SigFox |
|
2445750-1ANTENNA 2.4GHZ HELICAL VERT THM |
2,367 |
|
Datasheet | - | Tray | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Helical | 1 | 1.8 | - | 3dBi | 15 W | - | Solder | - | - | - | Surface Mount | 1.350" (34.29mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
|
SWA425AANT WIFI 6E IPEX MHF 4L 95MM |
244 |
|
Datasheet | - | Bag | Active | WiFi | Wide Band | 2.45GHz, 6.137GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.125GHz | Flat Patch | 2 | - | -5dB | 3dBi, 4.5dBi | - | Cable - 95mm | I-PEX MHF4L | - | - | - | Surface Mount | 0.144" (3.65mm) | Wi-Fi |
|

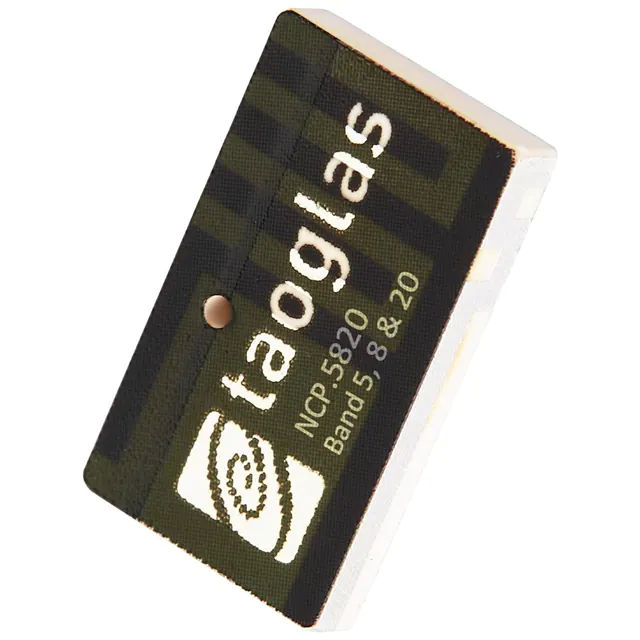

NCP.5820NB-IOT CERAMIC PATCH ANTENNA FOR |
1,577 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 826.5MHz, 859MHz, 920MHz | 791MHz ~ 862MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz | Ceramic Patch | 3 | - | -4.5dB, -5dB | -0.3dBi, 1.1dBi, 1.7dBi, 0.6dBi, 1.2dBi | 5 W | - | - | - | - | - | Surface Mount | 0.079" (2.00mm) | - |
|
1001435M0-AA10L0025ANTENNA ASSY, WLAN 25 |
1,424 |
|
Datasheet | - | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Stamped Metal | 2 | 2 | - | 4.2dBi, 4.7dBi, 6.4dBi, 6dBi | 500 mW | Cable - 25mm | Solder | - | - | - | Adhesive | 0.382" (9.70mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
YF0002DAEMBEDDED, 700-960, 1710-2700, 33 |
1,000 |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 830MHz, 2.21GHz, 4.15GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 5GHz | Module | 3 | 5 | - | 3dBi, 3dBi, 3dBi | - | - | - | - | - | - | Screw | 0.394" (10.00mm) | 5G |
|
|
YF0002CAEMBEDDED, 1710-2700, 3300-5000, |
994 |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 2.21GHz, 4.15GHz | 1.71GHz ~ 2.7GHz, 3.3GHz ~ 5GHz | Module | 2 | 5 | - | 3dBi, 3dBi | - | - | - | - | - | - | Surface Mount | 0.394" (10.00mm) | 5G |
|
|
9003034F0-AA10L01005G HIGH BAND FPC ANTENNA, 100MM |
985 |
|
Datasheet | - | Box | Active | Cellular | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.395GHz, 4.15GHz | 2.1GHz ~ 2.69GHz, 3.3GHz ~ 5GHz | Flat Patch | 2 | - | -7.7dB, -7.3dB | 4.2dBi, 4.3dBi | - | Cable - 100mm | MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | 5G, IoT, LTE, M2M |
|
|
YF0002AAEMBEDDED, 700-960, 1710-2700, 33 |
973 |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 830MHz, 2.21GHz, 4.15GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 5GHz | Module | 3 | 5 | - | 3dBi, 3dBi, 3dBi | - | - | - | - | - | - | - | 0.394" (10.00mm) | 5G |
|
|
YCGA003AAGNSS PATCH STANDARD ANTENNA 35*3 |
840 |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz | 1.56GHz ~ 1.61GHz | Ceramic Patch | 1 | - | - | - | - | - | - | - | - | - | - | 0.157" (4.00mm) | GNSS |
|
|
ST0224-10-401-ARF ANTENNA INTERNAL AMC PLUG DUA |
469 |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -10dB | 2.1dBi | 1 W | Cable - 100mm | - | - | - | - | Adhesive | 0.008" (0.20mm) | Wi-Fi |
|
ANT-2.4-FPC-LV150UFANT 2.4 FPC 45X7 150MM CBL UFL |
2,769 |
|
Datasheet | ANT-2.4-FPC-LV | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.7 | - | 4.3dBi | 2 W | Cable - 150mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
EMB-910001WIFI EMBEDDED 5GHZ 4.3DBI 6" UFL |
4,989 |
|
Datasheet | - | Bulk | Active | WiFi | SHF (f > 4GHz) | 5.512GHz | 5.15GHz ~ 5.875GHz | - | 1 | 2 | - | 4.3dBi | - | Cable - 152.4mm | U.FL | - | - | - | Screw | 0.035" (0.90mm) | Wi-Fi |
|
|
ANT-5GW-FPC-LH150UFANT 5G FPC 120X20 150MM UFL |
961 |
|
Datasheet | ANT-5GW-FPC-LH | Bag | Active | Cellular | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.947GHz, 2.495GHz, 3.75GHz, 4.7GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Flat Patch | 9 | 1.6, 1.7, 1.8, 1.9, 2, 2.5, 2.7, 4.7 | - | 5dBi, 5dBi, 5.5dBi, 6dBi, 5.2dBi, 5.1dBi, 7dBi, 6.2dBi, 6.8dBi | 2 W | Cable - 150mm | MHF1, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | 2G, 3G, 4G, 5G, LTE |
|
|
L9000230-01ANTENNA WIFI6/6E FPC 20X110 100 |
4,659 |
|
Datasheet | * | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EFB2455A3S-15MH4LANT, FLEXPIFA, 2.4/5.5GHZ, 150MM |
118 |
|
Datasheet | FlexPIFA™ | Bag | Active | Bluetooth, WiFi | Wide Band | 2.44GHz, 5.4GHz | 2.4GHz ~ 2.48GHz, 4.9GHz ~ 5.9GHz | Flat Bar | 2 | 2.5, 3 | - | 2.5dBi, 3dBi | - | Cable - 150mm | MHF4L | - | - | - | Adhesive | 0.500" (12.70mm) | Bluetooth, Wi-Fi |
|
|
P822603BROADBAND 5G/LTE/LPWA PCB ANTENN |
396 |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Chip | 3 | 2.5, 3.3, 3.4 | - | 0.7dBi, 1dBi, 0.4dBi | 2 W | - | - | - | - | - | Surface Mount | 0.126" (3.20mm) | LoRa, LTE, Sigfox |
|
|
P822604BROADBAND 5G/LTE/LPWA PCB ANTENN |
396 |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Chip | 3 | 2.5, 3.3, 3.4 | - | 0.7dBi, 1dBi, 0.4dBi | 2 W | - | - | - | - | - | Surface Mount | 0.126" (3.20mm) | LoRa, LTE, Sigfox |
|
|
ST0543-00-N08-USINGLE BAND EMBEDDED RF ANTENNA |
2,998 |
|
Datasheet | - | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.56GHz ~ 1.59GHz | Chip | 1 | - | -10dB | 2.9dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | GPS |
|
|
ST1225-10-401-ARF ANTENNA INTERNAL AMC PLUG MUL |
496 |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 6.18GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.2GHz | PCB Trace | 2 | - | -7dB, -6dB | 2.6dBi | 1 W | Cable - 100mm | - | - | - | - | Adhesive | 0.033" (0.85mm) | Wi-Fi |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
