Resonators
Review Resonators Crystals, Oscillators, Resonators components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Features | Capacitance | Impedance | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AWSCR-3.58CPLA-C47-T4CERAMIC RES 3.5800MHZ 47PF SMD |
2,424 |
|
Datasheet | AWSCR-CPLA | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 3.58 MHz | ±0.3% | ±0.5% | Built in Capacitor | 47 pF | 30 Ohms | -40°C ~ 85°C | Surface Mount | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.059" (1.50mm) |
|
AWSCR-10.00CELA-C33-T3CERAMIC RES 10.0000MHZ 33PF SMD |
1,856 |
|
Datasheet | AWSCR-CELA | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 10 MHz | ±0.2% | ±0.5% | Built in Capacitor | 33 pF | 40 Ohms | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
|
AWSCR-7.37CPLA-C30-T4CERAMIC RES 7.3700MHZ 30PF SMD |
1,423 |
|
Datasheet | AWSCR-CPLA | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 7.37 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | 30 Ohms | -40°C ~ 85°C | Surface Mount | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.059" (1.50mm) |
|
AWSCR-12.00CELB-C10-T3CERAMIC RES 12.0000MHZ 10PF SMD |
2,375 |
|
Datasheet | AWSCR-CELB | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 12 MHz | ±0.2% | ±0.5% | Built in Capacitor | 10 pF | 40 Ohms | -40°C ~ 125°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
|
AWSCR-12.00CELB-C33-T3CERAMIC RES 12.0000MHZ 33PF SMD |
2,302 |
|
Datasheet | AWSCR-CELB | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 12 MHz | ±0.2% | ±0.5% | Built in Capacitor | 33 pF | 40 Ohms | -40°C ~ 125°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
ASR418S2-TSAW RES 418.0000MHZ SMD |
1,076 |
|
Datasheet | ASR418S2 | 4-SMD, No Lead | Tape & Reel (TR) | Active | SAW | 418 MHz | - | ±75kHz | - | - | 23 Ohms | -40°C ~ 85°C | Surface Mount | 0.197" L x 0.138" W (5.00mm x 3.50mm) | 0.055" (1.40mm) |
|
ASR433.42E-TSAW RES 433.4200MHZ SMD |
1,050 |
|
Datasheet | ASR | 8-SMD, No Lead | Tape & Reel (TR) | Active | SAW | 433.42 MHz | - | - | - | - | - | -40°C ~ 85°C | Surface Mount | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.053" (1.35mm) |
|
AWSZT-4.00CP-T4CERAMIC RES 4.0000MHZ SMD |
6,795 |
|
Datasheet | AWSZT-CP | 2-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 4 MHz | ±0.3% | ±0.5% | - | - | 30 Ohms | -25°C ~ 85°C | Surface Mount | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.067" (1.70mm) |
|

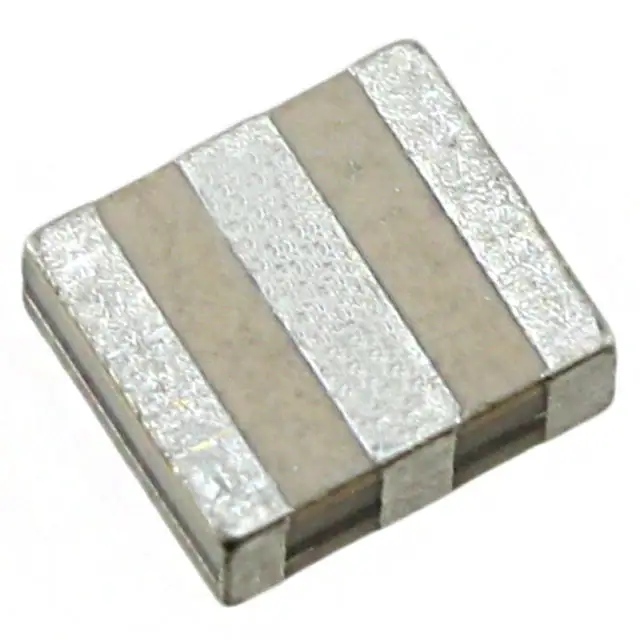

AWSCR-20.00MTD-TCERAMIC RES 20.0000MHZ 15PF SMD |
2,940 |
|
Datasheet | AWSCR-MTD | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 20 MHz | ±0.5% | ±0.5% | Built in Capacitor | 15 pF | 40 Ohms | -40°C ~ 85°C | Surface Mount | 0.185" L x 0.161" W (4.70mm x 4.10mm) | 0.067" (1.70mm) |
|
|
AWSCR-12.00CELA-C10-T3CERAMIC RES 12.0000MHZ 10PF SMD |
2,631 |
|
Datasheet | AWSCR-CELA | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 12 MHz | ±0.2% | ±0.5% | Built in Capacitor | 10 pF | 40 Ohms | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
Frequently Asked Questions
What are Resonators components used for?
Resonators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Resonators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Resonators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
