Single Diodes

Explore Single Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.

For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.

Mfr. Part #	Availability	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Technology	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Speed	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Grade	Qualification	Mounting Type	Supplier Device Package	Operating Temperature - Junction
1N458ATR HIGH CONDUCTANCE LOW LEAKAGE DIO Fairchild Semiconductor	278,843	RFQ	Datasheet	-	DO-204AH, DO-35, Axial	Bulk	Active	Standard	150 V	500mA	1 V @ 100 mA	Standard Recovery >500ns, > 200mA (Io)	-	25 µA @ 125 V	-	-	-	Through Hole	DO-204AH (DO-35)	175°C (Max)
1N916B RECTIFIER DIODE, 0.2A, 100V, DO- Fairchild Semiconductor	199,965	RFQ	Datasheet	-	DO-204AH, DO-35, Axial	Bulk	Active	Standard	100 V	200mA	1 V @ 20 mA	Small Signal =< 200mA (Io), Any Speed	4 ns	5 µA @ 75 V	2pF @ 0V, 1MHz	-	-	Through Hole	DO-204AH (DO-35)	-65°C ~ 175°C
1N914BTR RECTIFIER DIODE, 0.2A, 100V, DO- Fairchild Semiconductor	186,261	RFQ	Datasheet	-	DO-204AH, DO-35, Axial	Bulk	Active	Standard	100 V	200mA	1 V @ 100 mA	Small Signal =< 200mA (Io), Any Speed	4 ns	5 µA @ 75 V	4pF @ 0V, 1MHz	-	-	Through Hole	DO-35	-65°C ~ 175°C
1N914BWT DIODE GEN PURP 75V 200MA SOD523F Fairchild Semiconductor	152,000	RFQ	Datasheet	-	SC-79, SOD-523F	Bulk	Active	Standard	75 V	200mA	1 V @ 100 mA	Small Signal =< 200mA (Io), Any Speed	4 ns	5 µA @ 75 V	4pF @ 0V, 1MHz	-	-	Surface Mount	SOD-523F	-55°C ~ 150°C
FDH400TR DIODE GEN PURP 150V 200MA DO35 Fairchild Semiconductor	140,000	RFQ	Datasheet	-	DO-204AH, DO-35, Axial	Bulk	Active	Standard	150 V	200mA	1.1 V @ 300 mA	Small Signal =< 200mA (Io), Any Speed	50 ns	100 nA @ 150 V	2pF @ 0V, 1MHz	-	-	Through Hole	DO-204AH (DO-35)	175°C (Max)
BAV21 RECTIFIER DIODE, 0.2A, 250V, DO- onsemi	139,194	RFQ	Datasheet	-	DO-204AH, DO-35, Axial	Bulk	Active	Standard	250 V	200mA	1.25 V @ 200 mA	Small Signal =< 200mA (Io), Any Speed	50 ns	100 nA @ 200 V	5pF @ 0V, 1MHz	-	-	Through Hole	DO-35	175°C (Max)
PMEG4002AESFCYL PMEG4002AESF - 40 V, 0.2 A LOW V Nexperia USA Inc.	126,000	RFQ	Datasheet	-	0201 (0603 Metric)	Bulk	Active	Schottky	40 V	200mA	525 mV @ 200 mA	Small Signal =< 200mA (Io), Any Speed	1.25 ns	80 µA @ 40 V	18pF @ 1V, 1MHz	-	-	Surface Mount	DSN0603-2	-55°C ~ 150°C
PMEG4005AESFCYL PMEG4005AESF - 40V, 0.5A LOW VF Nexperia USA Inc.	105,000	RFQ	Datasheet	-	0201 (0603 Metric)	Bulk	Active	Schottky	40 V	500mA	820 mV @ 500 mA	Fast Recovery =< 500ns, > 200mA (Io)	1.25 ns	80 µA @ 40 V	18pF @ 1V, 1MHz	-	-	Surface Mount	DSN0603-2	150°C
DFD05TL-BT DFD05 - RECTIFIER DIODE, 0.5A, 8 onsemi	99,000	RFQ	Datasheet	*	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
FDLL914 RECTIFIER DIODE, 0.2A, 100V, DO- Fairchild Semiconductor	98,977	RFQ	Datasheet	-	DO-213AC, MINI-MELF, SOD-80	Bulk	Active	Standard	100 V	200mA	1 V @ 10 mA	Small Signal =< 200mA (Io), Any Speed	4 ns	5 µA @ 75 V	4pF @ 0V, 1MHz	-	-	Surface Mount	SOD-80	175°C (Max)
FDLL914B RECTIFIER DIODE, 0.2A, 100V, DO- Fairchild Semiconductor	92,500	RFQ	Datasheet	-	DO-213AC, MINI-MELF, SOD-80	Bulk	Active	Standard	100 V	200mA	1 V @ 5 mA	Small Signal =< 200mA (Io), Any Speed	4 ns	5 µA @ 75 V	4pF @ 0V, 1MHz	-	-	Surface Mount	SOD-80	175°C (Max)
1N459-T50R DIODE GEN PURP 200V 500MA DO35 onsemi	90,000	RFQ	Datasheet	-	DO-204AH, DO-35, Axial	Bulk	Active	Standard	200 V	500mA	1 V @ 100 mA	Standard Recovery >500ns, > 200mA (Io)	-	25 nA @ 175 V	6pF @ 0V, 1MHz	-	-	Through Hole	DO-35	175°C (Max)
DFD05TE-BT DFD05 - RECTIFIER DIODE, 0.5A, 8 onsemi	87,000	RFQ	Datasheet	*	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
BAY72TR RECTIFIER DIODE, 0.2A, 125V Fairchild Semiconductor	80,000	RFQ	Datasheet	-	DO-204AH, DO-35, Axial	Bulk	Active	Standard	125 V	200mA	1 V @ 100 mA	Small Signal =< 200mA (Io), Any Speed	50 ns	100 nA @ 100 V	5pF @ 0V, 1MHz	-	-	Through Hole	DO-204AH (DO-35)	175°C (Max)
1N4448 HIGH CONDUCTANCE FAST DIODE Fairchild Semiconductor	79,800	RFQ	Datasheet	-	DO-204AH, DO-35, Axial	Bulk	Active	Standard	100 V	200mA	1 V @ 100 mA	Small Signal =< 200mA (Io), Any Speed	4 ns	5 µA @ 75 V	2pF @ 0V, 1MHz	-	-	Through Hole	DO-35	-65°C ~ 175°C
1N914 RECTIFIER DIODE, 0.2A, 100V, DO- Fairchild Semiconductor	78,600	RFQ	Datasheet	-	DO-204AH, DO-35, Axial	Bulk	Active	Standard	100 V	200mA	1 V @ 10 mA	Small Signal =< 200mA (Io), Any Speed	4 ns	5 µA @ 75 V	4pF @ 0V, 1MHz	-	-	Through Hole	DO-35	-65°C ~ 175°C
PMEG2005AESFCYL PMEG2005AESF - 20V, 0.5A LOW VF Nexperia USA Inc.	72,000	RFQ	Datasheet	-	0201 (0603 Metric)	Bulk	Active	Schottky	20 V	500mA	550 mV @ 500 mA	Fast Recovery =< 500ns, > 200mA (Io)	1.9 ns	45 µA @ 20 V	25pF @ 1V, 1MHz	-	-	Surface Mount	DSN0603-2	150°C
PMEG2005ESFCYL PMEG2005ESF - 20V, 0.5A LOW VF M Nexperia USA Inc.	72,000	RFQ	Datasheet	-	0201 (0603 Metric)	Bulk	Active	Schottky	20 V	500mA	620 mV @ 500 mA	Fast Recovery =< 500ns, > 200mA (Io)	1.9 ns	3.5 µA @ 20 V	25pF @ 1V, 1MHz	-	-	Surface Mount	DSN0603-2	150°C
BAX16 RECTIFIER DIODE, 0.2A, 150V, DO- Fairchild Semiconductor	65,000	RFQ	Datasheet	-	DO-204AH, DO-35, Axial	Bulk	Active	Standard	150 V	200mA	650 mV @ 1 mA	Small Signal =< 200mA (Io), Any Speed	120 ns	100 nA @ 150 V	-	-	-	Through Hole	DO-204AH (DO-35)	175°C (Max)

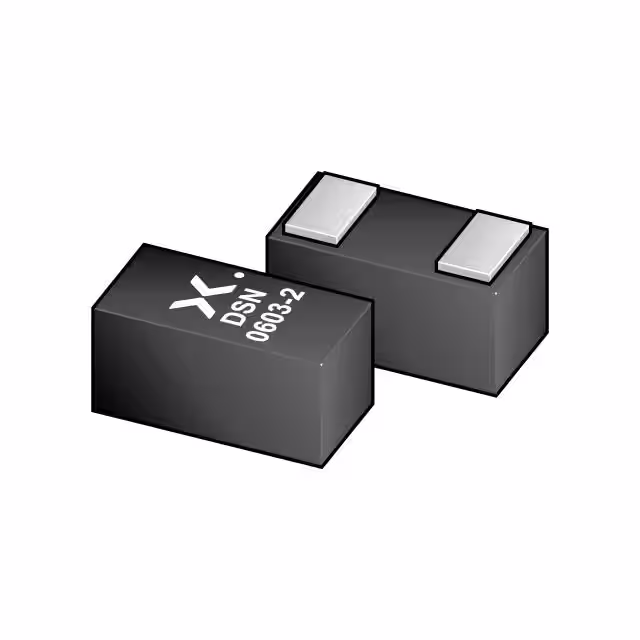

PMEG3005AESFCYL PMEG3005AESF - 30V, 0.5A LOW VF Nexperia USA Inc.	63,000	RFQ	Datasheet	-	0201 (0603 Metric)	Bulk	Active	Schottky	30 V	500mA	630 mV @ 500 mA	Fast Recovery =< 500ns, > 200mA (Io)	1.37 ns	80 µA @ 30 V	22pF @ 1V, 1MHz	-	-	Surface Mount	DSN0603-2	-55°C ~ 150°C

FAQ

Frequently Asked Questions

What are Single Diodes components used for?

Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.

How do I choose the right Single Diodes part?

Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.

Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?

Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.

How can I request pricing and availability?

Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
