Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD0603-B0340RDIODE SCHOTTKY 40V 300MA 0603 |
185,966 |
|
Datasheet | - | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Schottky | 40 V | 300mA | 550 mV @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 10 V | 35pF @ 4V, 1MHz | - | - | Surface Mount | 0603 (1608 Metric) | -40°C ~ 125°C |
|
CD214A-B340RDIODE SCHOTTKY 40V 3A 2SMD |
55,215 |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | Schottky | 40 V | 3A | 500 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | 300pF @ 4V, 1MHz | - | - | Surface Mount | 2-SMD | -55°C ~ 125°C |
|
|
CD0603-B0240RDIODE SCHOTTKY 40V 200MA 0603 |
357,370 |
|
Datasheet | - | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Schottky | 40 V | 200mA | 550 mV @ 200 mA | Small Signal =< 200mA (Io), Any Speed | - | 1 µA @ 10 V | 35pF @ 4V, 1MHz | - | - | Surface Mount | 0603 (1608 Metric) | -40°C ~ 125°C |
|
CD1408-R1200DIODE GEN PURP 200V 1A 1408 |
3,798 |
|
Datasheet | - | Chip, Concave Terminals | Tape & Reel (TR) | Active | Standard | 200 V | 1A | 1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | 3 µs | 1 µA @ 200 V | 12pF @ 4V, 1MHz | - | - | Surface Mount | 1408 | -65°C ~ 175°C |
|
CD123D-B140LRDIODE SCHOTTKY 40V 1A 123D |
4,977 |
|
Datasheet | - | Chip, Concave Terminals | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 380 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 40 V | 115pF @ 4V, 1MHz | - | - | Surface Mount | 123D | -55°C ~ 125°C |
|
|
CD1408-R11000DIODE GEN PURP 1KV 1A 1408 |
16,715 |
|
Datasheet | - | Chip, Concave Terminals | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | 3 µs | 1 µA @ 1000 V | 12pF @ 4V, 1MHz | - | - | Surface Mount | 1408 | -65°C ~ 175°C |
|
|
CD214A-B140LRDIODE SCHOTTKY 40V 1A 2SMD |
4,423 |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 380 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 40 V | 110pF @ 4V, 1MHz | - | - | Surface Mount | 2-SMD | -55°C ~ 125°C |
|
|
CD123D-B140RDIODE SCHOTTKY 40V 1A 123D |
11,855 |
|
Datasheet | - | Chip, Concave Terminals | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 500 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 40 V | 110pF @ 4V, 1MHz | - | - | Surface Mount | 123D | -55°C ~ 125°C |
|
|
CD1408-FU1600DIODE GEN PURP 600V 1A 1408 |
5,967 |
|
Datasheet | - | Chip, Concave Terminals | Tape & Reel (TR) | Active | Standard | 600 V | 1A | 1.25 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 600 V | 10pF @ 4V, 1MHz | - | - | Surface Mount | 1408 | -65°C ~ 175°C |
|

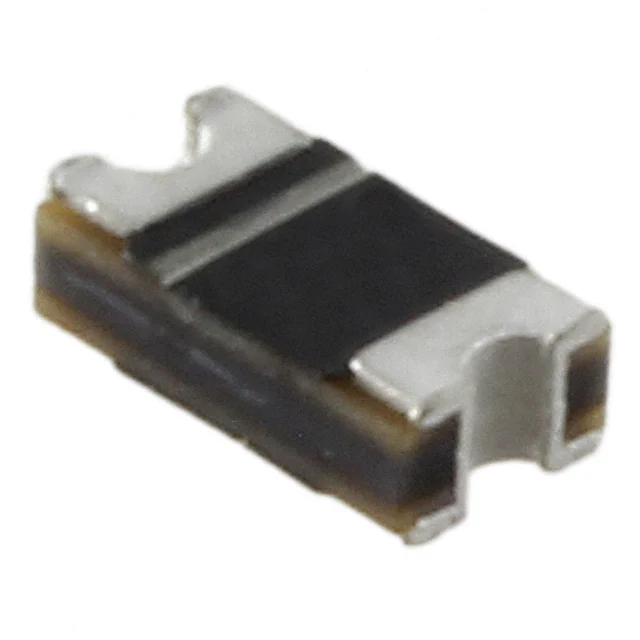

CD1206-B240DIODE SCHOTTKY 40V 2A 1206 |
1,763 |
|
Datasheet | - | Chip, Concave Terminals | Tape & Reel (TR) | Active | Schottky | 40 V | 2A | 500 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | - | - | - | Surface Mount | 1206 | -55°C ~ 125°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
