Single Diodes
Explore Single Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMEG030V050EPDZDIODE SCHOTTKY 30V 5A CFP15 |
3,651 |
|
Datasheet | - | TO-277, 3-PowerDFN | Tape & Reel (TR) | Not For New Designs | Schottky | 30 V | 5A | 550 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 16 ns | 150 µA @ 30 V | 495pF @ 1V, 1MHz | Automotive | AEC-Q101 | Surface Mount | CFP15 | 175°C (Max) |
|
RBR1VWM40ATRDIODE SCHOTTKY 40V 1A PMDE |
2,676 |
|
Datasheet | - | 2-SMD, Flat Leads | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 520 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 40 V | - | Automotive | AEC-Q101 | Surface Mount | PMDE | 150°C |
|
RF302LAM2STFTRDIODE GEN PURP 200V 3A PMDTM |
12,994 |
|
Datasheet | - | SOD-128 | Tape & Reel (TR) | Active | Standard | 200 V | 3A | 920 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 10 µA @ 200 V | - | Automotive | AEC-Q101 | Surface Mount | PMDTM | 150°C (Max) |
|
ES3D-M3/57TDIODE GEN PURP 200V 3A DO214AB |
7,435 |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Standard | 200 V | 3A | 900 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 10 µA @ 200 V | 45pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AB (SMC) | -55°C ~ 150°C |
|
31GF6-E3/54DIODE GEN PURP 600V 3A DO201AD |
7,337 |
|
Datasheet | - | DO-201AD, Axial | Tape & Reel (TR) | Active | Standard | 600 V | 3A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 20 µA @ 600 V | - | - | - | Through Hole | DO-201AD | -40°C ~ 150°C |
|
VS-3EJH02-M3/6ADIODE GEN PURP 200V 3A DO221AC |
3,519 |
|
Datasheet | FRED Pt® | DO-221AC, SMA Flat Leads | Tape & Reel (TR) | Active | Standard | 200 V | 3A | 930 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 18 ns | 2 µA @ 200 V | - | - | - | Surface Mount | DO-221AC (SlimSMA) | -65°C ~ 175°C |
|
RB068L-40DDTE25DIODE SCHOTTKY 40V 2A PMDS |
2,690 |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Schottky | 40 V | 2A | 690 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 µA @ 40 V | - | Automotive | AEC-Q101 | Surface Mount | PMDS | 150°C |
|

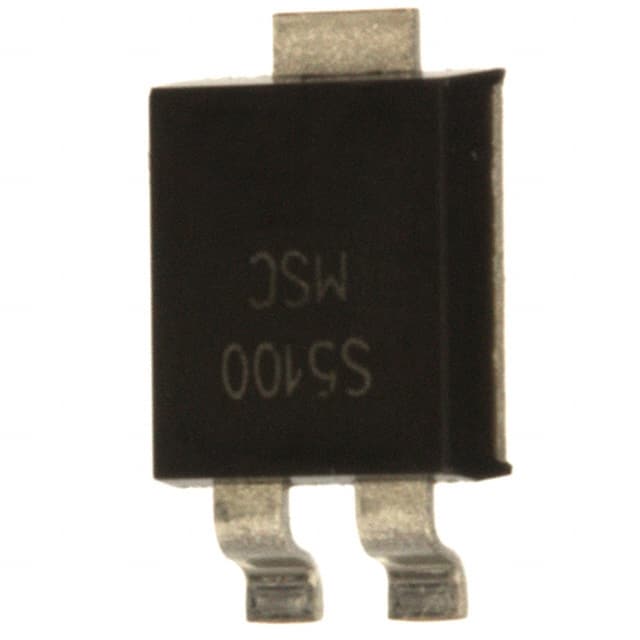

UPS5100E3/TR13DIODE SCHOTTKY 100V 5A POWERMITE |
20,844 |
|
Datasheet | - | Powermite®3 | Tape & Reel (TR) | Active | Schottky | 100 V | 5A | 810 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 100 V | 150pF @ 4V, 1MHz | - | - | Surface Mount | Powermite 3 | -55°C ~ 125°C |
|
RGP10M-E3/73DIODE GEN PURP 1KV 1A DO204AL |
11,354 |
|
Datasheet | SUPERECTIFIER® | DO-204AL, DO-41, Axial | Cut Tape (CT) | Active | Standard | 1000 V | 1A | 1.3 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 5 µA @ 1000 V | 15pF @ 4V, 1MHz | - | - | Through Hole | DO-204AL (DO-41) | -65°C ~ 175°C |
|
MBRAF260T3GDIODE SCHOTTKY 60V 2A SMA-FL |
9,677 |
|
Datasheet | - | DO-221AC, SMA Flat Leads | Tape & Reel (TR) | Active | Schottky | 60 V | 2A | 630 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 60 V | - | - | - | Surface Mount | SMA-FL | -55°C ~ 150°C |
|
GP15D-E3/54DIODE GEN PURP 200V 1.5A DO204AC |
3,446 |
|
Datasheet | SUPERECTIFIER® | DO-204AC, DO-15, Axial | Tape & Reel (TR) | Active | Standard | 200 V | 1.5A | 1.1 V @ 1.5 A | Standard Recovery >500ns, > 200mA (Io) | 3.5 µs | 5 µA @ 200 V | - | - | - | Through Hole | DO-204AC (DO-15) | -65°C ~ 175°C |
|
|
SSC53L-M3/57TDIODE SCHOTTKY 30V 5A DO214AB |
2,673 |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Schottky | 30 V | 5A | 450 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 700 µA @ 30 V | - | - | - | Surface Mount | DO-214AB (SMC) | -65°C ~ 150°C |
|
|
UF5407-E3/54DIODE GEN PURP 800V 3A DO201AD |
1,765 |
|
Datasheet | - | DO-201AD, Axial | Tape & Reel (TR) | Active | Standard | 800 V | 3A | 1.7 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 10 µA @ 800 V | 36pF @ 4V, 1MHz | - | - | Through Hole | DO-201AD | -55°C ~ 150°C |
;;2.jpg "STTH802BY-TR")
|
STTH802BY-TRDIODE GEN PURP 200V 8A DPAK |
1,120 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Standard | 200 V | 8A | 1.05 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 6 µA @ 200 V | - | Automotive | AEC-Q101 | Surface Mount | DPAK | -40°C ~ 175°C |
|
EGF1T-E3/5CADIODE GEN PURP 1.3KV 1A DO214BA |
12,794 |
|
Datasheet | SUPERECTIFIER® | DO-214BA | Tape & Reel (TR) | Active | Standard | 1300 V | 1A | 3 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 5 µA @ 1300 V | - | - | - | Surface Mount | DO-214BA (GF1) | -55°C ~ 150°C |
|
SB3100E-GDIODE SCHOTTKY 100V 3A DO201AD |
12,616 |
|
Datasheet | - | DO-201AD, Axial | Tape & Reel (TR) | Active | Schottky | 100 V | 3A | 850 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 100 V | 250pF @ 4V, 1MHz | - | - | Through Hole | DO-201AD | -65°C ~ 150°C |
|
CMPD2004 TR PBFREEDIODE GEN PURP 240V 200MA SOT23 |
12,152 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Standard | 240 V | 200mA | 1.25 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 50 ns | 100 nA @ 240 V | 5pF @ 0V, 1MHz | - | - | Surface Mount | SOT-23 | -65°C ~ 150°C |
|
|
RGP02-15E-E3/54DIODE GP 1.5KV 500MA DO204AL |
9,820 |
|
Datasheet | SUPERECTIFIER® | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Active | Standard | 1500 V | 500mA | 1.8 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 5 µA @ 1500 V | - | - | - | Through Hole | DO-204AL (DO-41) | -65°C ~ 175°C |
|
PMEG100V100ELPEZDIODE SCHOTTKY 100V 10A CFP15B |
9,765 |
|
Datasheet | - | TO-277, 3-PowerDFN | Tape & Reel (TR) | Active | Schottky | 100 V | 10A | 850 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 11 ns | 800 nA @ 100 V | 276pF @ 1V, 1MHz | - | - | Surface Mount | CFP15B | 175°C |
|
MURS160HE3_A/IDIODE GEN PURP 600V 2A DO214AA |
9,332 |
|
Datasheet | - | DO-214AA, SMB | Tape & Reel (TR) | Active | Standard | 600 V | 2A | 1.25 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 5 µA @ 600 V | - | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) | -65°C ~ 175°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
