Single Diodes

Explore Single Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.

For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.

Mfr. Part #	Availability	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Technology	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Speed	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Grade	Qualification	Mounting Type	Supplier Device Package	Operating Temperature - Junction
RFN1LAM7STFTR DIODE GEN PURP 700V 800MA PMDTM Rohm Semiconductor	17,113	RFQ	Datasheet	-	SOD-128	Tape & Reel (TR)	Active	Standard	700 V	800mA	1.5 V @ 800 mA	Fast Recovery =< 500ns, > 200mA (Io)	80 ns	1 µA @ 700 V	-	Automotive	AEC-Q101	Surface Mount	PMDTM	150°C (Max)
PMEG100T080ELPEZ DIODE SCHOTTKY 100V 8A CFP15B Nexperia USA Inc.	14,892	RFQ	Datasheet	-	TO-277, 3-PowerDFN	Tape & Reel (TR)	Active	Schottky	100 V	8A	810 mV @ 8 A	Fast Recovery =< 500ns, > 200mA (Io)	19 ns	4 µA @ 100 V	680pF @ 1V, 1MHz	-	-	Surface Mount	CFP15B	175°C
CMMR1-10 TR PBFREE DIODE GEN PURP 1KV 1A SOD123F Central Semiconductor Corp	13,578	RFQ	Datasheet	-	SOD-123F	Tape & Reel (TR)	Active	Standard	1000 V	1A	1.1 V @ 1 A	Standard Recovery >500ns, > 200mA (Io)	-	10 µA @ 1000 V	6pF @ 4V, 1MHz	-	-	Surface Mount	SOD-123F	-65°C ~ 150°C
SL23-E3/52T DIODE SCHOTTKY 30V 2A DO214AA Vishay General Semiconductor - Diodes Division	12,008	RFQ	Datasheet	-	DO-214AA, SMB	Tape & Reel (TR)	Active	Schottky	30 V	2A	440 mV @ 2 A	Fast Recovery =< 500ns, > 200mA (Io)	-	400 µA @ 30 V	-	-	-	Surface Mount	DO-214AA (SMB)	-55°C ~ 125°C
ZLLS1000QTA DIODE SCHOTTKY 40V 1.16A SOT23-3 Diodes Incorporated	9,506	RFQ	Datasheet	-	TO-236-3, SC-59, SOT-23-3	Tape & Reel (TR)	Active	Schottky	40 V	1.16A	560 mV @ 1 A	Fast Recovery =< 500ns, > 200mA (Io)	5 ns	20 µA @ 30 V	28pF @ 30V, 1MHz	Automotive	AEC-Q101	Surface Mount	SOT-23-3	150°C (Max)
STTH3R06UFY DIODE GEN PURP 600V 3A SMBFLAT STMicroelectronics	9,140	RFQ	Datasheet	ECOPACK®2	DO-221AA, SMB Flat Leads	Tape & Reel (TR)	Active	Standard	600 V	3A	1.9 V @ 3 A	Fast Recovery =< 500ns, > 200mA (Io)	50 ns	3 µA @ 600 V	-	Automotive	AEC-Q101	Surface Mount	SMBflat	-40°C ~ 175°C
CRS05(TE85L,Q,M) DIODE SCHOTTKY 30V 1A S-FLAT Toshiba Semiconductor and Storage	8,990	RFQ	Datasheet	-	SOD-123F	Tape & Reel (TR)	Active	Schottky	30 V	1A	450 mV @ 1 A	Fast Recovery =< 500ns, > 200mA (Io)	-	200 µA @ 30 V	-	-	-	Surface Mount	S-FLAT (1.6x3.5)	-40°C ~ 150°C
1N4003GP-E3/73 DIODE GEN PURP 200V 1A DO204AL Vishay General Semiconductor - Diodes Division	8,904	RFQ	Datasheet	SUPERECTIFIER®	DO-204AL, DO-41, Axial	Cut Tape (CT)	Active	Standard	200 V	1A	1.1 V @ 1 A	Standard Recovery >500ns, > 200mA (Io)	2 µs	5 µA @ 200 V	8pF @ 4V, 1MHz	-	-	Through Hole	DO-204AL (DO-41)	-65°C ~ 175°C
EGF1D-E3/67A DIODE GEN PURP 200V 1A DO214BA Vishay General Semiconductor - Diodes Division	8,115	RFQ	Datasheet	SUPERECTIFIER®	DO-214BA	Tape & Reel (TR)	Active	Standard	200 V	1A	1 V @ 1 A	Fast Recovery =< 500ns, > 200mA (Io)	50 ns	5 µA @ 200 V	15pF @ 4V, 1MHz	-	-	Surface Mount	DO-214BA (GF1)	-65°C ~ 175°C
PD3S130LQ-7 DIODE SCHOTTKY 30V 1A PWRDI323 Diodes Incorporated	7,979	RFQ	Datasheet	-	PowerDI™ 323	Tape & Reel (TR)	Active	Schottky	30 V	1A	420 mV @ 1 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1.5 mA @ 30 V	40pF @ 10V, 1MHz	Automotive	AEC-Q101	Surface Mount	PowerDI™ 323	-65°C ~ 150°C
CMR3-10 TR13 PBFREE DIODE GEN PURP 1KV 3A SMC Central Semiconductor Corp	4,872	RFQ	Datasheet	-	DO-214AB, SMC	Tape & Reel (TR)	Active	Standard	1000 V	3A	1.2 V @ 3 A	Standard Recovery >500ns, > 200mA (Io)	-	5 µA @ 1000 V	-	-	-	Surface Mount	SMC	-65°C ~ 175°C
AS3PG-M3/86A DIODE AVALANCHE 400V 2.1A TO277A Vishay General Semiconductor - Diodes Division	3,492	RFQ	Datasheet	eSMP®	TO-277, 3-PowerDFN	Tape & Reel (TR)	Active	Avalanche	400 V	2.1A	920 mV @ 1.5 A	Standard Recovery >500ns, > 200mA (Io)	1.2 µs	10 µA @ 400 V	37pF @ 4V, 1MHz	-	-	Surface Mount	TO-277A (SMPC)	-55°C ~ 175°C
RB162LAM-60TFTR DIODE SCHOTTKY 60V 1A PMDTM Rohm Semiconductor	3,002	RFQ	Datasheet	-	SOD-128	Tape & Reel (TR)	Active	Schottky	60 V	1A	-	Fast Recovery =< 500ns, > 200mA (Io)	-	100 µA @ 60 V	-	Automotive	AEC-Q101	Surface Mount	PMDTM	150°C (Max)
S3D DIODE GEN PURP 200V 3A SMC SMC Diode Solutions	2,848	RFQ	Datasheet	-	DO-214AB, SMC	Tape & Reel (TR)	Active	Standard	200 V	3A	1.1 V @ 3 A	Standard Recovery >500ns, > 200mA (Io)	2.5 µs	5 µA @ 200 V	60pF @ 4V, 1MHz	-	-	Surface Mount	DO-214AB (SMC)	-65°C ~ 175°C
VS-3EYH02HM3/H DIODE GEN PURP 200V 3A SLIMSMAW Vishay General Semiconductor - Diodes Division	2,328	RFQ	Datasheet	eSMP®	DO-221AC, SMA Flat Leads	Tape & Reel (TR)	Active	Standard	200 V	3A	950 mV @ 3 A	Fast Recovery =< 500ns, > 200mA (Io)	30 ns	2 µA @ 200 V	16pF @ 200V	Automotive	AEC-Q101	Surface Mount	SlimSMAW (DO-221AD)	-55°C ~ 175°C
PMEG045V050EPE-QZ DIODE SCHOTTKY 45V 5A CFP15B Nexperia USA Inc.	2,043	RFQ	Datasheet	-	TO-277, 3-PowerDFN	Tape & Reel (TR)	Active	Schottky	45 V	5A	490 mV @ 5 A	Fast Recovery =< 500ns, > 200mA (Io)	18 ns	300 µA @ 45 V	540pF @ 1V, 1MHz	Automotive	AEC-Q101	Surface Mount	CFP15B	175°C
PMEG060V050EPE-QZ DIODE SCHOTTKY 60V 5A CFP15B Nexperia USA Inc.	1,933	RFQ	Datasheet	-	TO-277, 3-PowerDFN	Tape & Reel (TR)	Active	Schottky	60 V	5A	560 mV @ 5 A	Fast Recovery =< 500ns, > 200mA (Io)	14 ns	400 µA @ 60 V	429pF @ 1V, 1MHz	Automotive	AEC-Q101	Surface Mount	CFP15B	175°C
MBR8H100MFST1G DIODE SCHOTTKY 100V 8A 5DFN onsemi	1,765	RFQ	Datasheet	-	8-PowerTDFN, 5 Leads	Tape & Reel (TR)	Active	Schottky	100 V	8A	900 mV @ 8 A	Fast Recovery =< 500ns, > 200mA (Io)	-	2 µA @ 100 V	-	-	-	Surface Mount	5-DFN (5x6) (8-SOFL)	-55°C ~ 175°C

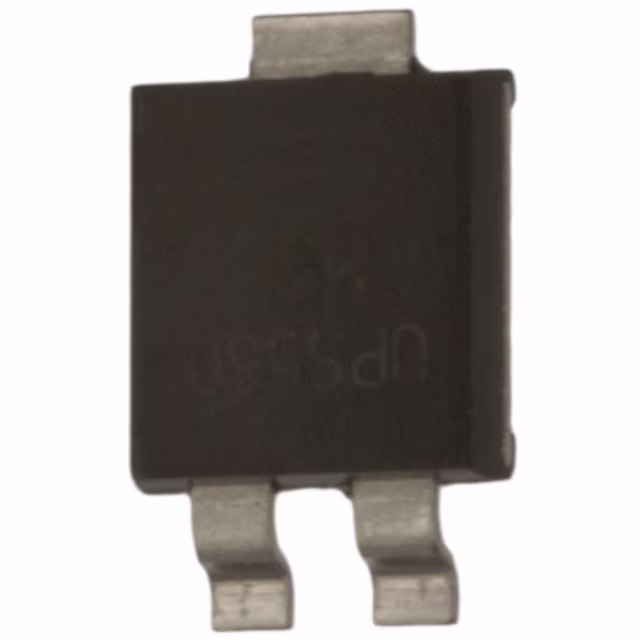

UPS560E3/TR13 DIODE SCHOTTKY 60V 5A POWERMITE3 Microchip Technology	57,846	RFQ	Datasheet	-	Powermite®3	Tape & Reel (TR)	Active	Schottky	60 V	5A	690 mV @ 5 A	Fast Recovery =< 500ns, > 200mA (Io)	-	200 µA @ 60 V	150pF @ 4V, 1MHz	-	-	Surface Mount	Powermite 3	-55°C ~ 125°C
V3PAN50-M3/I DIODE SCHOTTKY 50V 3A DO221BC Vishay General Semiconductor - Diodes Division	50,140	RFQ	Datasheet	TMBS®	DO-221BC, SMA Flat Leads Exposed Pad	Tape & Reel (TR)	Active	Schottky	50 V	3A	540 mV @ 3 A	Fast Recovery =< 500ns, > 200mA (Io)	-	600 µA @ 50 V	480pF @ 4V, 1MHz	-	-	Surface Mount	DO-221BC (SMPA)	-40°C ~ 150°C

FAQ

Frequently Asked Questions

What are Single Diodes components used for?

Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.

How do I choose the right Single Diodes part?

Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.

Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?

Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.

How can I request pricing and availability?

Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
