Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSAI75-12BDIODE AVAL 1.2KV 110A DO203AB |
7,320 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Box | Obsolete | Avalanche | 1200 V | 110A | 1.17 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 6 mA @ 1200 V | - | - | - | Chassis, Stud Mount | DO-203AB | -40°C ~ 180°C |
|
DSA300I200NADIODE SCHOTTKY 200V 300A SOT227B |
2,194 |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Obsolete | Schottky | 200 V | 300A | 1.03 V @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 200 V | 2220pF @ 24V, 1MHz | - | - | Chassis Mount | SOT-227B | - |
|
DSA75-16BDIODE AVAL 1.6KV 110A DO203AB |
8,357 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Obsolete | Avalanche | 1600 V | 110A | 1.17 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 6 mA @ 1600 V | - | - | - | Chassis, Stud Mount | DO-203AB | -40°C ~ 180°C |
|

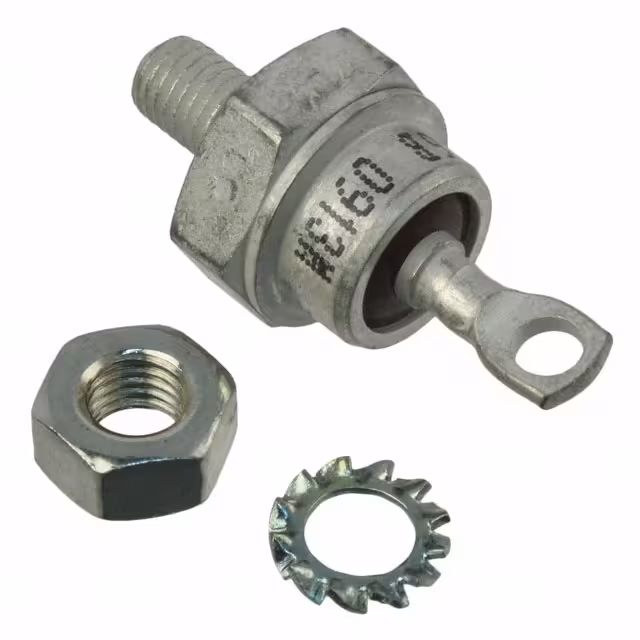

DSAI75-16BDIODE AVAL 1.6KV 110A DO203AB |
6,750 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Obsolete | Avalanche | 1600 V | 110A | 1.17 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 6 mA @ 1600 V | - | - | - | Chassis, Stud Mount | DO-203AB | -40°C ~ 180°C |
|
DSA75-18BDIODE AVAL 1.8KV 110A DO203AB |
9,288 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Box | Obsolete | Avalanche | 1800 V | 110A | 1.17 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 6 mA @ 1800 V | - | - | - | Chassis, Stud Mount | DO-203AB | -40°C ~ 180°C |
|
|
DSAI75-18BDIODE AVAL 1.8KV 110A DO203AB |
4,857 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Box | Obsolete | Avalanche | 1800 V | 110A | 1.17 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 6 mA @ 1800 V | - | - | - | Chassis, Stud Mount | DO-203AB | -40°C ~ 180°C |
|
|
DHG55I3300FEDIODE GP 3.3KV 50A ISOPLUS I4PAC |
6,335 |
|
Datasheet | - | i4-Pac™-5 (2 Leads) | Tube | Active | Standard | 3300 V | 50A | 3.4 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | 1.65 µs | 100 µA @ 3300 V | 16pF @ 1.8kV, 1MHz | - | - | Through Hole | ISOPLUS i4-PAC™ | -40°C ~ 150°C |
|
|
W0642WC160DIODE GEN PURP 1.6KV 642A W1 |
3,185 |
|
Datasheet | - | DO-200AB, A-PUK | Box | Active | Standard | 1600 V | 642A | 2.37 V @ 1900 A | Standard Recovery >500ns, > 200mA (Io) | 15 µs | 15 mA @ 1600 V | - | - | - | Clamp On | W1 | -40°C ~ 180°C |
|
|
W0642WC200DIODE GEN PURP 2KV 642A W1 |
4,607 |
|
Datasheet | - | DO-200AB, A-PUK | Box | Active | Standard | 2000 V | 642A | 2.37 V @ 1900 A | Standard Recovery >500ns, > 200mA (Io) | 15 µs | 15 mA @ 2000 V | - | - | - | Clamp On | W1 | -40°C ~ 180°C |
|
|
DHG40I4500KODIODE GP 4.5KV 43A ISOPLUS264 |
5,071 |
|
Datasheet | - | ISOPLUS264™ | Tube | Active | Standard | 4500 V | 43A | 3 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | 1.45 µs | 100 µA @ 4500 V | 13pF @ 1.8kV, 1MHz | - | - | Through Hole | ISOPLUS264™ | -40°C ~ 150°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
