Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-8TQ100SPBFDIODE SCHOTTKY 100V 8A TO263AB |
9,047 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | Schottky | 100 V | 8A | 720 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 550 µA @ 100 V | 500pF @ 5V, 1MHz | - | - | Surface Mount | TO-263AB (D2PAK) | -55°C ~ 175°C |
|
|
VS-8TQ080SPBFDIODE SCHOTTKY 80V 8A TO263AB |
7,722 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | Schottky | 80 V | 8A | 720 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 550 µA @ 80 V | 500pF @ 5V, 1MHz | - | - | Surface Mount | TO-263AB (D2PAK) | -55°C ~ 175°C |
|
|
VS-19TQ015SPBFDIODE SCHOTTKY 15V 19A TO263AB |
9,470 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | Schottky | 15 V | 19A | 360 mV @ 19 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 15 V | - | - | - | Surface Mount | TO-263AB (D2PAK) | -55°C ~ 125°C |
|
VS-HFA25TB60PBFDIODE GEN PURP 600V 25A TO220AC |
6,185 |
|
Datasheet | HEXFRED® | TO-220-2 | Tube | Discontinued at Digi-Key | Standard | 600 V | 25A | 1.7 V @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 20 µA @ 600 V | - | - | - | Through Hole | TO-220AC | -55°C ~ 150°C |
|

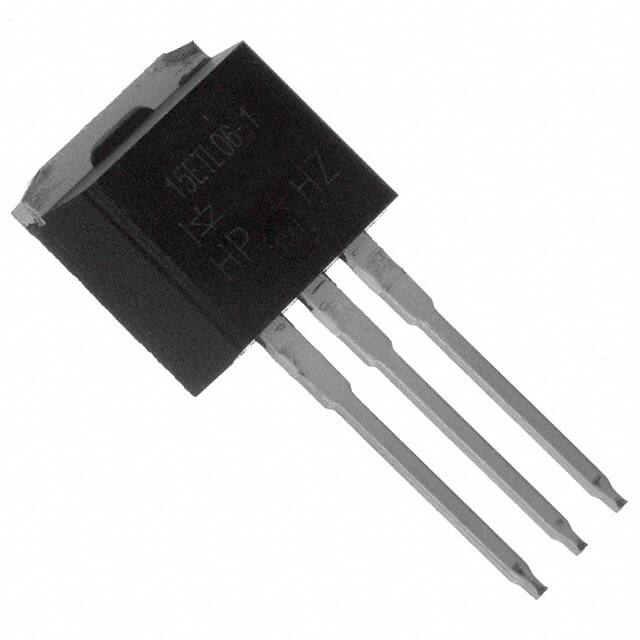

VS-15ETL06-1PBFDIODE GEN PURP 600V 15A TO262-3 |
8,515 |
|
Datasheet | FRED Pt® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Discontinued at Digi-Key | Standard | 600 V | 15A | 1.05 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 270 ns | 10 µA @ 600 V | - | - | - | Through Hole | TO-262-3 | - |
|
|
VS-HFA04TB60PBFDIODE GEN PURP 600V 4A TO220AC |
6,019 |
|
Datasheet | HEXFRED® | TO-220-2 | Tube | Discontinued at Digi-Key | Standard | 600 V | 4A | 1.8 V @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 42 ns | 3 µA @ 600 V | - | - | - | Through Hole | TO-220AC | -55°C ~ 150°C |
|
|
VS-HFA08TB120PBFDIODE GEN PURP 1.2KV 8A TO220AC |
2,552 |
|
Datasheet | HEXFRED® | TO-220-2 | Tube | Discontinued at Digi-Key | Standard | 1200 V | 8A | 3.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 95 ns | 10 µA @ 1200 V | - | - | - | Through Hole | TO-220AC | -55°C ~ 150°C |
|
|
VS-HFA16TB120PBFDIODE GEN PURP 1.2KV 16A TO220AC |
8,703 |
|
Datasheet | HEXFRED® | TO-220-2 | Tube | Discontinued at Digi-Key | Standard | 1200 V | 16A | 3 V @ 16 A | Fast Recovery =< 500ns, > 200mA (Io) | 135 ns | 20 µA @ 1200 V | - | - | - | Through Hole | TO-220AC | -55°C ~ 150°C |
|
VS-10BQ015PBFDIODE SCHOTTKY 15V 1A DO214AA |
9,659 |
|
Datasheet | - | DO-214AA, SMB | Bulk | Obsolete | Schottky | 15 V | 1A | 350 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 15 V | - | - | - | Surface Mount | DO-214AA (SMB) | -55°C ~ 125°C |
|
|
VS-10BQ030PBFDIODE SCHOTTKY 30V 1A DO214AA |
7,898 |
|
Datasheet | - | DO-214AA, SMB | Bulk | Obsolete | Schottky | 30 V | 1A | 420 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 30 V | - | - | - | Surface Mount | DO-214AA (SMB) | -55°C ~ 150°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
