Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-71HFLR100S05DIODE GP REV 1KV 70A DO203AB |
5,935 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 1000 V | 70A | 1.35 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 180°C |
|

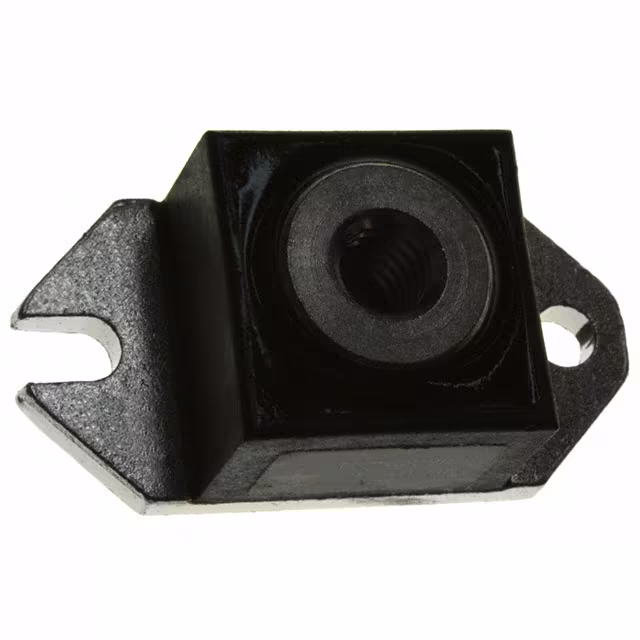

123NQ080DIODE SCHOTTKY 80V 120A D-67 |
9,838 |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 80 V | 120A | 910 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 80 V | 2650pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
VS-86HF160DIODE GEN PURP 1.6KV 85A DO203AB |
8,026 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 1600 V | 85A | 1.4 V @ 267 A | Standard Recovery >500ns, > 200mA (Io) | - | 4.5 mA @ 1600 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 150°C |
|
|
VS-70HF140MDIODE GEN PURP 1.4KV 70A DO203AB |
4,991 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 1400 V | 70A | 1.46 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 150°C |
|
|
VS-70HFR140MDIODE GP REV 1.4KV 70A DO203AB |
6,880 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 1400 V | 70A | 1.46 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 150°C |
|
|
VS-70HFR160MDIODE GP REV 1.6KV 70A DO203AB |
9,426 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 1600 V | 70A | 1.46 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 150°C |
|
|
1N3292DIODE GEN PURP 500V 100A DO205AA |
8,489 |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Obsolete | Standard | 500 V | 100A | 1.5 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 21 mA @ 500 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 200°C |
|
|
249NQ135DIODE SCHOTTKY 135V 240A D-67 |
7,707 |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 135 V | 240A | 1.07 V @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 135 V | 6000pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
|
1N3293DIODE GEN PURP 600V 100A DO205AA |
4,189 |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Obsolete | Standard | 600 V | 100A | 1.5 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 17 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 200°C |
|
|
1N3293RDIODE GEN PURP 600V 100A DO205AA |
4,747 |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Obsolete | Standard | 600 V | 100A | 1.5 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 17 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 200°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
