Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-20ETF06S-M3DIODE GEN PURP 600V 20A TO263AB |
6,809 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | Standard | 600 V | 20A | 1.3 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 160 ns | 100 µA @ 600 V | - | - | - | Surface Mount | TO-263AB (D2PAK) | -40°C ~ 150°C |
|
|
VBT2080S-E3/8WDIODE SCHOTTKY 80V 20A TO263AB |
7,208 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Schottky | 80 V | 20A | 920 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 700 µA @ 80 V | - | - | - | Surface Mount | TO-263AB (D2PAK) | -55°C ~ 150°C |
|
V40DL45HM3_A/IDIODE SCHOTTKY 45V 40A TO263AC |
5,613 |
|
Datasheet | eSMP®, TMBS® | TO-263-3, D2PAK (2 Leads + Tab), Variant | Tape & Reel (TR) | Active | Schottky | 45 V | 40A | 660 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 45 V | - | Automotive | AEC-Q101 | Surface Mount | TO-263AC (SMPD) | -40°C ~ 150°C |
|
|
V30KM100-M3/HDIODE SCHOTTKY 100V 4.4A FLATPAK |
3,366 |
|
Datasheet | - | 8-PowerTDFN | Tape & Reel (TR) | Active | Schottky | 100 V | 4.4A | 810 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 300 µA @ 100 V | 2450pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | FlatPAK (5x6) | -40°C ~ 165°C |
|
VS-60APU04LHN3DIODE GEN PURP 400V 60A TO247AD |
4,331 |
|
Datasheet | FRED Pt® | TO-247-3 | Tube | Active | Standard | 400 V | 60A | 1.25 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 85 ns | 50 µA @ 400 V | - | - | - | Through Hole | TO-247AD | -55°C ~ 175°C |
|
|
VS-82PF120DIODE GEN PURP 120V 80A DO203AB |
2,448 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 120 V | 80A | 1.4 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -55°C ~ 180°C |
|

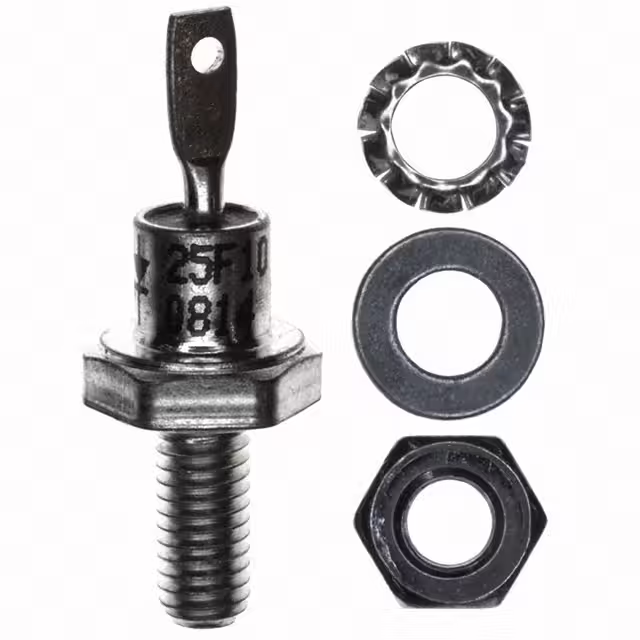

VS-25F10DIODE GEN PURP 100V 25A DO203AA |
7,190 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 100 V | 25A | 1.3 V @ 78 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 100 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
VS-1N1190DIODE GEN PURP 600V 35A DO203AB |
24 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 600 V | 35A | 1.7 V @ 110 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
|
VS-1N1199ADIODE GEN PURP 50V 12A DO203AA |
2,550 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 50 V | 12A | 1.35 V @ 12 A | Standard Recovery >500ns, > 200mA (Io) | - | 3 mA @ 50 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 200°C |
|
1N4948GP-E3/73DIODE GEN PURP 1KV 1A DO204AL |
3,961 |
|
Datasheet | SUPERECTIFIER® | DO-204AL, DO-41, Axial | Cut Tape (CT) | Active | Standard | 1000 V | 1A | 1.3 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 1 µA @ 1000 V | 15pF @ 4V, 1MHz | - | - | Through Hole | DO-204AL (DO-41) | -65°C ~ 175°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
