Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD103A-TRDIODE SCHOTTKY 40V DO35 |
52,764 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Schottky | 40 V | - | 600 mV @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 10 ns | 5 µA @ 30 V | 50pF @ 0V, 1MHz | - | - | Through Hole | DO-204AH (DO-35) | 125°C (Max) |
|
SD103AW-E3-18DIODE SCHOTTKY 40V SOD123 |
46,216 |
|
Datasheet | - | SOD-123 | Tape & Reel (TR) | Active | Schottky | 40 V | - | 600 mV @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 10 ns | 5 µA @ 30 V | 50pF @ 0V, 1MHz | - | - | Surface Mount | SOD-123 | 125°C (Max) |
|
BA159-E3/54DIODE GEN PURP 1KV 1A DO204AL |
44,828 |
|
Datasheet | - | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.3 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 5 µA @ 1000 V | 12pF @ 4V, 1MHz | - | - | Through Hole | DO-204AL (DO-41) | -65°C ~ 125°C |
|
|
SD103AW-E3-08DIODE SCHOTTKY 40V SOD123 |
33,852 |
|
Datasheet | - | SOD-123 | Tape & Reel (TR) | Active | Schottky | 40 V | - | 600 mV @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 10 ns | 5 µA @ 30 V | 50pF @ 0V, 1MHz | - | - | Surface Mount | SOD-123 | 125°C (Max) |
|
V2P6-M3/HDIODE SCHOTTKY 60V 2A MICROSMP |
30,640 |
|
Datasheet | eSMP® | DO-219AD | Tape & Reel (TR) | Active | Schottky | 60 V | 2A | 630 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 60 V | 195pF @ 4V, 1MHz | - | - | Surface Mount | DO-219AD (MicroSMP) | -40°C ~ 150°C |
|

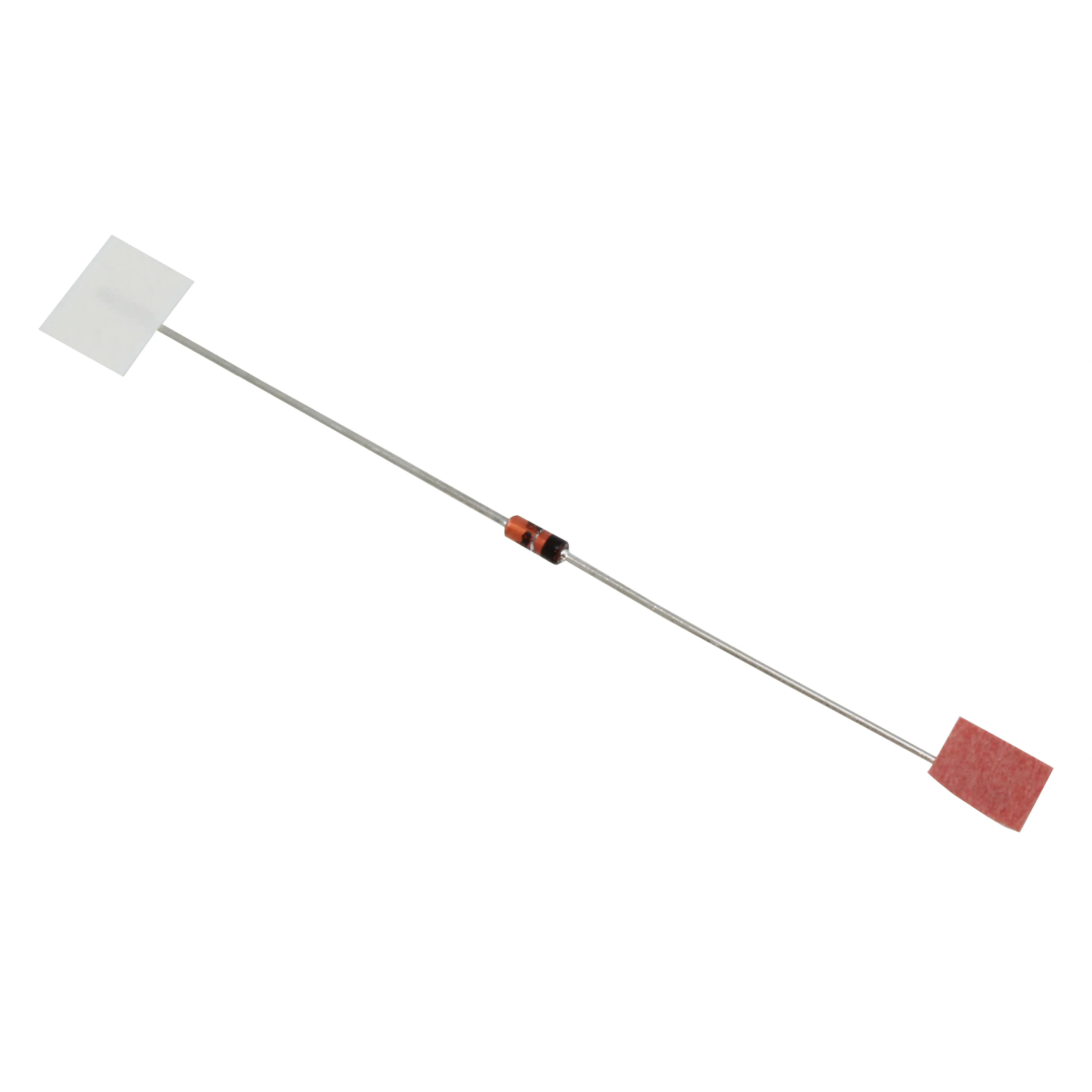

SD103B-TRDIODE SCHOTTKY 30V DO35 |
29,870 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Schottky | 30 V | - | 600 mV @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 10 ns | 5 µA @ 20 V | 50pF @ 0V, 1MHz | - | - | Through Hole | DO-204AH (DO-35) | 125°C (Max) |
|
B140-E3/5ATDIODE SCHOTTKY 40V 1A DO214AC |
28,491 |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 520 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 40 V | - | - | - | Surface Mount | DO-214AC (SMA) | -65°C ~ 125°C |
|
SS1F4HM3/HDIODE SCHOTTKY 40V 1A DO219AB |
12,637 |
|
Datasheet | - | DO-219AB | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 520 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 40 V | 85pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-219AB (SMF) | 175°C (Max) |
|
|
SD101AW-E3-08DIODE SCHOTTKY 60V 30MA SOD123 |
11,269 |
|
Datasheet | - | SOD-123 | Tape & Reel (TR) | Active | Schottky | 60 V | 30mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | 1 ns | 200 nA @ 50 V | 2pF @ 0V, 1MHz | - | - | Surface Mount | SOD-123 | -55°C ~ 125°C |
|
BAS40-00-E3-08DIODE SCHOTTKY 40V 200MA SOT23-3 |
10,635 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Schottky | 40 V | 200mA | 1 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 30 V | 5pF @ 0V, 1MHz | - | - | Surface Mount | SOT-23-3 | 125°C (Max) |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
