Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-30EPF06-M3DIODE GP 600V 30A TO247AC |
500 |
|
Datasheet | - | TO-247-2 | Tube | Active | Standard | 600 V | 30A | 1.41 V @ 30 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 µA @ 600 V | - | - | - | Through Hole | TO-247AC Modified | -40°C ~ 150°C |
|
|
VS-HFA25PB60-N3DIODE GP 600V 25A TO247AC |
385 |
|
Datasheet | HEXFRED® | TO-247-2 | Tube | Active | Standard | 600 V | 25A | 1.7 V @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 20 µA @ 600 V | - | - | - | Through Hole | TO-247AC Modified | -55°C ~ 150°C |
|
|
VS-40EPF12-M3DIODE GP 1.2KV 40A TO247AC |
231 |
|
Datasheet | - | TO-247-2 | Tube | Active | Standard | 1200 V | 40A | 1.4 V @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | 450 ns | 100 µA @ 1200 V | - | - | - | Through Hole | TO-247AC Modified | -40°C ~ 150°C |
|
|
VS-HFA08PB120-N3DIODE GP 1.2KV 8A TO247AC |
500 |
|
Datasheet | HEXFRED® | TO-247-2 | Tube | Active | Standard | 1200 V | 8A | 3.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 95 ns | 10 µA @ 1200 V | - | - | - | Through Hole | TO-247AC Modified | -55°C ~ 150°C |
|

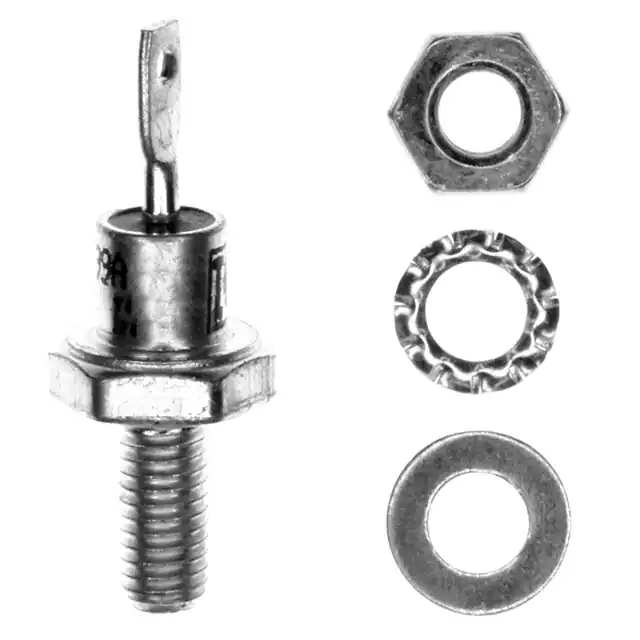

VS-25FR40DIODE GEN PURP 400V 25A DO203AA |
101 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 400 V | 25A | 1.3 V @ 78 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 400 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
VS-60APU02-N3DIODE GEN PURP 200V 60A TO247AC |
438 |
|
Datasheet | FRED Pt® | TO-247-3 | Tube | Active | Standard | 200 V | 60A | 1.08 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 28 ns | 50 µA @ 200 V | - | - | - | Through Hole | TO-247AC | -55°C ~ 175°C |
|
VS-65EPF12LHM3DIODE GEN PURP 1.2KV 65A TO247AD |
140 |
|
Datasheet | - | TO-247-2 | Tube | Active | Standard | 1200 V | 65A | 1.42 V @ 65 A | Fast Recovery =< 500ns, > 200mA (Io) | 480 ns | 100 µA @ 1200 V | - | Automotive | AEC-Q101 | Through Hole | TO-247AD | -40°C ~ 150°C |
|
VS-40HF10DIODE GEN PURP 100V 40A DO203AB |
102 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 100 V | 40A | 1.3 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 100 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
|
|
VS-1N3890RDIODE GEN PURP 100V 12A DO203AA |
181 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 100 V | 12A | 1.4 V @ 12 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 150°C |
|
VS-3C20ET07T-M3650 V POWER SIC GEN 3 MERGED PIN |
788 |
|
Datasheet | - | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 650 V | 20A | 1.5 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 650 V | 845pF @ 1V, 1MHz | - | - | Through Hole | TO-220AC | -55°C ~ 175°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
