Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-6EWH06FNTR-M3DIODE GEN PURP 600V 6A DPAK |
2,676 |
|
Datasheet | FRED Pt® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Standard | 600 V | 6A | 2.1 V @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | 27 ns | 50 µA @ 600 V | - | - | - | Surface Mount | TO-252AA (DPAK) | -65°C ~ 175°C |
|
MBR760-E3/45DIODE SCHOTTKY 60V 7.5A TO220AC |
371 |
|
Datasheet | - | TO-220-2 | Tube | Active | Schottky | 60 V | 7.5A | 750 mV @ 7.5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 60 V | - | - | - | Through Hole | TO-220AC | -65°C ~ 175°C |
|
VS-HFA08TB120S-M3DIODE GEN PURP 1.2KV 8A TO263AB |
4,881 |
|
Datasheet | HEXFRED® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | Standard | 1200 V | 8A | 4.3 V @ 16 A | Fast Recovery =< 500ns, > 200mA (Io) | 95 ns | 10 µA @ 1200 V | - | - | - | Surface Mount | TO-263AB (D2PAK) | -55°C ~ 150°C |
|
SS15P3S-M3/87ADIODE SCHOTTKY 30V 15A TO277A |
6,594 |
|
Datasheet | eSMP® | TO-277, 3-PowerDFN | Tape & Reel (TR) | Active | Schottky | 30 V | 15A | 570 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 30 V | - | - | - | Surface Mount | TO-277A (SMPC) | 200°C (Max) |
|

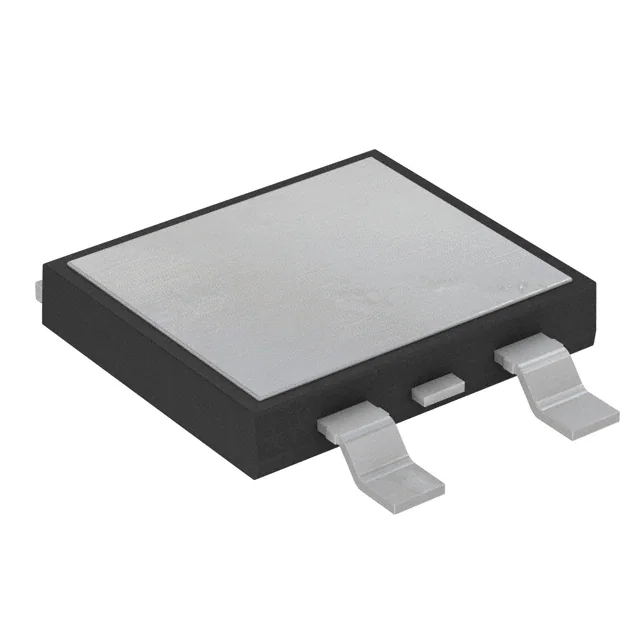

V30DL45BP-M3/IDIODE SCHOTTKY 45V 30A SMPD |
6,314 |
|
Datasheet | eSMP®, TMBS® | TO-263-3, D2PAK (2 Leads + Tab), Variant | Tape & Reel (TR) | Active | Schottky | 45 V | 30A | 650 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 45 V | - | - | - | Surface Mount | SMPD | -40°C ~ 150°C |
|
|
VS-8EWX06FN-M3DIODE GEN PURP 600V 8A TO252 |
3,507 |
|
Datasheet | FRED Pt® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | Standard | 600 V | 8A | 3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 17 ns | 50 µA @ 600 V | - | - | - | Surface Mount | TO-252AA (DPAK) | -65°C ~ 175°C |
|
|
VS-8EWH06FN-M3DIODE GEN PURP 600V 8A DPAK |
3,000 |
|
Datasheet | FRED Pt® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | Standard | 600 V | 8A | 2.4 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 50 µA @ 600 V | - | - | - | Surface Mount | TO-252AA (DPAK) | -65°C ~ 175°C |
|
|
VS-15EWL06FN-M3DIODE GEN PURP 600V 15A DPAK |
2,725 |
|
Datasheet | FRED Pt® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | Standard | 600 V | 15A | 1.05 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 220 ns | 10 µA @ 600 V | - | - | - | Surface Mount | TO-252AA (DPAK) | -65°C ~ 175°C |
|
|
SS15P3S-M3/86ADIODE SCHOTTKY 30V 15A TO277A |
725 |
|
Datasheet | eSMP® | TO-277, 3-PowerDFN | Tape & Reel (TR) | Active | Schottky | 30 V | 15A | 570 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 30 V | - | - | - | Surface Mount | TO-277A (SMPC) | 200°C (Max) |
|
|
V15P45-M3/86ADIODE SCHOTTKY 45V 4.8A TO277A |
9,677 |
|
Datasheet | eSMP®, TMBS® | TO-277, 3-PowerDFN | Tape & Reel (TR) | Active | Schottky | 45 V | 4.8A | 580 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 45 V | - | - | - | Surface Mount | TO-277A (SMPC) | -40°C ~ 150°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
