Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1BLDIODE GEN PURP 100V 1A SUB SMA |
27,723 |
|
Datasheet | - | DO-219AB | Tape & Reel (TR) | Not For New Designs | Standard | 100 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | 1.8 µs | 5 µA @ 100 V | 9pF @ 4V, 1MHz | - | - | Surface Mount | Sub SMA | -55°C ~ 175°C |
.jpg "TSS42U RGG")
|
TSS42U RGGDIODE SCHOTTKY 30V 200MA 0603 |
24,852 |
|
Datasheet | - | 0201 (0603 Metric) | Tape & Reel (TR) | Not For New Designs | Schottky | 30 V | 200mA | 1 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | - | 500 nA @ 25 V | 10pF @ 1V, 1MHz | - | - | Surface Mount | 0603 | -55°C ~ 125°C |
|
|
SS310LWDIODE SCHOTTKY 100V 3A SOD123W |
19,175 |
|
Datasheet | - | SOD-123W | Tape & Reel (TR) | Active | Schottky | 100 V | 3A | 850 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 µA @ 100 V | - | - | - | Surface Mount | SOD-123W | -55°C ~ 150°C |
|

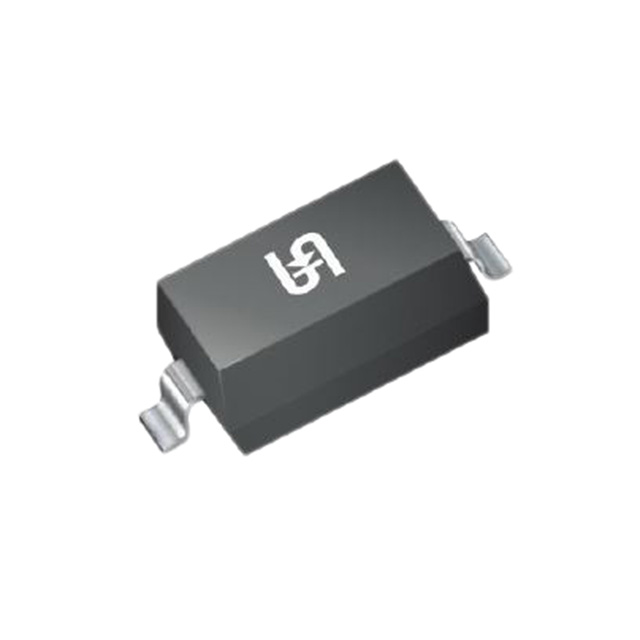

S1AL1A, 50V, STANDARD RECOVERY RECTI |
15,000 |
|
Datasheet | - | SOD-123 | Tape & Reel (TR) | Not For New Designs | Standard | 50 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | 1.8 µs | 5 µA @ 50 V | 9pF @ 4V, 1MHz | - | - | Surface Mount | Sub SMA | -55°C ~ 175°C |
|
|
S1MLWDIODE GEN PURP 1KV 1A SOD123W |
32,300 |
|
Datasheet | - | SOD-123W | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 1 µA @ 1000 V | - | - | - | Surface Mount | SOD-123W | -55°C ~ 175°C |
|
|
RSFMLDIODE GEN PURP 1KV 500MA SUB SMA |
26,903 |
|
Datasheet | - | DO-219AB | Tape & Reel (TR) | Not For New Designs | Standard | 1000 V | 500mA | 1.3 V @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 5 µA @ 1000 V | 4pF @ 4V, 1MHz | - | - | Surface Mount | Sub SMA | -55°C ~ 150°C |
|
|
PU2DLWHDIODE GEN PURP 200V 2A SOD123W |
15,876 |
|
Datasheet | - | SOD-123W | Tape & Reel (TR) | Active | Standard | 200 V | 2A | 930 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 2 µA @ 200 V | 33pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SOD-123W | -55°C ~ 175°C |
|
|
BYG23MDIODE GEN PURP 1.5A DO214AC |
9,589 |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Standard | 1000 V | 1.5A | 1.7 V @ 1.5 A | Fast Recovery =< 500ns, > 200mA (Io) | 65 ns | 1 µA @ 1000 V | 15pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AC (SMA) | -55°C ~ 150°C |
|
|
SS110DIODE SCHOTTKY 100V 1A DO214AC |
5,589 |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Schottky | 100 V | 1A | 800 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | - | - | - | Surface Mount | DO-214AC (SMA) | -55°C ~ 125°C |
|
HER108G A0GDIODE GEN PURP 1KV 1A DO204AL |
4,345 |
|
Datasheet | - | DO-204AL, DO-41, Axial | Cut Tape (CT) | Active | Standard | 1000 V | 1A | 1.7 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 5 µA @ 1000 V | 10pF @ 4V, 1MHz | - | - | Through Hole | DO-204AL (DO-41) | -55°C ~ 150°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
