Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STTH8ST06DIDIODE GP 600V 8A TO220AC INS |
710 |
|
Datasheet | - | TO-220-2 Insulated, TO-220AC | Tube | Active | Standard | 600 V | 8A | 3.4 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 17 ns | 6 µA @ 600 V | - | - | - | Through Hole | TO-220AC ins | -40°C ~ 175°C |
|
STTH30RQ06DDIODE GEN PURP 600V 30A TO220AC |
419 |
|
Datasheet | ECOPACK® | TO-220-2 | Tube | Active | Standard | 600 V | 30A | 2.95 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 55 ns | 40 µA @ 600 V | - | - | - | Through Hole | TO-220AC | 175°C (Max) |
|
STPS20SM100STDIODE SCHOTTKY 100V 20A TO220 |
887 |
|
Datasheet | - | TO-220-3 | Tube | Active | Schottky | 100 V | 20A | 900 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 30 µA @ 100 V | - | - | - | Through Hole | TO-220 | 150°C (Max) |
|
|
STPSC6H065DDIODE SIL CARB 650V 6A TO220AC |
958 |
|
Datasheet | - | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 650 V | 6A | 1.75 V @ 6 A | No Recovery Time > 500mA (Io) | 0 ns | 60 µA @ 650 V | 300pF @ 0V, 1MHz | - | - | Through Hole | TO-220AC | -40°C ~ 175°C |
|
|
STTH12T06DIDIODE GP 600V 12A TO220AC INS |
548 |
|
Datasheet | - | TO-220-2 Insulated, TO-220AC | Tube | Active | Standard | 600 V | 12A | 2.95 V @ 12 A | Fast Recovery =< 500ns, > 200mA (Io) | 20 ns | 20 µA @ 600 V | - | - | - | Through Hole | TO-220AC ins | -40°C ~ 175°C |
|
|
STTH30RQ06DYDIODE GEN PURP 600V 30A TO220AC |
998 |
|
Datasheet | - | TO-220-2 | Tube | Active | Standard | 600 V | 30A | 2.95 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 55 ns | 40 µA @ 600 V | - | Automotive | AEC-Q101 | Through Hole | TO-220AC | -40°C ~ 175°C |
|

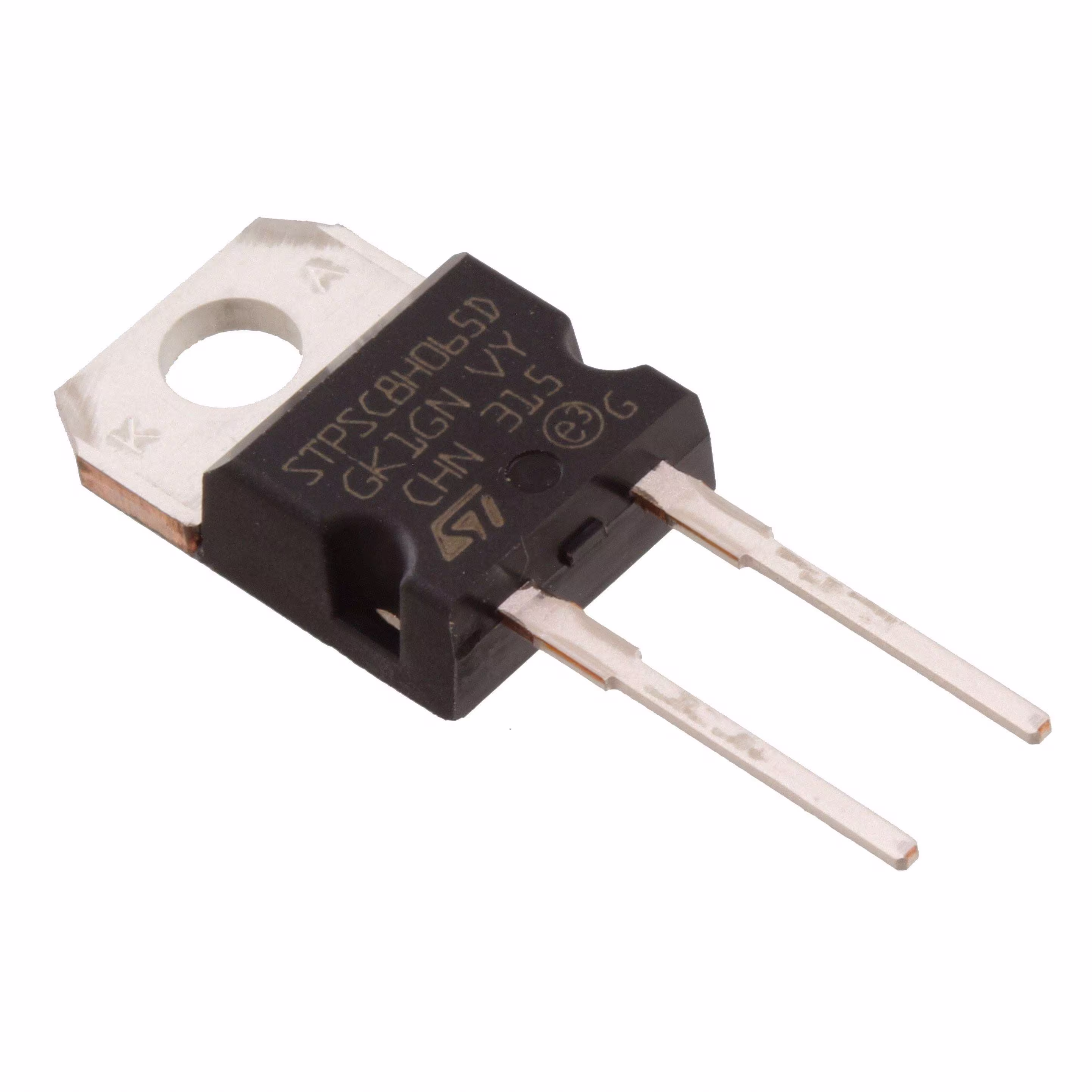

STPSC8H065DDIODE SIL CARB 650V 8A TO220AC |
794 |
|
Datasheet | - | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 650 V | 8A | 1.75 V @ 8 A | No Recovery Time > 500mA (Io) | 0 ns | 80 µA @ 650 V | 414pF @ 0V, 1MHz | - | - | Through Hole | TO-220AC | -40°C ~ 175°C |
|
STTH30M06SPFDIODE GEN PURP 600V 30A TO3PF |
876 |
|
Datasheet | - | TO-3P-3 Full Pack | Tube | Active | Standard | 600 V | 30A | 3.8 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 60 µA @ 600 V | - | - | - | Through Hole | TO-3PF | 175°C (Max) |
|
STTH30R04DYDIODE GEN PURP 400V 30A TO220AC |
772 |
|
Datasheet | - | TO-220-2 | Tube | Active | Standard | 400 V | 30A | 1.55 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 15 µA @ 400 V | - | Automotive | AEC-Q101 | Through Hole | TO-220AC | -40°C ~ 175°C |
;;2.jpg "STPSC8H065BY-TR")
|
STPSC8H065BY-TRDIODE SIL CARBIDE 650V 8A DPAK |
4,209 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | SiC (Silicon Carbide) Schottky | 650 V | 8A | - | No Recovery Time > 500mA (Io) | 0 ns | 80 µA @ 650 V | 414pF @ 0V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DPAK | -40°C ~ 175°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
