Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDUR6040WDIODE GEN PURP 400V 60A TO247AC |
71 |
|
Datasheet | - | TO-247-2 | Tube | Active | Standard | 400 V | 60A | 1.47 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 10 µA @ 400 V | - | - | - | Through Hole | TO-247AC | -55°C ~ 150°C |
|
|
SDUR60Q60WDIODE GEN PURP 600V 60A TO247AC |
115 |
|
Datasheet | - | TO-247-2 | Tube | Active | Standard | 600 V | 60A | 2.4 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 40 ns | 25 µA @ 600 V | - | - | - | Through Hole | TO-247AC | -55°C ~ 175°C |
|
S3D08065IDIODE SIL CARB 650V 27A TO220 |
210 |
|
Datasheet | - | TO-220-2 Isolated Tab | Tube | Active | SiC (Silicon Carbide) Schottky | 650 V | 27A | 1.7 V @ 8 A | No Recovery Time > 500mA (Io) | 0 ns | 10 µA @ 650 V | 650pF @ 0V, 1MHz | - | - | Through Hole | TO-220-Isolation | -55°C ~ 175°C |
|
|
S3D08065EDIODE SIL CARBIDE 650V 23A DPAK |
100 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | SiC (Silicon Carbide) Schottky | 650 V | 23A | 1.8 V @ 8 A | No Recovery Time > 500mA (Io) | 0 ns | 51 µA @ 650 V | 661pF @ 0V, 1MHz | - | - | Surface Mount | DPAK | -55°C ~ 175°C |
|
|
S4D08120ADIODE SIL CARB 1.2KV 8A TO220AC |
74 |
|
Datasheet | - | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 8A | 1.8 V @ 8 A | No Recovery Time > 500mA (Io) | 0 ns | 15 µA @ 1200 V | 560pF @ 0V, 1MHz | - | - | Through Hole | TO-220AC (TO-220-2) | -55°C ~ 175°C |
|
|
S3D20065D1DIODE SIL CARB 650V 20A TO247AD |
50 |
|
Datasheet | - | TO-247-3 | Tube | Active | SiC (Silicon Carbide) Schottky | 650 V | 20A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 60 µA @ 650 V | 1190pF @ 0V, 1MHz | - | - | Through Hole | TO-247AD | -55°C ~ 175°C |
|
|
121SPC060ADIODE SCHOTTKY 60V 120A SPD-3A |
80 |
|
Datasheet | - | Nonstandard SMD | Box | Active | Schottky | 60 V | 120A | 540 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 60 V | 4800pF @ 5V, 1MHz | - | - | Surface Mount | SPD-3A | -55°C ~ 175°C |
.jpg "240NQ045-1")
|
240NQ045-1DIODE SCHOTTKY 45V PRM1-1 |
27 |
|
Datasheet | - | HALF-PAK | Bulk | Active | Schottky | 45 V | - | 610 mV @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 45 V | 10300pF @ 5V, 1MHz | - | - | Chassis Mount | PRM1-1 (Half Pak Module) | -55°C ~ 150°C |
|
|
243NQ100-1DIODE SCHOTTKY 100V PRM1-1 |
8 |
|
Datasheet | - | HALF-PAK | Bulk | Active | Schottky | 100 V | - | 860 mV @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 100 V | 5500pF @ 5V, 1MHz | - | - | Chassis Mount | PRM1-1 (Half Pak Module) | -55°C ~ 175°C |
|

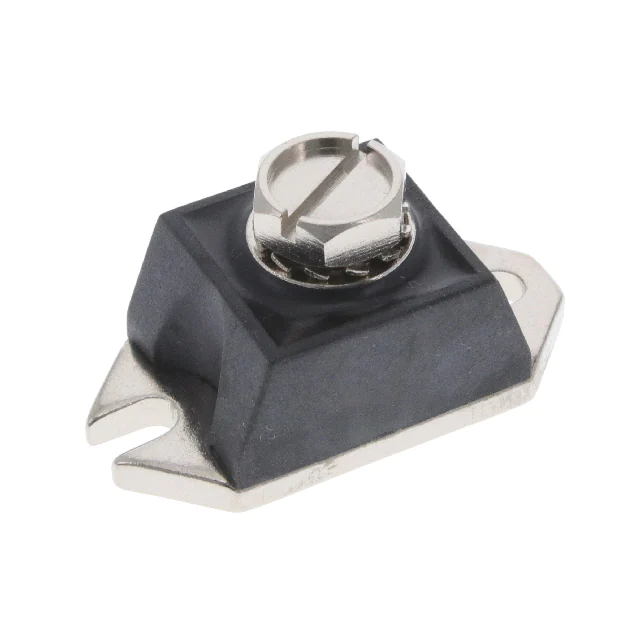

182NQ030R-1DIODE SCHOTTKY 30V 180A PRM1-1 |
44 |
|
Datasheet | - | HALF-PAK | Box | Active | Schottky | 30 V | 180A | 510 mV @ 180 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 15 mA @ 30 V | 7000pF @ 5V, 1MHz | - | - | Chassis Mount | PRM1-1 (Half Pak Module) | -55°C ~ 150°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
