Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R9G00418XXDIODE GP 400V 1800A DO200AB |
2,037 |
|
Datasheet | - | DO-200AB, B-PUK | Bulk | Discontinued at Digi-Key | Standard | 400 V | 1800A | 1.2 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | 25 µs | 150 mA @ 400 V | - | - | - | Clamp On | DO-200AB, B-PUK | - |
|
LS412260DIODE GP 2.2KV 600A POW-R-BLOK |
3,655 |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Standard | 2200 V | 600A | 1.19 V @ 1800 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 2200 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module | - |
|
|
LS411860DIODE GP 1.8KV 600A POW-R-BLOK |
9,121 |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Standard | 1800 V | 600A | 1.19 V @ 1800 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 1800 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module | - |
|
|
QRS1240T30DIODE GEN PURP 1.2KV 263A MODULE |
5,323 |
|
Datasheet | - | Module | Bulk | Obsolete | Standard | 1200 V | 263A | 3.5 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 1 mA @ 1200 V | - | - | - | Chassis Mount | Module | - |
|
|
LS412460DIODE GP 2.4KV 600A POW-R-BLOK |
5,721 |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Standard | 2400 V | 600A | 1.19 V @ 1800 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 2400 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module | - |
|
|
R9G00422XXDIODE GP 400V 2200A DO200AB |
6,337 |
|
Datasheet | - | DO-200AB, B-PUK | Bulk | Discontinued at Digi-Key | Standard | 400 V | 2200A | 1.1 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | 15 µs | 150 mA @ 400 V | - | - | - | Clamp On | DO-200AB, B-PUK | - |
|
|
R7014003XXUADIODE GP REV 4KV 300A DO200AA |
3,467 |
|
Datasheet | - | DO-200AA, A-PUK | Bulk | Discontinued at Digi-Key | Standard, Reverse Polarity | 4000 V | 300A | 2.15 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | 9 µs | 50 mA @ 4000 V | - | - | - | Chassis, Stud Mount | DO-200AA, R62 | -65°C ~ 200°C |
|

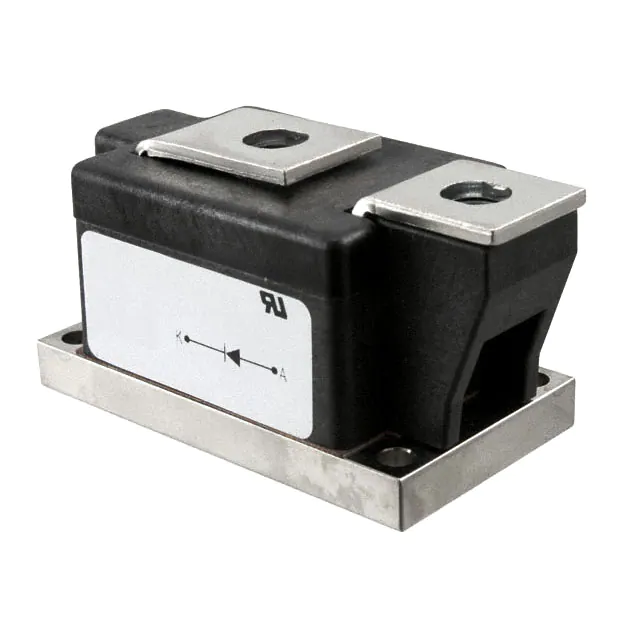

LS410860DIODE GP 800V 600A POW-R-BLOK |
6,591 |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Active | Standard | 800 V | 600A | 1.19 V @ 1800 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 800 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module | - |
|
|
R6012225XXYADIODE GP REV 2.2KV 250A DO205AB |
2,924 |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Discontinued at Digi-Key | Standard, Reverse Polarity | 2200 V | 250A | 1.5 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | 11 µs | 50 mA @ 2200 V | - | - | - | Chassis, Stud Mount | DO-205AB (DO-9) | -65°C ~ 175°C |
|
|
R9G00622XXDIODE GP 600V 2200A DO200AB |
6,899 |
|
Datasheet | - | DO-200AB, B-PUK | Bulk | Discontinued at Digi-Key | Standard | 600 V | 2200A | 1.1 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | 15 µs | 150 mA @ 600 V | - | - | - | Clamp On | DO-200AB, B-PUK | - |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
