Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R6002625XXYADIODE GP 2.6KV 250A DO205AB DO9 |
3,737 |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Discontinued at Digi-Key | Standard | 2600 V | 250A | 1.5 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | 11 µs | 50 mA @ 2600 V | - | - | - | Chassis, Stud Mount | DO-205AB (DO-9) | -65°C ~ 175°C |
|
|
R6012625XXYADIODE GP REV 2.6KV 250A DO205AB |
8,366 |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Discontinued at Digi-Key | Standard, Reverse Polarity | 2600 V | 250A | 1.5 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | 11 µs | 50 mA @ 2600 V | - | - | - | Chassis, Stud Mount | DO-205AB (DO-9) | -65°C ~ 175°C |
|

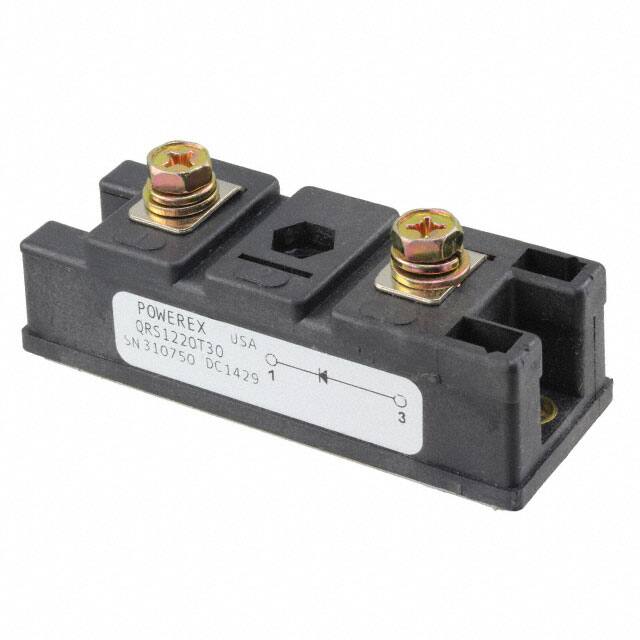

QRS1220T30DIODE GEN PURP 1.2KV 127A MODULE |
4,114 |
|
Datasheet | - | Module | Bulk | Obsolete | Standard | 1200 V | 127A | 3.5 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 1 mA @ 1200 V | - | - | - | Chassis Mount | Module | - |
|
|
R7S01416XXDIODE GP 1.4KV 2020A HOCKEY PUCK |
5,927 |
|
Datasheet | - | DO-200AA, A-PUK | Bulk | Discontinued at Digi-Key | Standard | 1400 V | 2020A | - | Standard Recovery >500ns, > 200mA (Io) | 7 µs | 50 mA @ 1400 V | - | - | - | Clamp On | Hockey Puck | -65°C ~ 200°C |
|
|
QRS4506002DIODE GEN PURP 4.5KV 60A 3SMD |
3,019 |
|
Datasheet | - | 3-SMD Module | Bulk | Obsolete | Standard | 4500 V | 60A | 6.2 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 230 ns | 1 mA @ 4500 V | - | - | - | Surface Mount | - | -55°C ~ 150°C |
|
|
A190PEDIODE GEN PURP 1.5KV 250A DO205 |
9,643 |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Discontinued at Digi-Key | Standard | 1500 V | 250A | 1.3 V @ 250 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | - | -40°C ~ 200°C |
|
|
QRS4506001DIODE GEN PURP 4.5KV 60A |
9,580 |
|
Datasheet | - | 3-FLATLEAD | Bulk | Discontinued at Digi-Key | Standard | 4500 V | 60A | 6.2 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 230 ns | 1 mA @ 4500 V | - | - | - | Chassis Mount | - | -55°C ~ 150°C |
|
|
A397PBDIODE GEN PURP 1.2KV 400A DO200 |
5,238 |
|
Datasheet | - | DO-200AA, A-PUK | Bulk | Discontinued at Digi-Key | Standard | 1200 V | 400A | - | Fast Recovery =< 500ns, > 200mA (Io) | - | - | - | - | - | Clamp On | - | -40°C ~ 125°C |
|
|
R7S01616XXDIODE GP 1.6KV 2020A HOCKEY PUCK |
8,003 |
|
Datasheet | - | DO-200AA, A-PUK | Bulk | Discontinued at Digi-Key | Standard | 1600 V | 2020A | - | Standard Recovery >500ns, > 200mA (Io) | 7 µs | 50 mA @ 1600 V | - | - | - | Clamp On | Hockey Puck | -65°C ~ 200°C |
|
|
QRS0640T30DIODE GEN PURP 600V 195A MODULE |
3,345 |
|
Datasheet | - | Module | Bulk | Obsolete | Standard | 600 V | 195A | 2.8 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 110 ns | 1 mA @ 600 V | - | - | - | Chassis Mount | Module | - |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
