Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MUR860DIODE SUPERFST TO220AC 600V 50NS |
4,430 |
|
Datasheet | SWITCHMODE™ | TO-220-2 | Tube | Obsolete | Standard | 600 V | 8A | 1.5 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 10 µA @ 600 V | - | - | - | Through Hole | TO-220-2 | -65°C ~ 175°C |
|

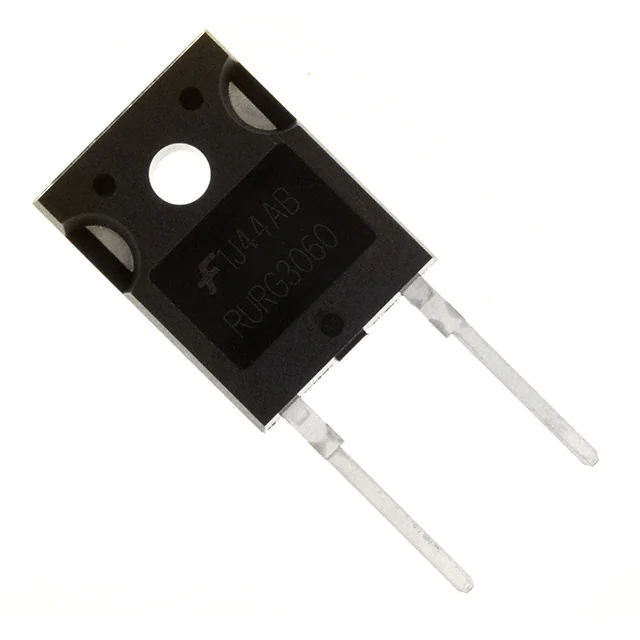

RURG3060DIODE GEN PURP 600V 30A TO247-2 |
3,053 |
|
Datasheet | - | TO-247-2 | Tube | Obsolete | Avalanche | 600 V | 30A | 1.5 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 250 µA @ 600 V | - | - | - | Through Hole | TO-247-2 | -65°C ~ 175°C |
|
RURG5060DIODE GEN PURP 600V 50A TO247-2 |
7,975 |
|
Datasheet | - | TO-247-2 | Tube | Obsolete | Avalanche | 600 V | 50A | 1.6 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 250 µA @ 600 V | - | - | - | Through Hole | TO-247-2 | -65°C ~ 175°C |
|
RURG8060DIODE GEN PURP 600V 80A TO247-2 |
4,716 |
|
Datasheet | - | TO-247-2 | Tube | Obsolete | Avalanche | 600 V | 80A | 1.6 V @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | 85 ns | 250 µA @ 600 V | - | - | - | Through Hole | TO-247-2 | -65°C ~ 175°C |
|
RURP1560DIODE GEN PURP 600V 15A TO220-2 |
5,658 |
|
Datasheet | - | TO-220-2 | Tube | Obsolete | Standard | 600 V | 15A | 1.5 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 100 µA @ 600 V | - | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
|
|
RURP8100DIODE GEN PURP 1KV 8A TO220-2 |
4,140 |
|
Datasheet | - | TO-220-2 | Tube | Obsolete | Standard | 1000 V | 8A | 1.8 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 100 µA @ 1000 V | - | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
|
RURP860DIODE GEN PURP 600V 8A TO220-2 |
9,727 |
|
Datasheet | - | TO-220-2 | Tube | Obsolete | Standard | 600 V | 8A | 1.5 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 70 ns | 100 µA @ 600 V | - | - | - | Through Hole | TO-220-2 | -65°C ~ 175°C |
|
|
ISL9R8120P2DIODE GEN PURP 1.2KV 8A TO220-2L |
7,340 |
|
Datasheet | Stealth™ | TO-220-2 | Tube | Obsolete | Avalanche | 1200 V | 8A | 3.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 100 µA @ 1200 V | 30pF @ 10V, 1MHz | - | - | Through Hole | TO-220-2L | -55°C ~ 150°C |
|
1N4001RLDIODE GEN PURP 50V 1A AXIAL |
2,335 |
|
Datasheet | - | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Obsolete | Standard | 50 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 50 V | - | - | - | Through Hole | Axial | -65°C ~ 175°C |
|
|
1N5819RLDIODE SCHOTTKY 40V 1A AXIAL |
3,656 |
|
Datasheet | - | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Obsolete | Schottky | 40 V | 1A | 600 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 40 V | - | - | - | Through Hole | Axial | -65°C ~ 125°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
