Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N6642USDIODE GEN PURP 75V 300MA D-5D |
1,066 |
|
Datasheet | - | SQ-MELF, D | Bulk | Active | Standard | 75 V | 300mA | 1.2 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 500 nA @ 75 V | 5pF @ 0V, 1MHz | - | - | Surface Mount | D-5D | -65°C ~ 175°C |
|
|
CDLL5819/TRDIODE SCHOTTKY 45V 1A DO213AA |
256 |
|
Datasheet | - | DO-213AA | Tape & Reel (TR) | Active | Schottky | 45 V | 1A | 490 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 45 V | 70pF @ 5V, 1MHz | - | - | Surface Mount | DO-213AA | -65°C ~ 125°C |
|
|
1N5418DIODE GEN PURP 400V 3A B SQ-MELF |
384 |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 400 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 400 V | - | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
1N5809DIODE GEN PURP 100V 3A AXIAL |
210 |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 100 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 100 V | 60pF @ 10V, 1MHz | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
|
JANTX1N5711-1DIODE SCHOTTKY 70V 33MA DO35 |
132 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Schottky | 70 V | 33mA | 410 mV @ 1 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 50 V | 2pF @ 0V, 1MHz | Military | MIL-PRF-19500/444 | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|
|
1N5811USDIODE GEN PURP 150V 3A B SQ-MELF |
815 |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 150 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 50 V | 60pF @ 10V, 1MHz | - | - | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|
|
1N6638USDIODE GEN PURP 125V 300MA D-5D |
541 |
|
Datasheet | - | SQ-MELF, D | Bulk | Active | Standard | 125 V | 300mA | 1.1 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4.5 ns | 500 nA @ 125 V | 2.5pF @ 0V, 1MHz | - | - | Surface Mount | D-5D | -65°C ~ 175°C |
|

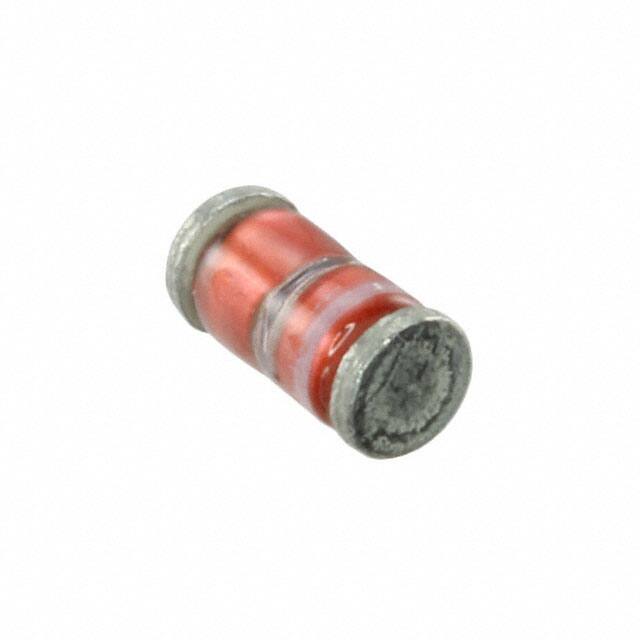

JAN1N5819UR-1DIODE SCHOTTKY 45V 1A DO213AB |
175 |
|
Datasheet | - | DO-213AB, MELF (Glass) | Bulk | Active | Schottky | 45 V | 1A | 490 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 45 V | 70pF @ 5V, 1MHz | Military | MIL-PRF-19500/586 | Surface Mount | DO-213AB (MELF, LL41) | -65°C ~ 125°C |
|
|
1N5809USDIODE GEN PURP 100V 3A B SQ-MELF |
629 |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 100 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 100 V | 60pF @ 10V, 1MHz | - | - | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|
|
JANTX1N5811USDIODE GEN PURP 150V 3A B SQ-MELF |
116 |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 150 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 150 V | 60pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
